Home
>>
Dodge
>>
1992
>>
Shadow L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Technical Service Bulletins
>>
All Technical Service Bulletins
>>
Wiring - Diagram Supplements
>>
Transmission Control System (3.0L Engine Only)
Transmission Control System (3.0L Engine Only)

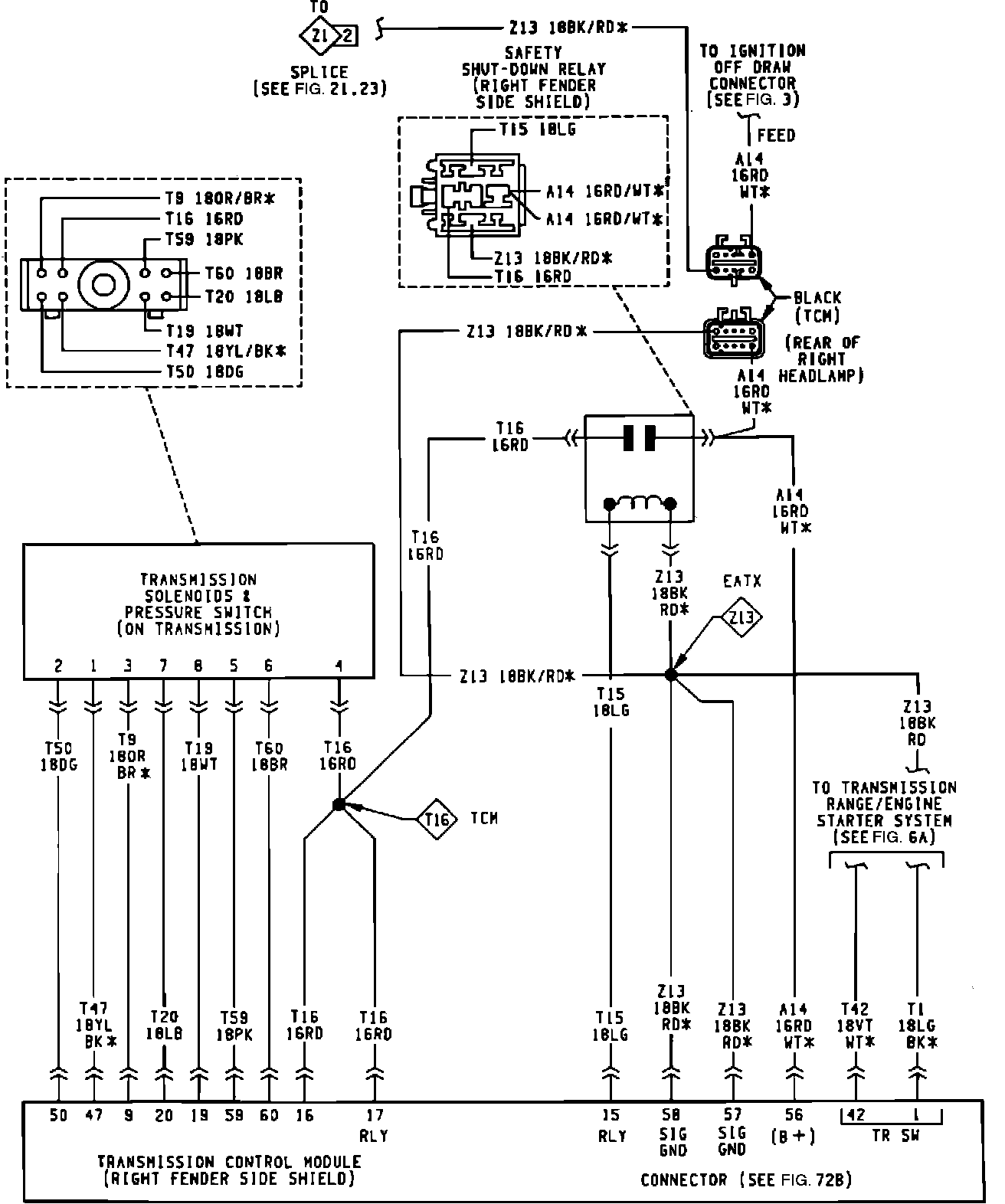

Transaxle Control System:

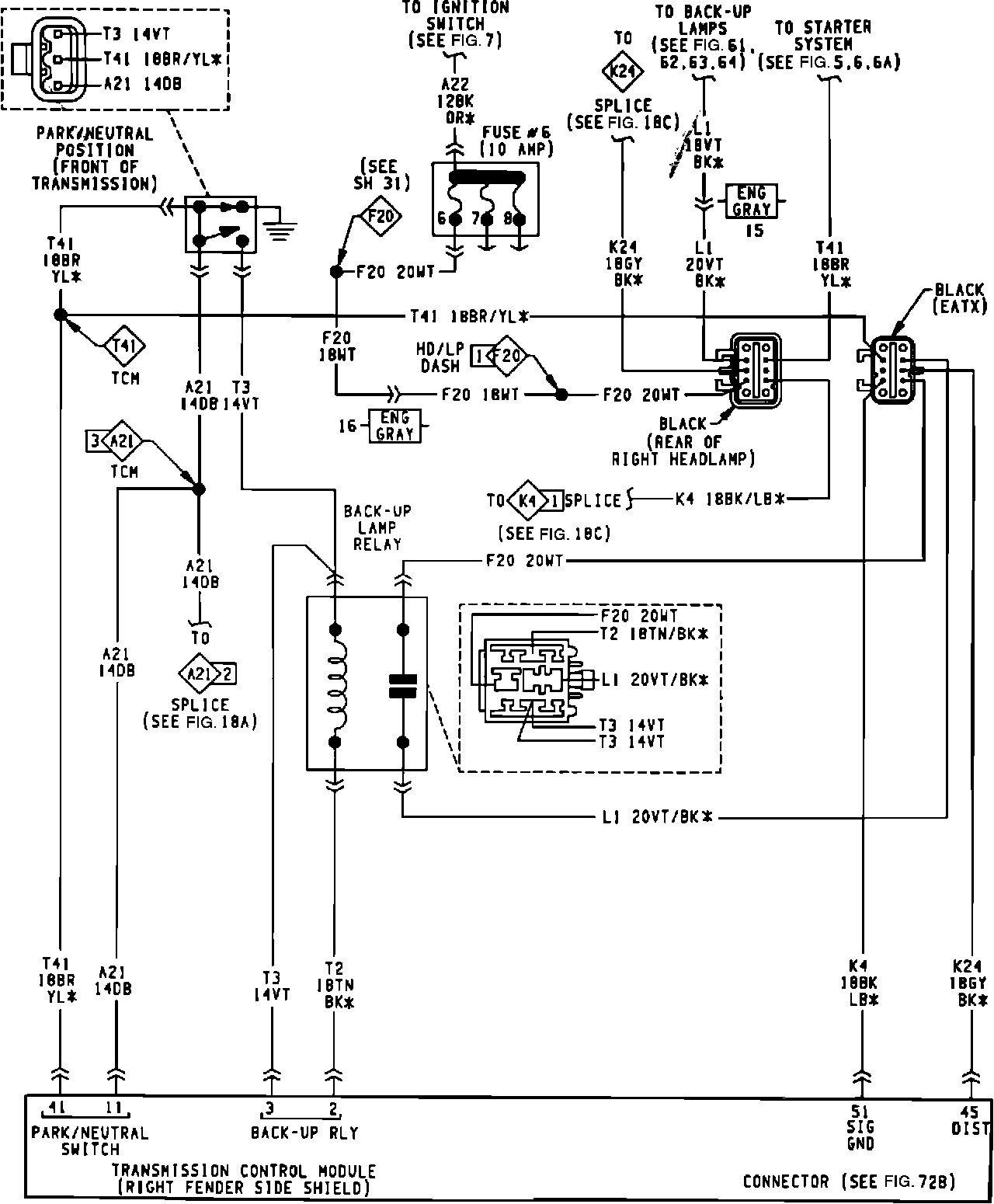

Transaxle Control System:

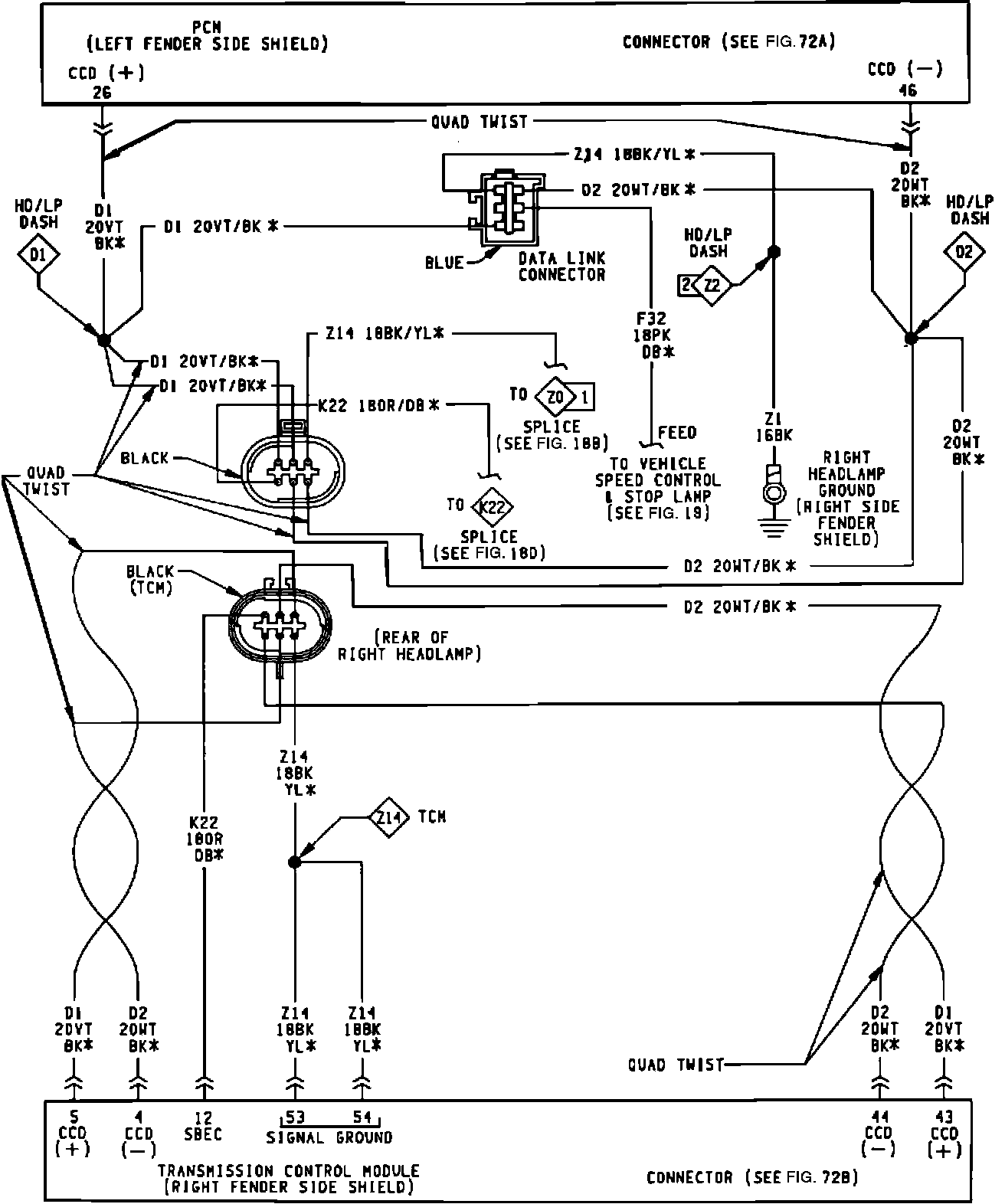

Transaxle Control System:

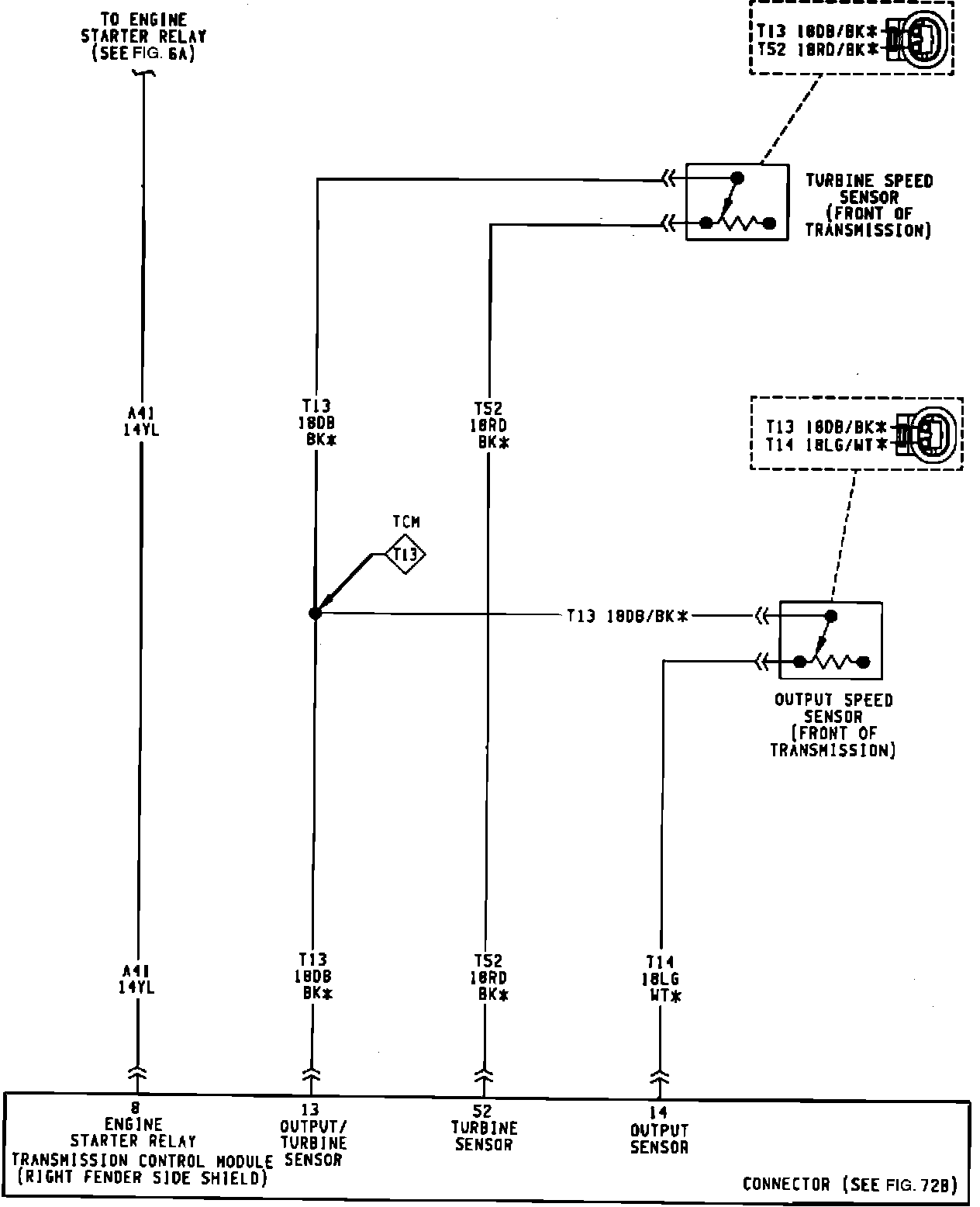

Transaxle Control System:
