Wiring - Diagram Supplements
>>
Radiator Fan System With A/C and Heater System
Radiator Fan System With A/C and Heater System

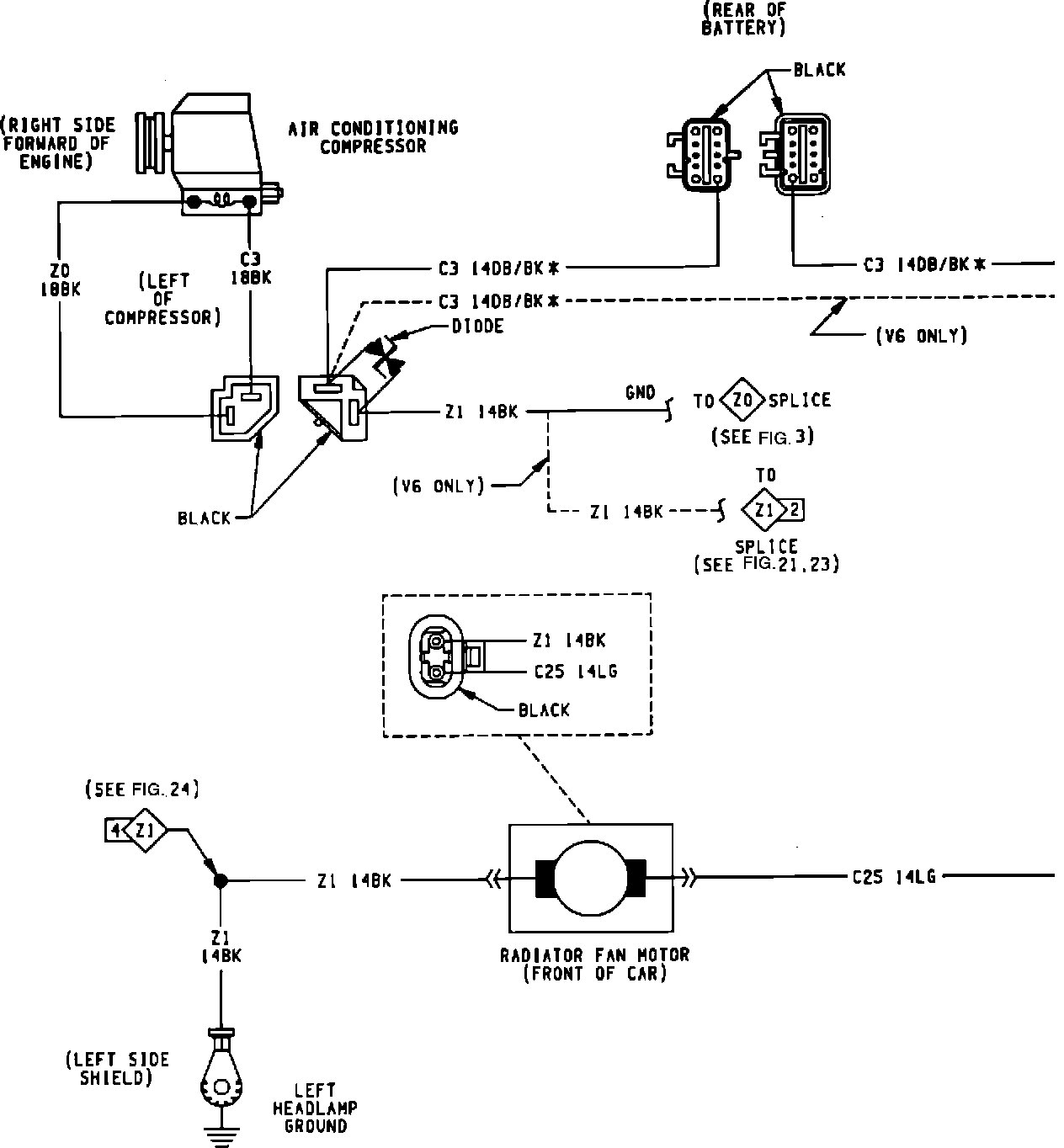

With A/C:

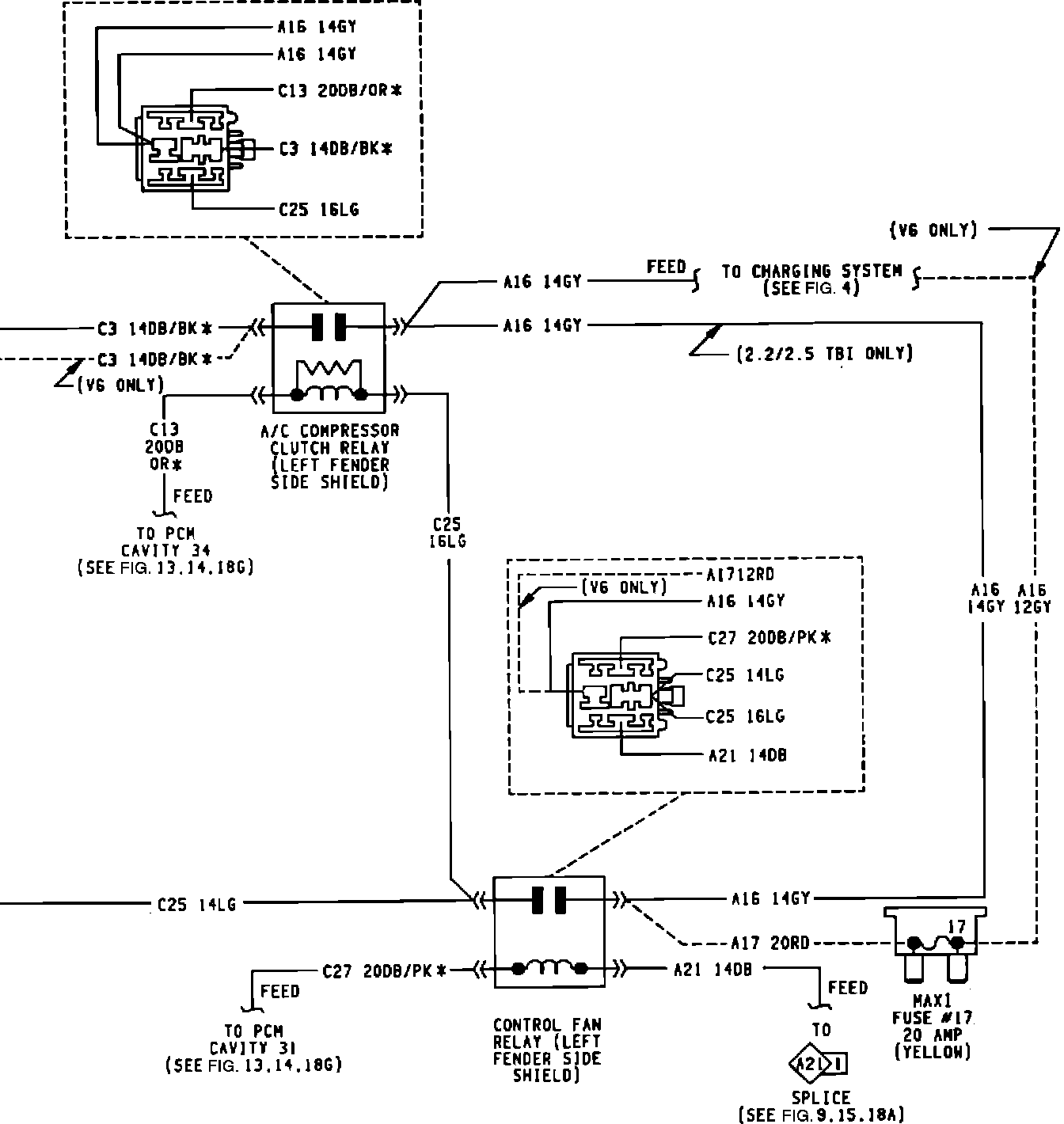

With A/C:
