Powertrain Control Module Connector
Powertrain Control Module Connector

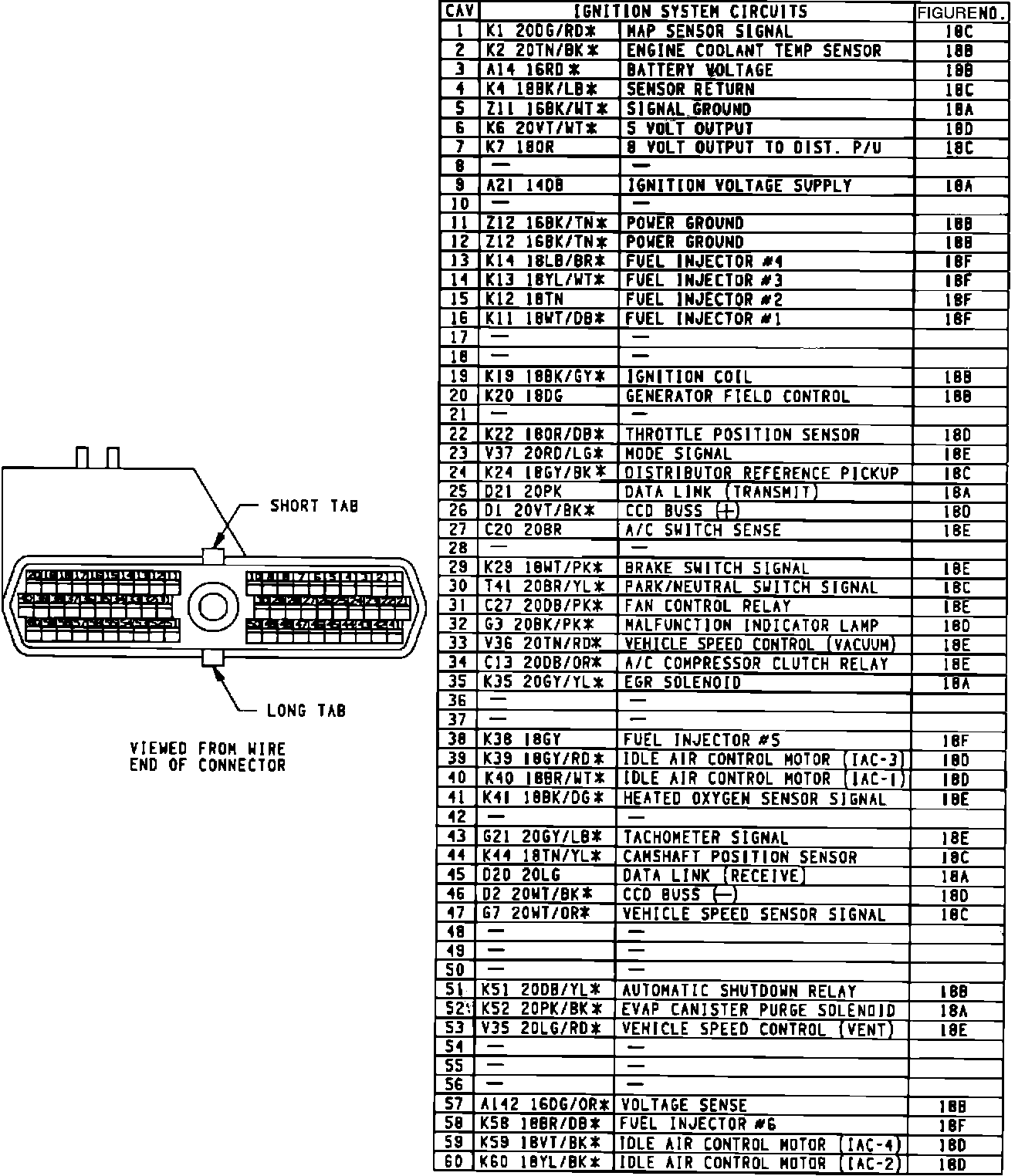

Powertrain Control Module Connector:
