Fuel Injection - Ignition System (V6 3.0L Engine)

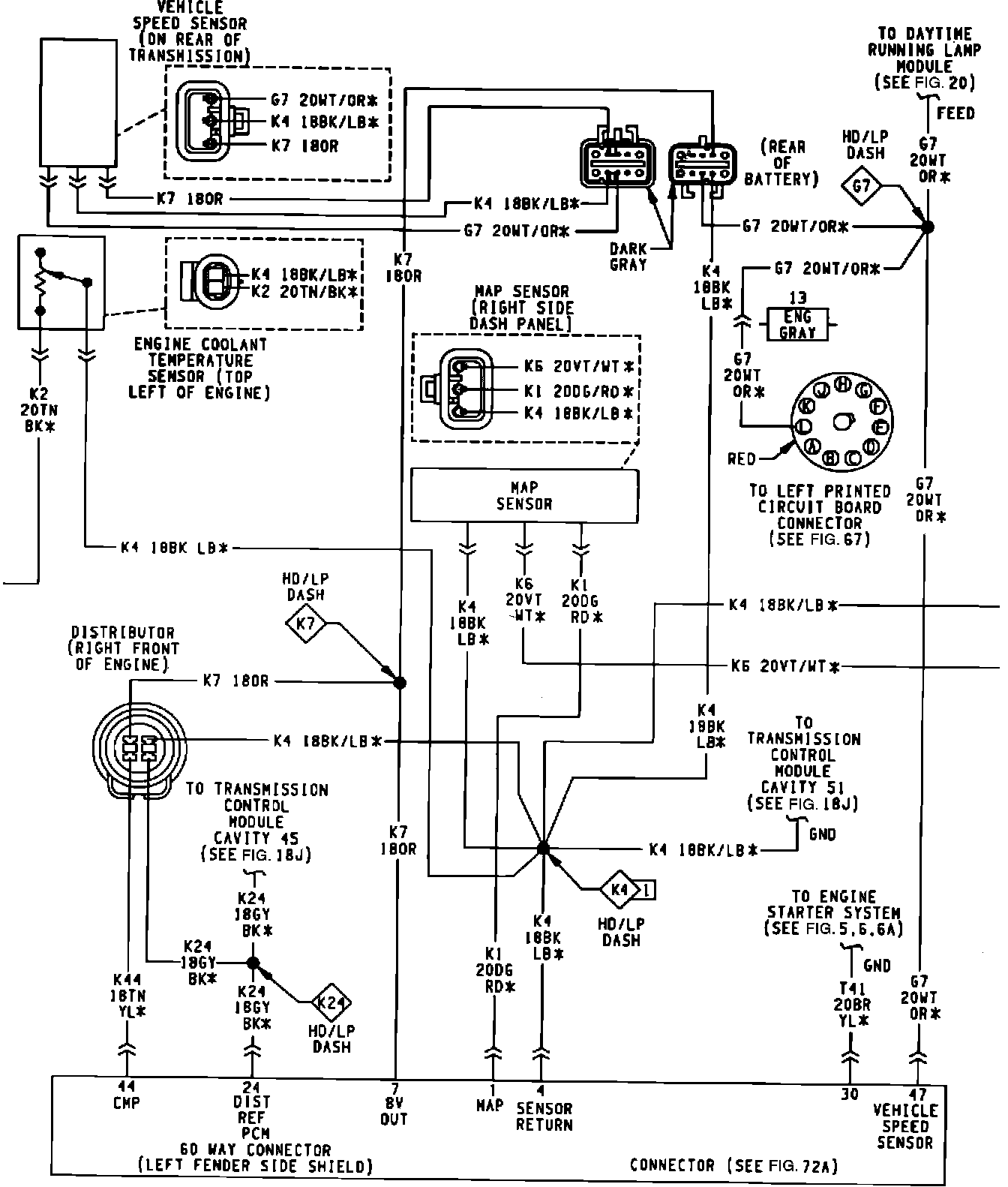

Fuel Injection And Ignition System:

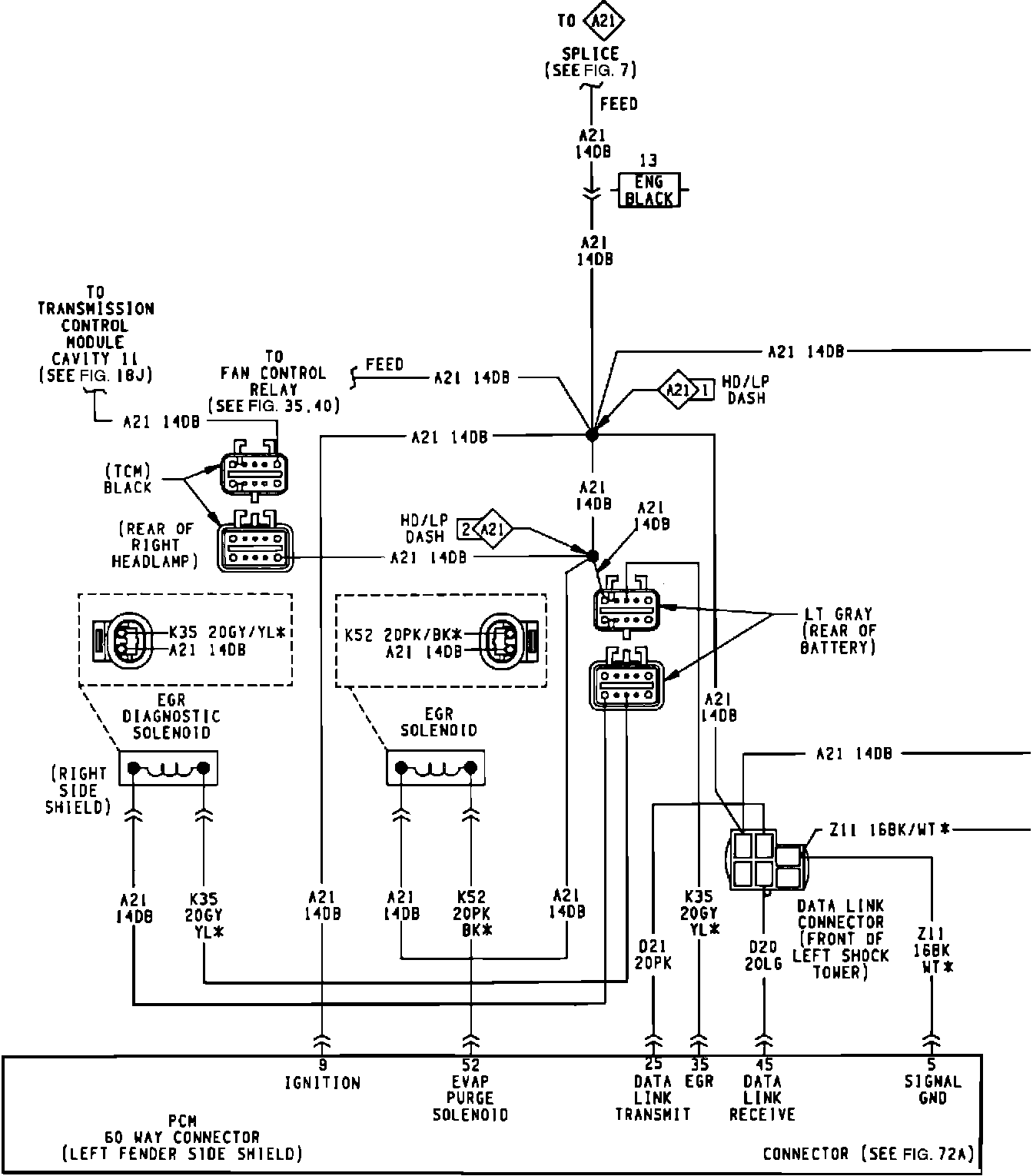

Fuel Injection And Ignition System:

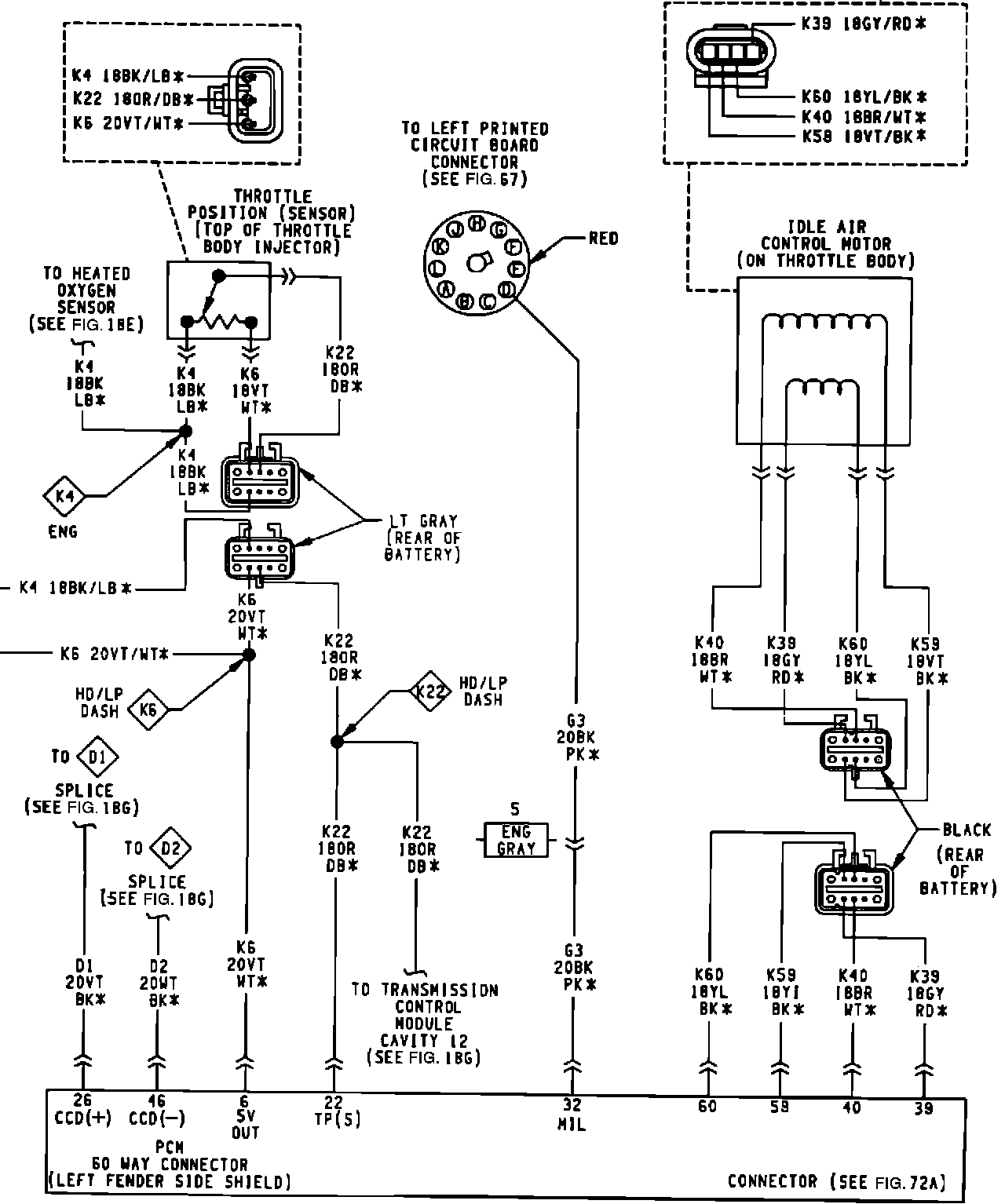

Fuel Injection And Ignition System:

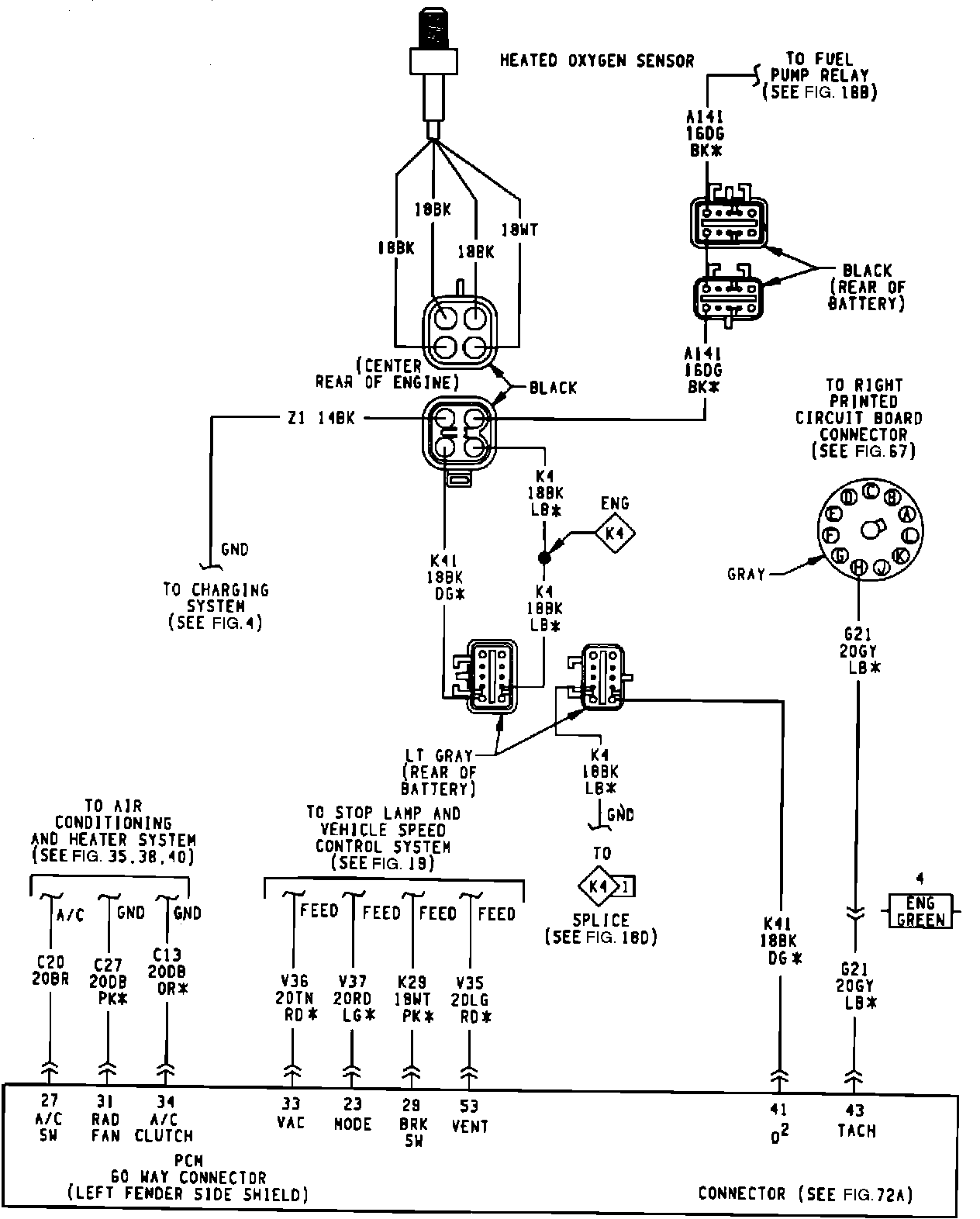

Fuel Injection And Ignition System:

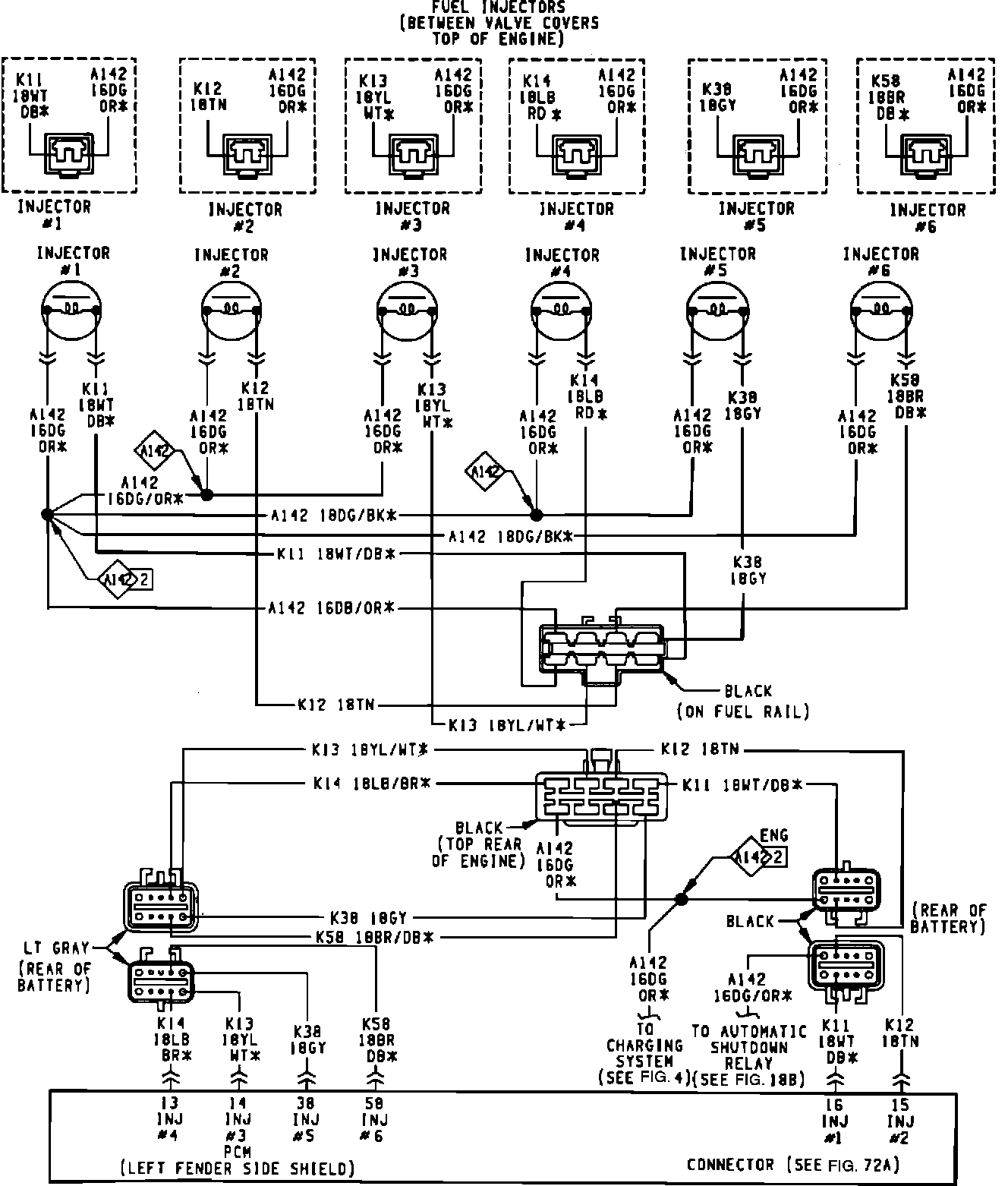

Fuel Injection And Ignition System:

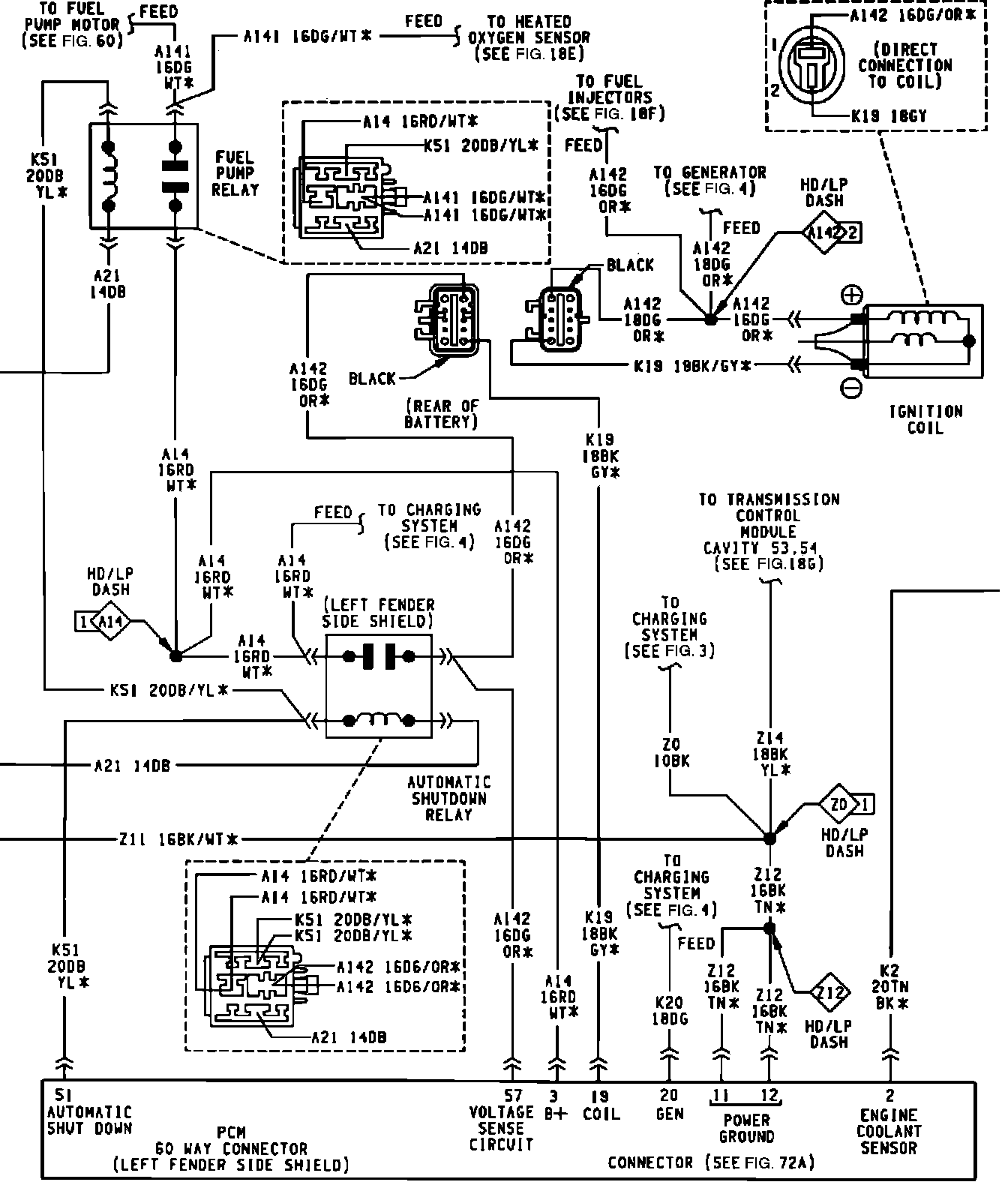

Fuel Injection And Ignition System:
