Home >> Dodge >> 1992 >> Shadow Convertible L4-135 2.2L SOHC VIN D FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Air Bag Control Module (ACM)

Air Bag Control Module (ACM)

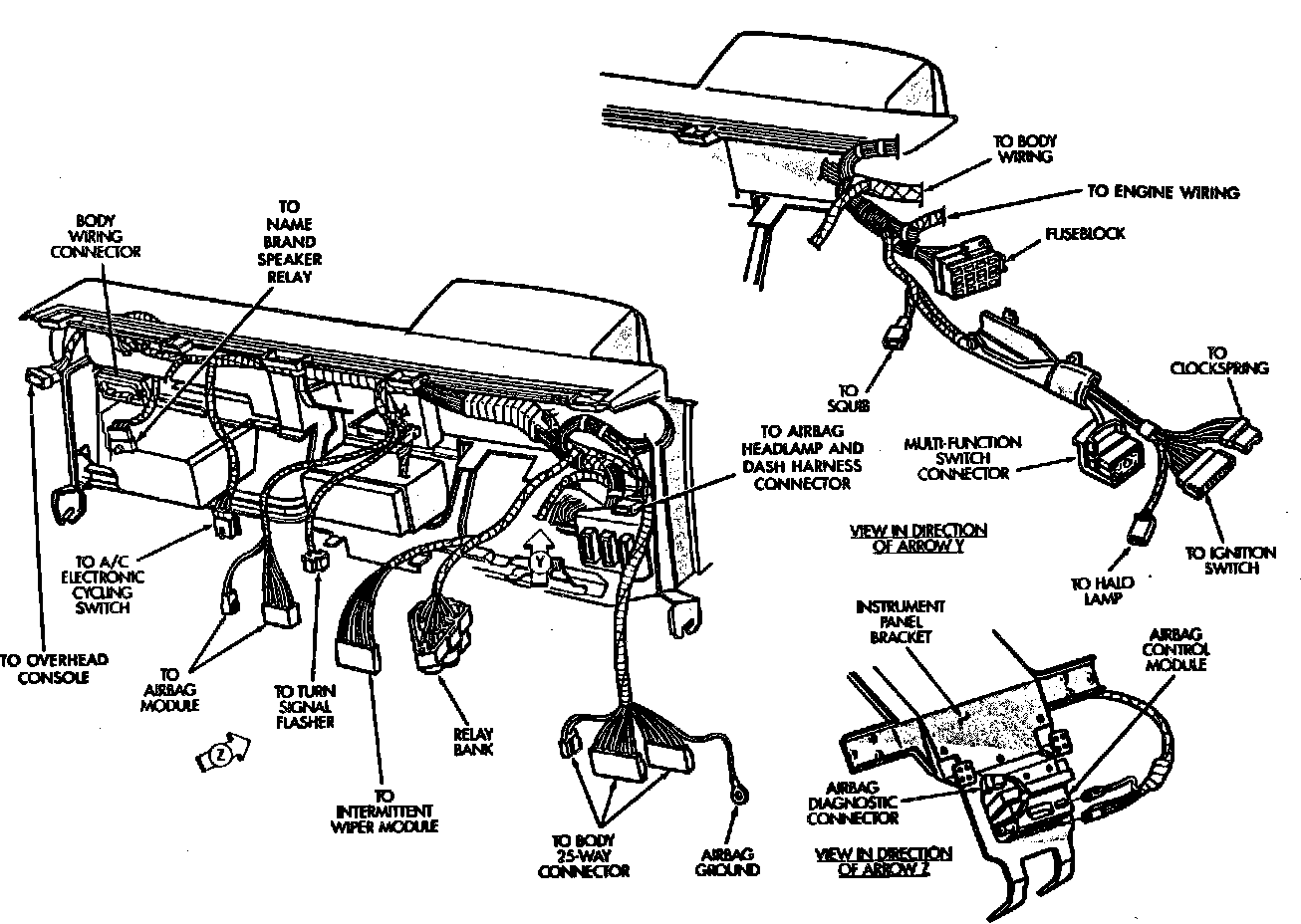

Instrument Panel & Steering Column Components & Connectors:




Behind Center Of I/P, On Bracket
