Shadow Convertible L4-135 2.2L SOHC VIN D FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-7B Fuel Pump Inspection
NS-7B Fuel Pump Inspection

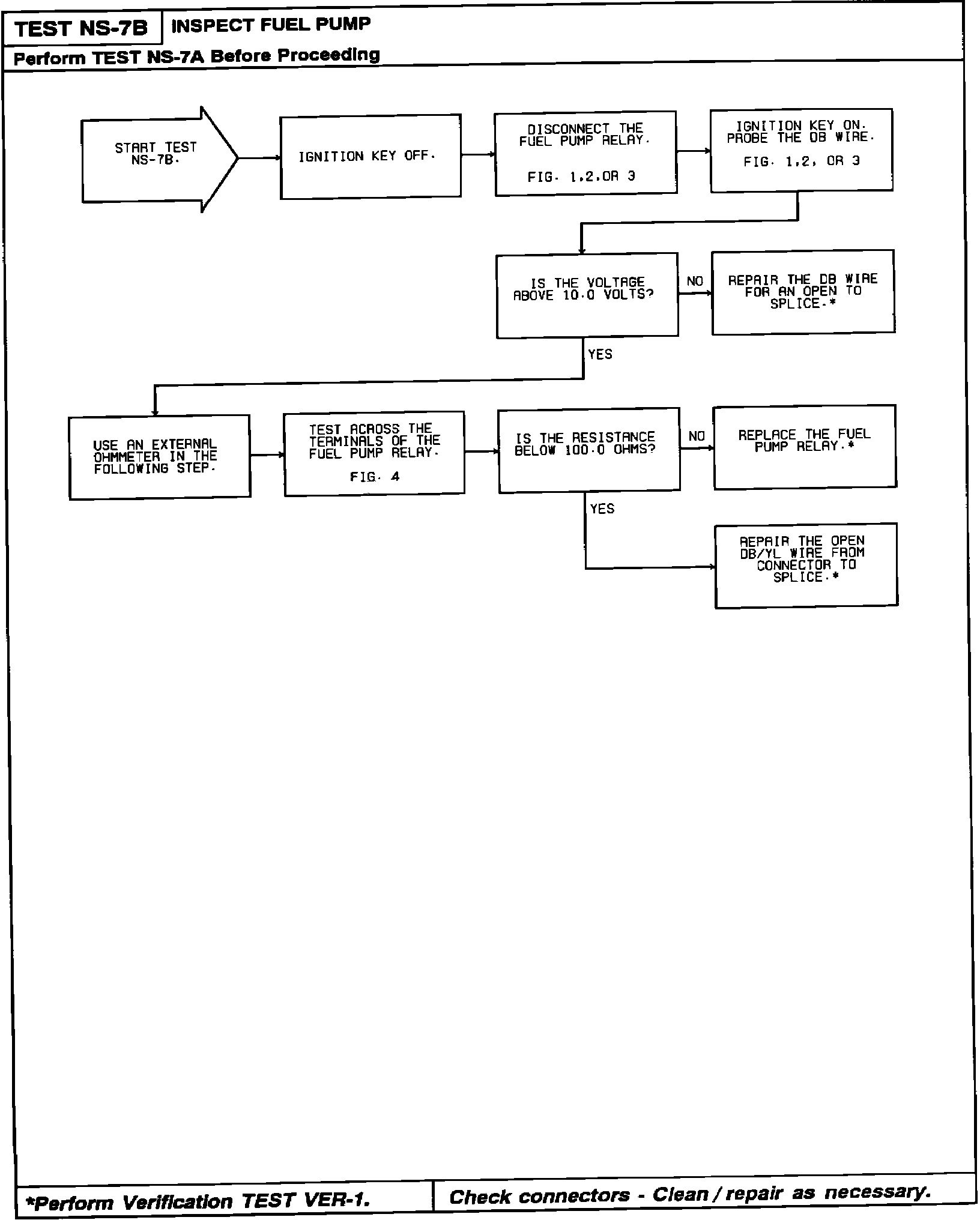

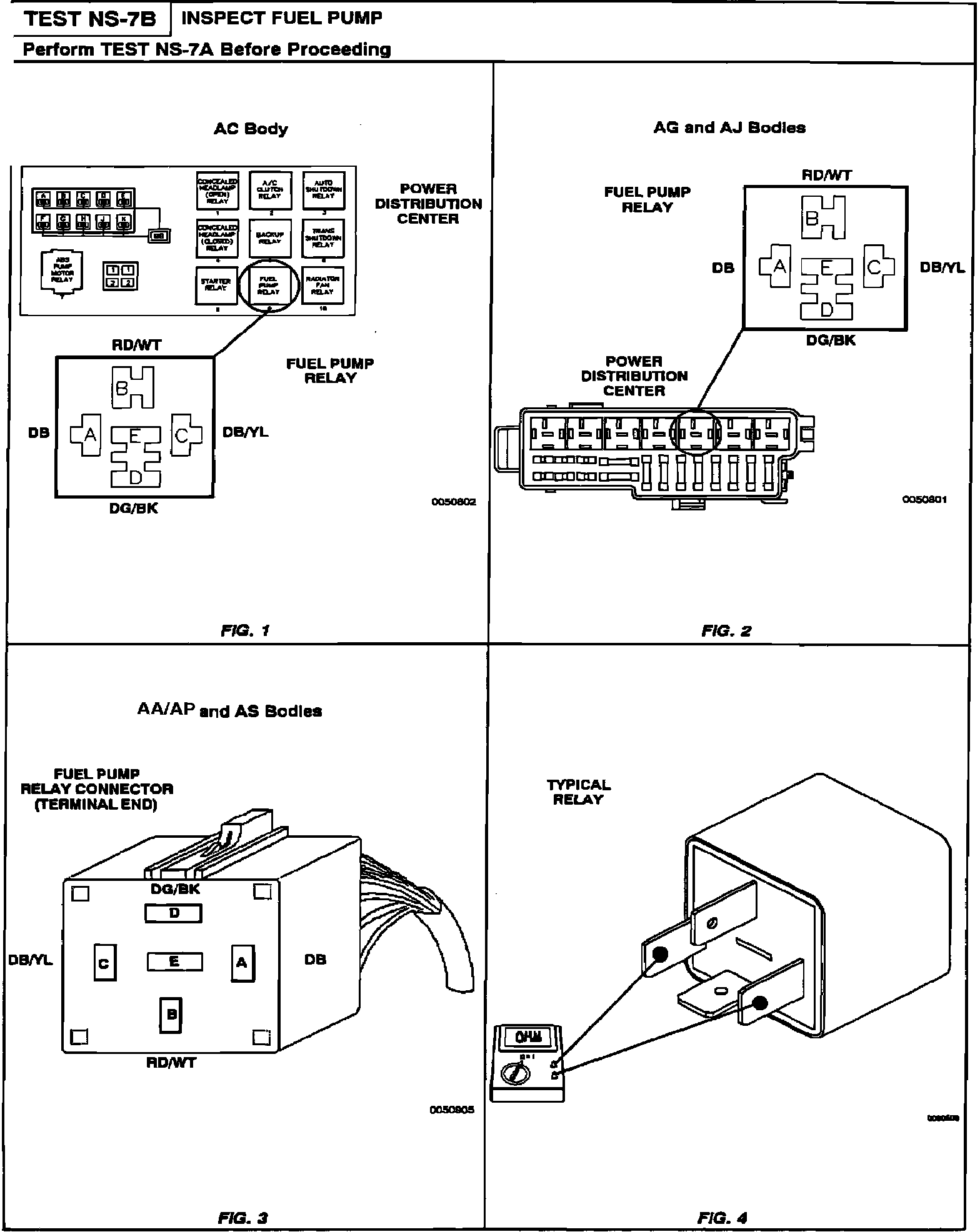

Inspecting Fuel Pump:
Inspecting Fuel Pump:
