No Start (NS) Tests
>>
NS-4A Correcting Fuel Delivery
NS-4A Correcting Fuel Delivery

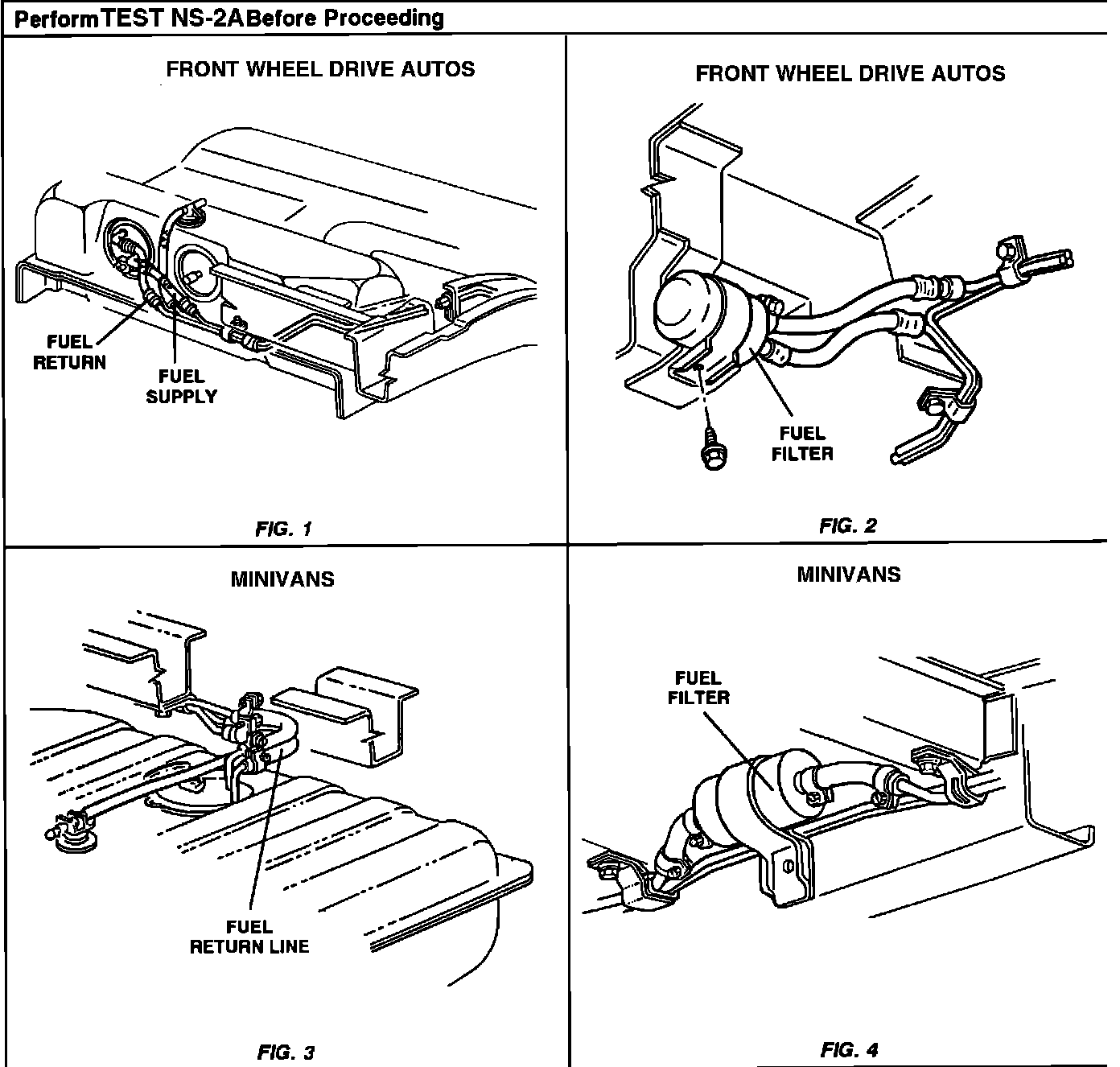

Checking Fuel Filter, Pump, Pressure Regulator, And Power Feed To Fuel Pump:

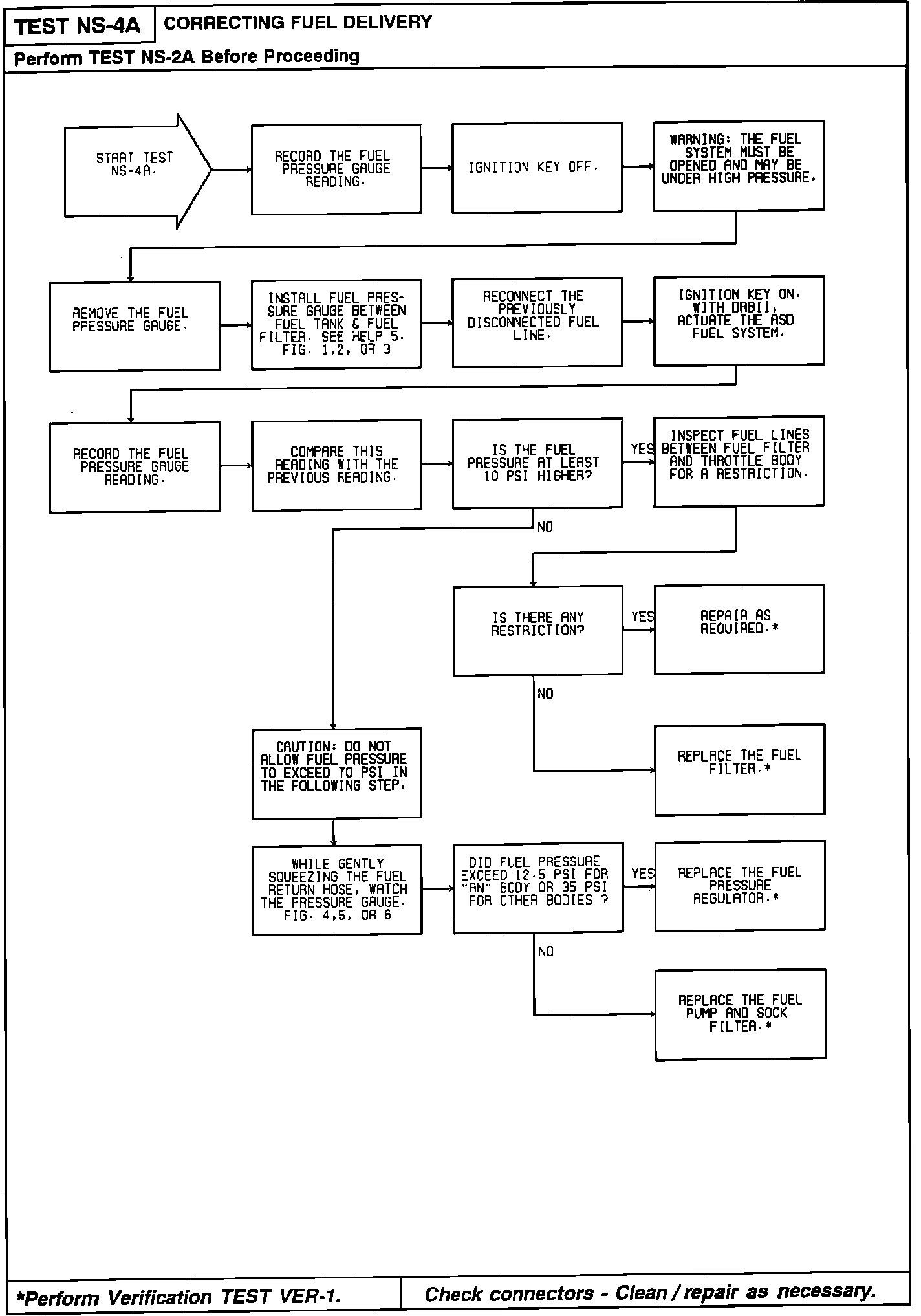

Test NS-4A Correcting Fuel Delivery:
