No Start (NS) Tests
>>
NS-2A Checking Fuel System
NS-2A Checking Fuel System

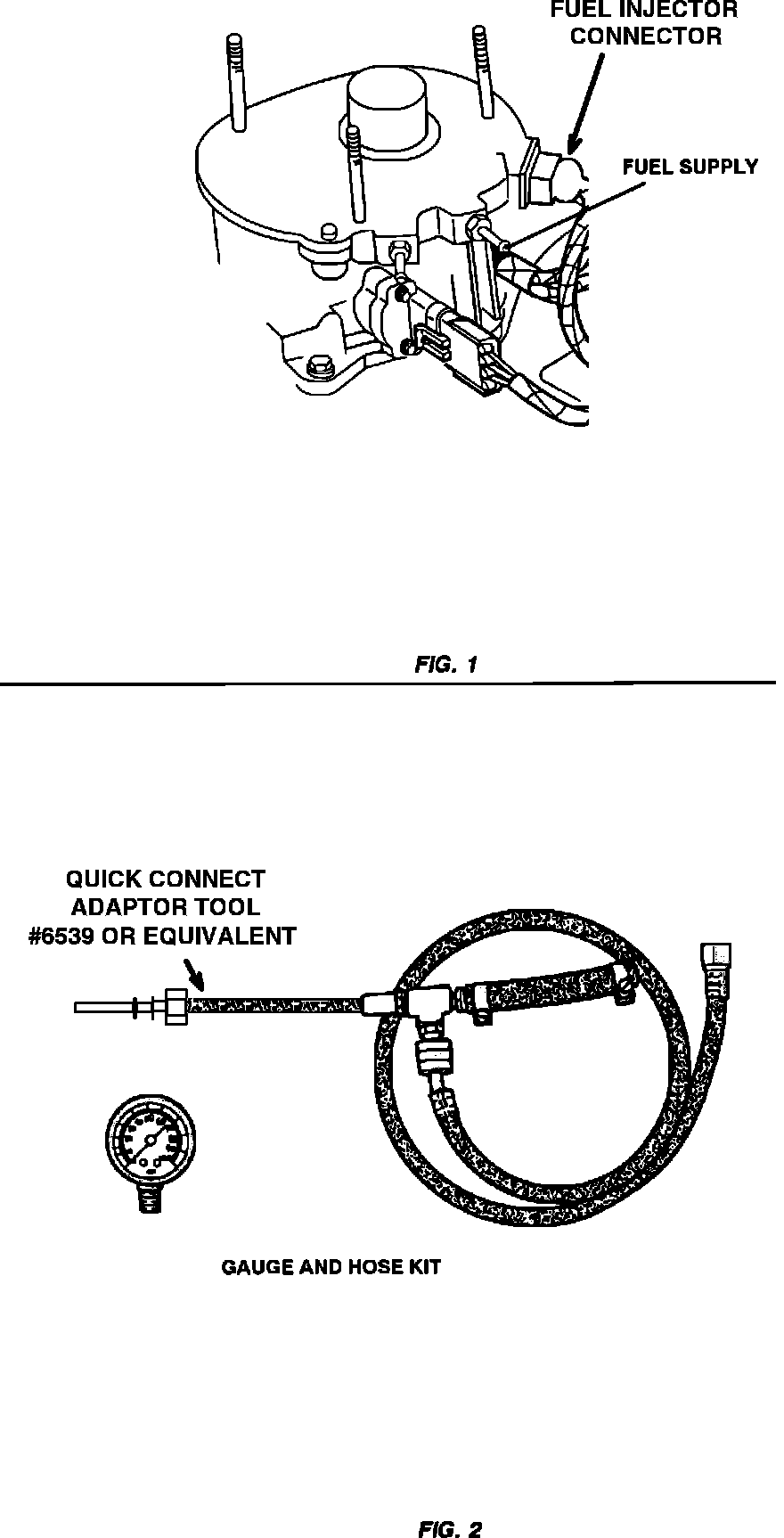

Checking Fuel Pressure:

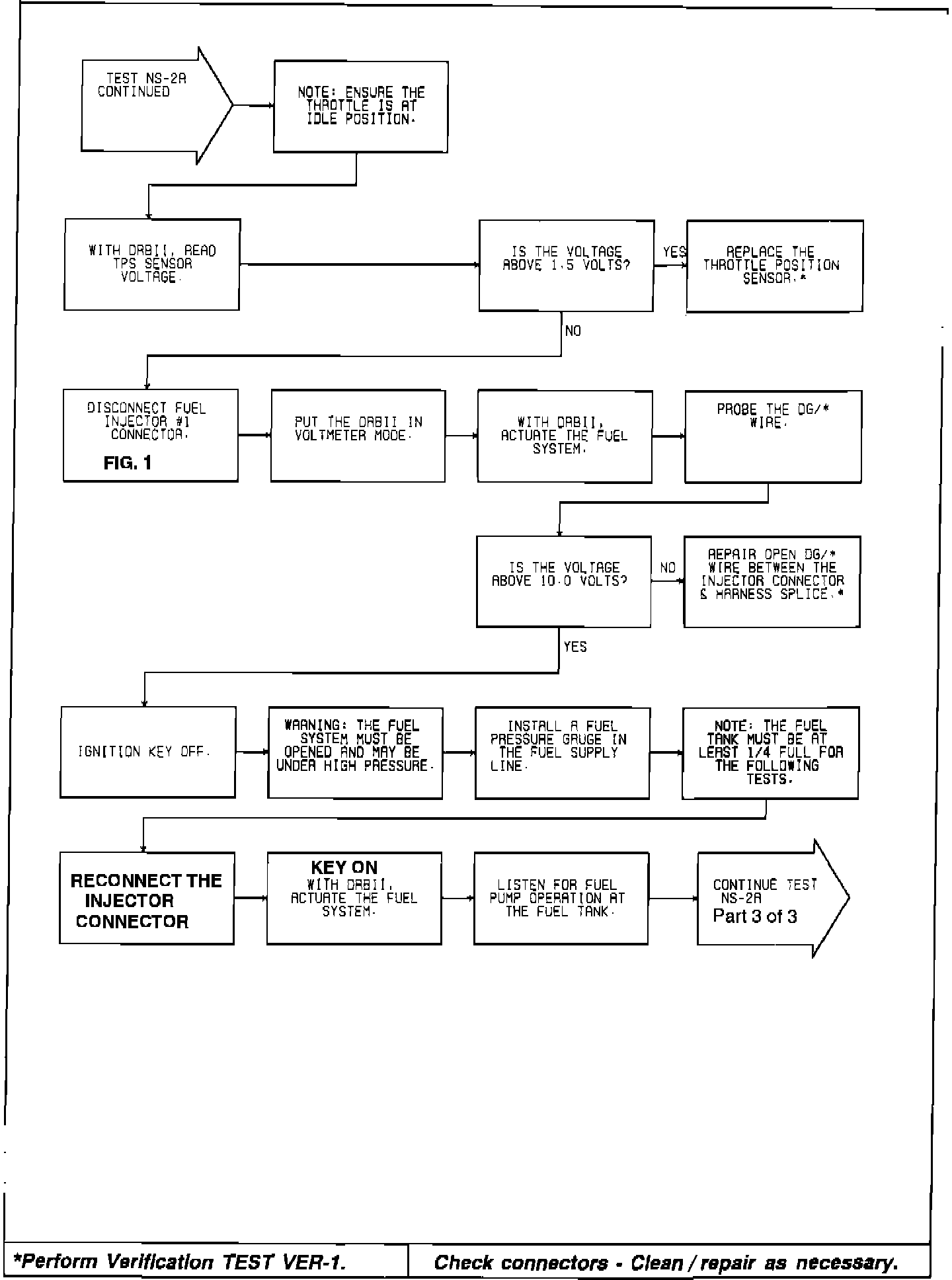

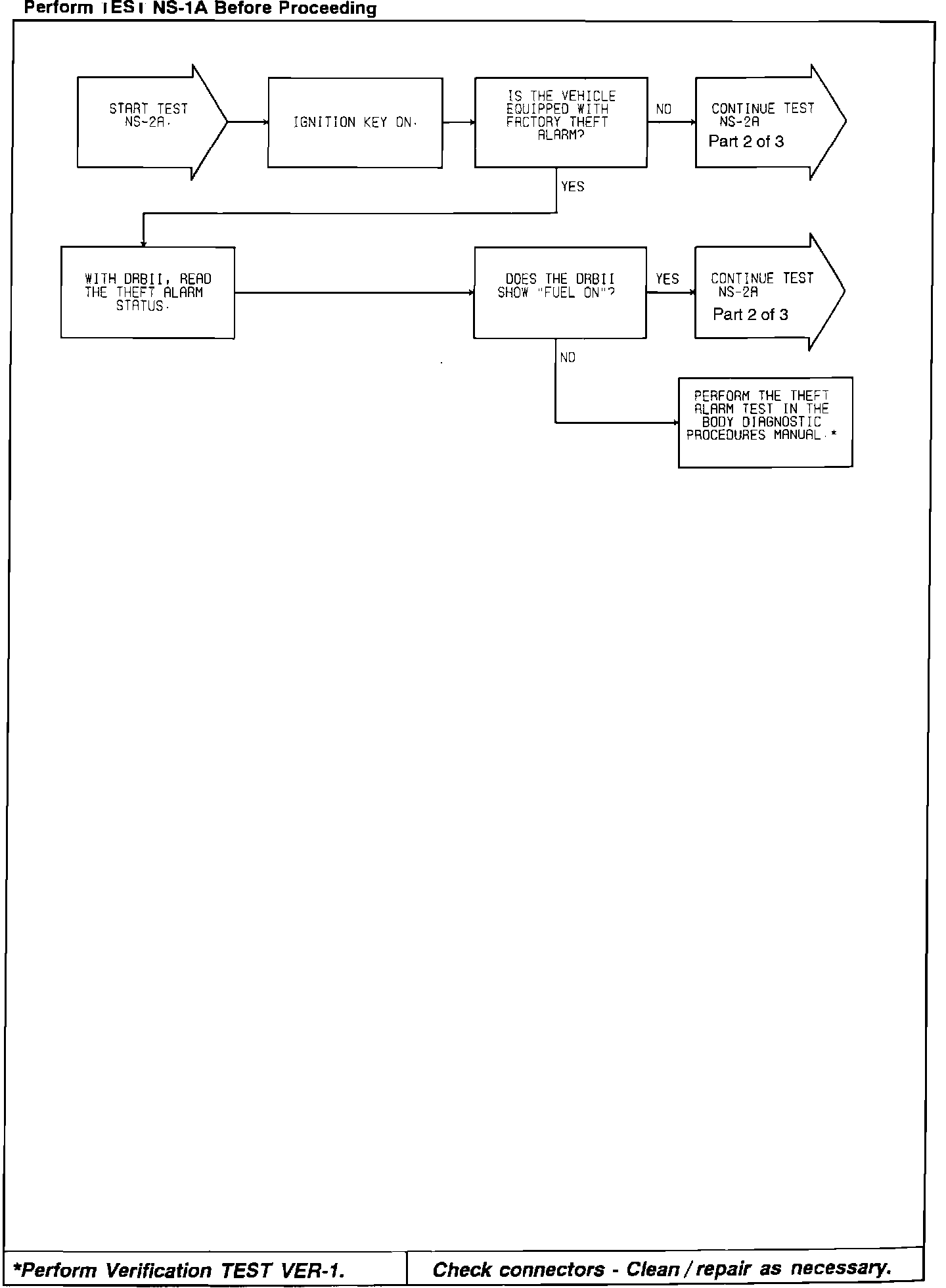

Test NS-2A Inspecting Fuel System:

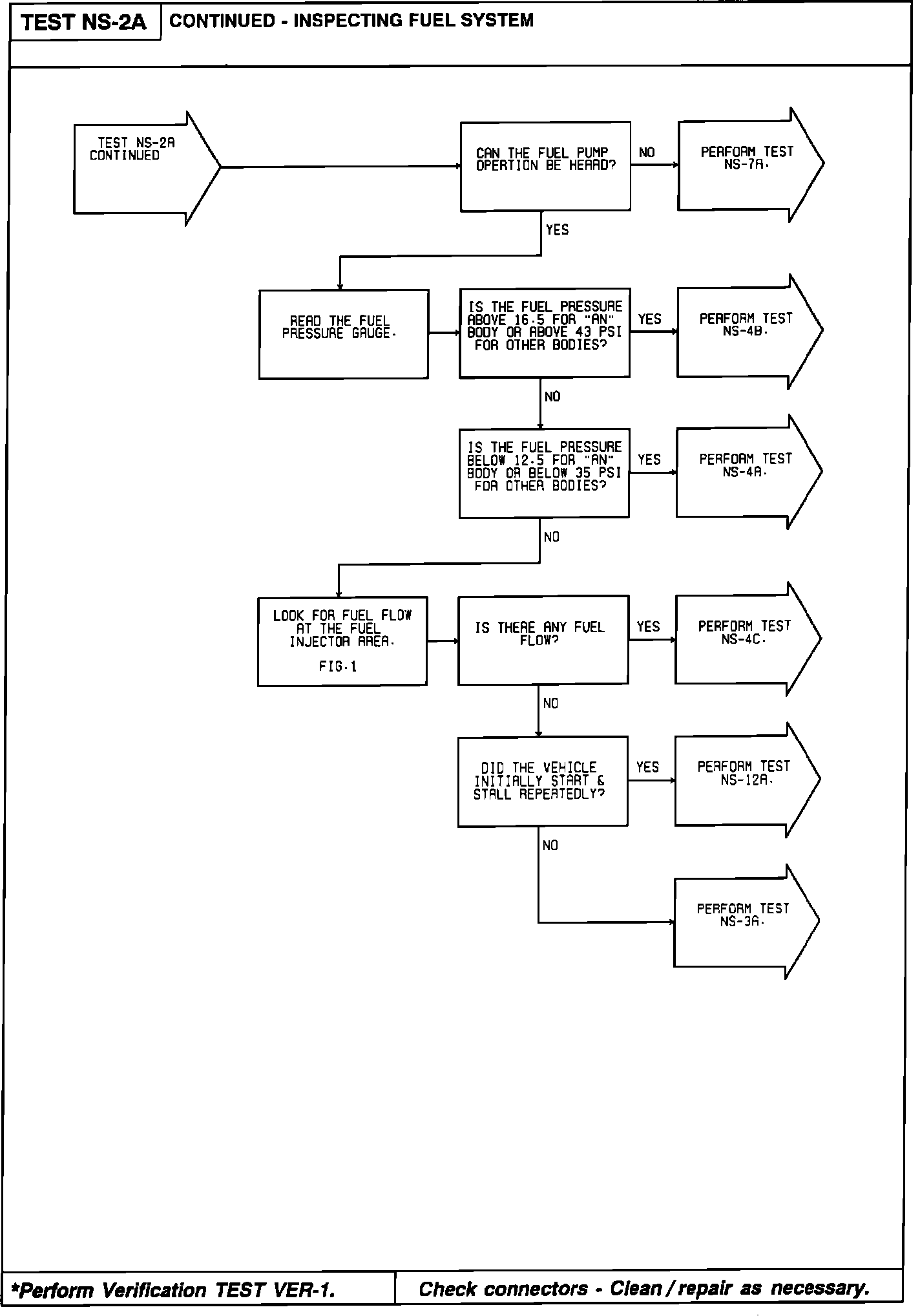

Test NS-2A Inspecting Fuel System:
Test NS-2A Inspecting Fuel System:

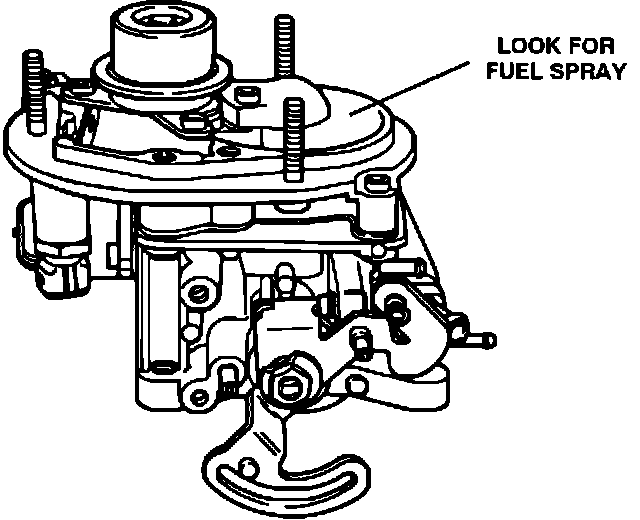

Inspecting Fuel System:
