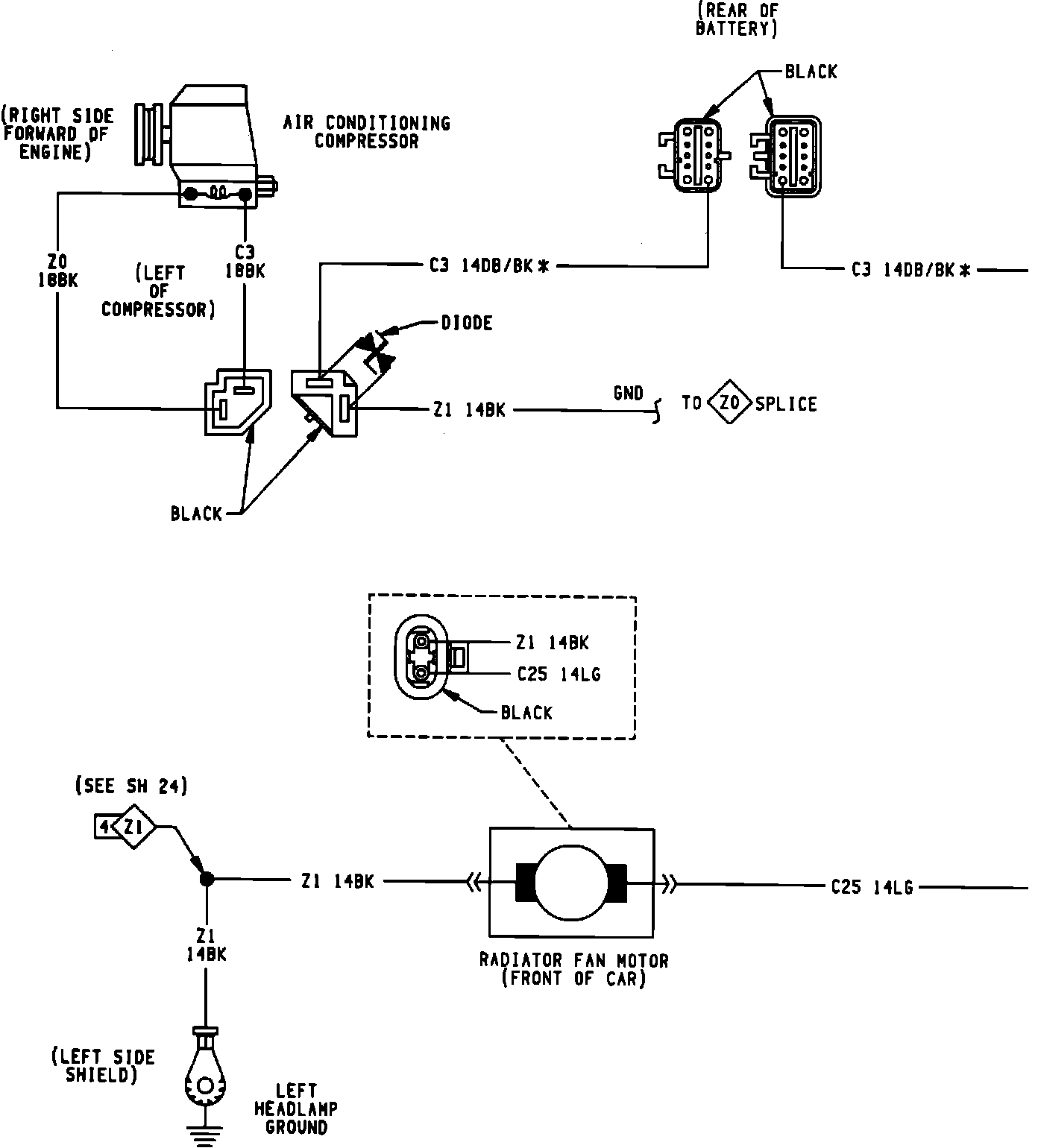

Radiator Fan System With A/C And Heater Wiring Diagram (part 1 Of 2):

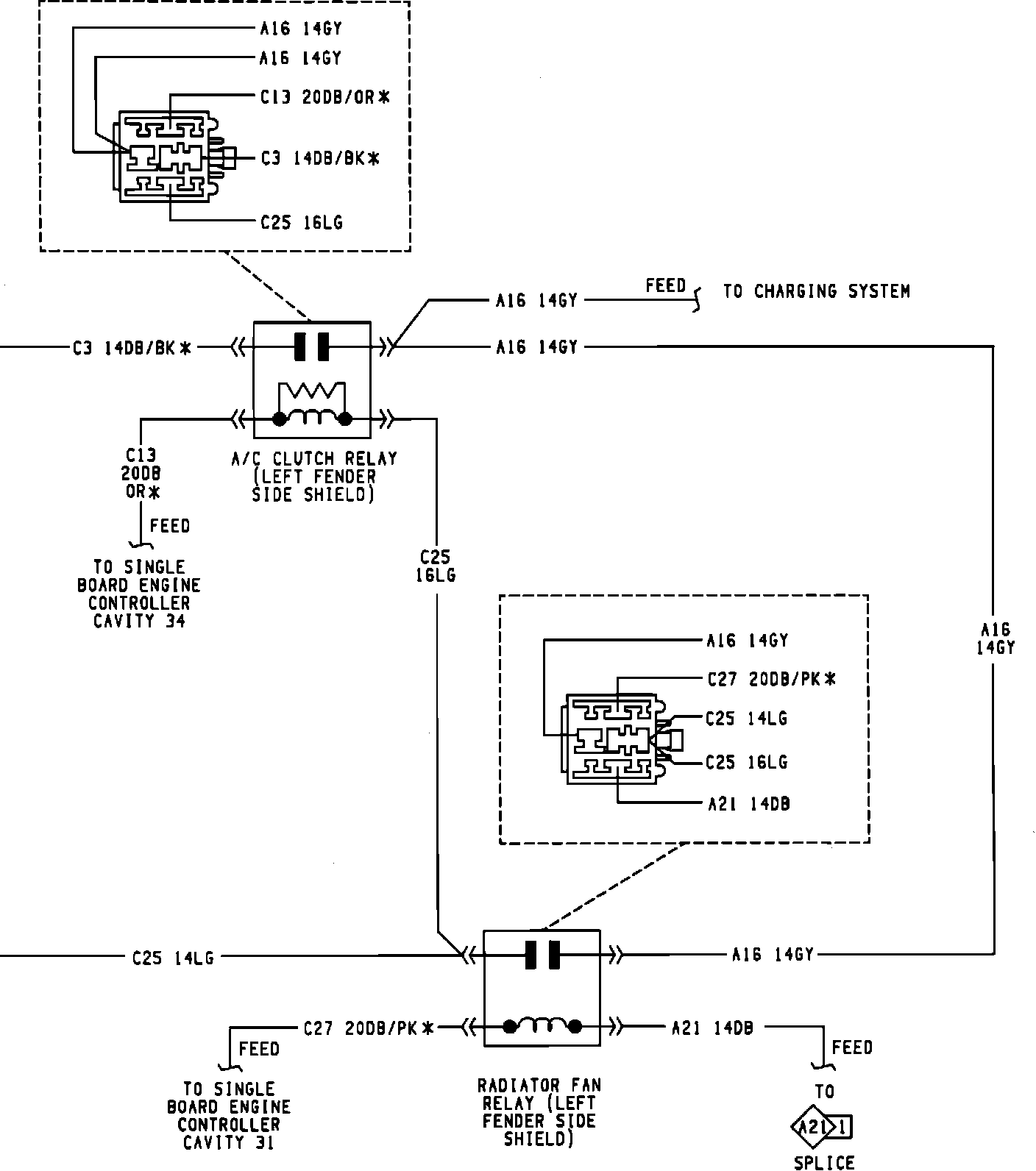

Radiator Fan System With A/C And Heater Wiring Diagram (part 2 Of 2):
