Fuel Pump Relay: Service and Repair

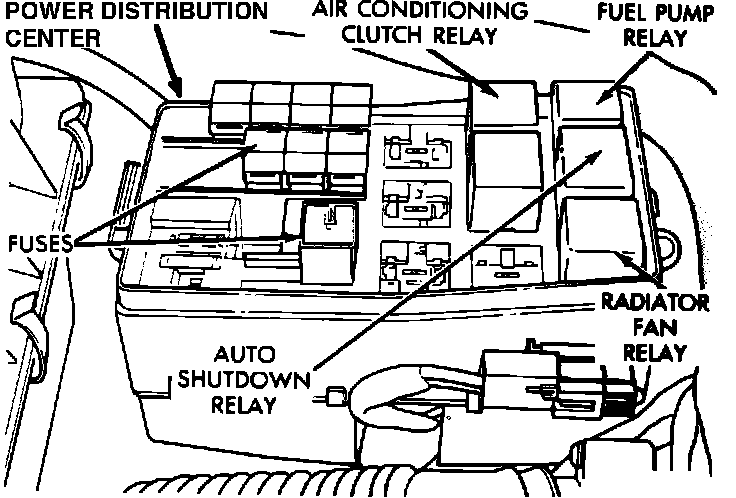

Relay Location/Identification:

REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the relay from its mounting socket.
3. Install the relay into its socket, reconnect negative battery cable and test relay operation.
