Radiator Cooling Fan Motor Relay
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

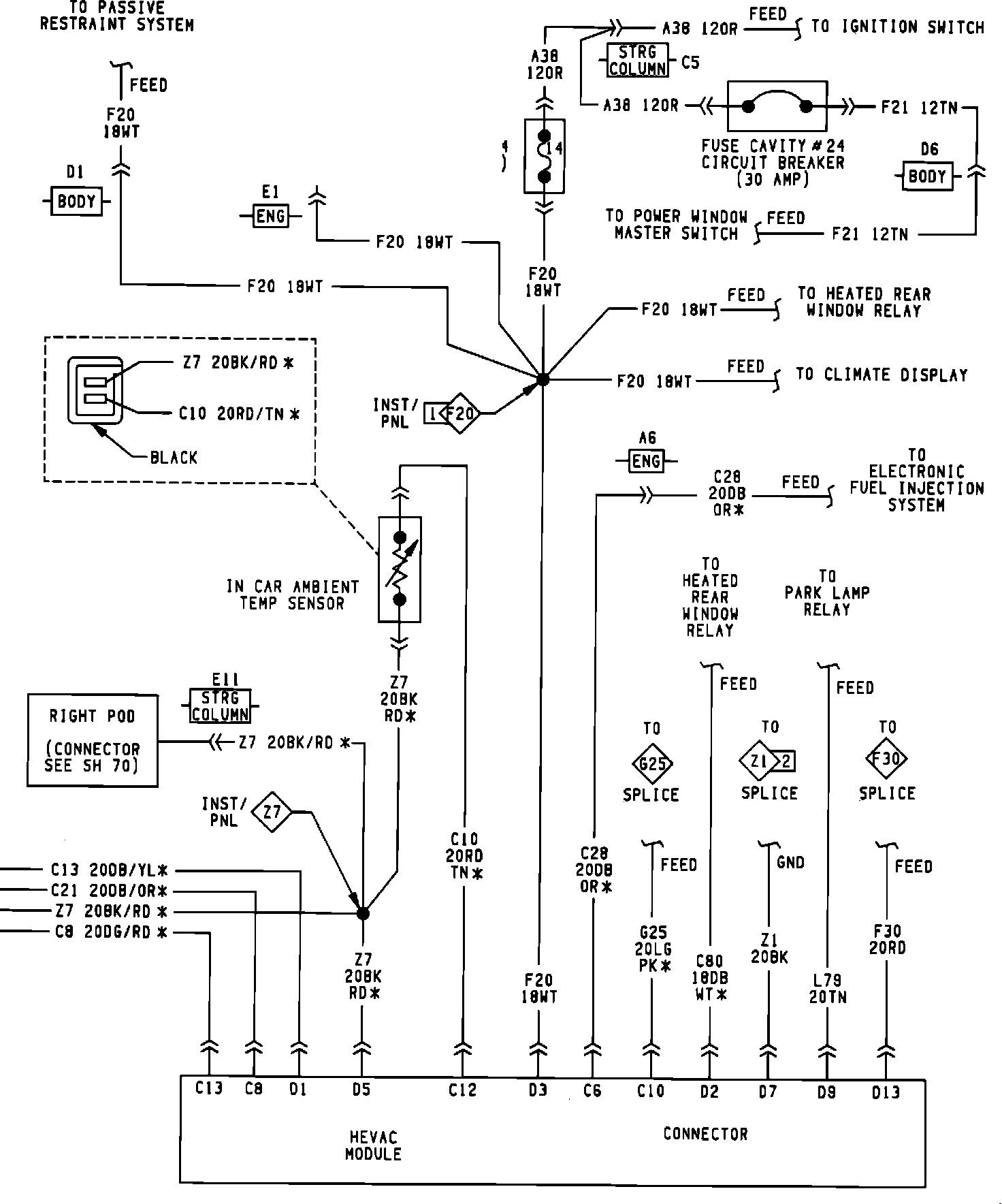

A/C And Heater Wiring Diagram (part 1 Of 2):

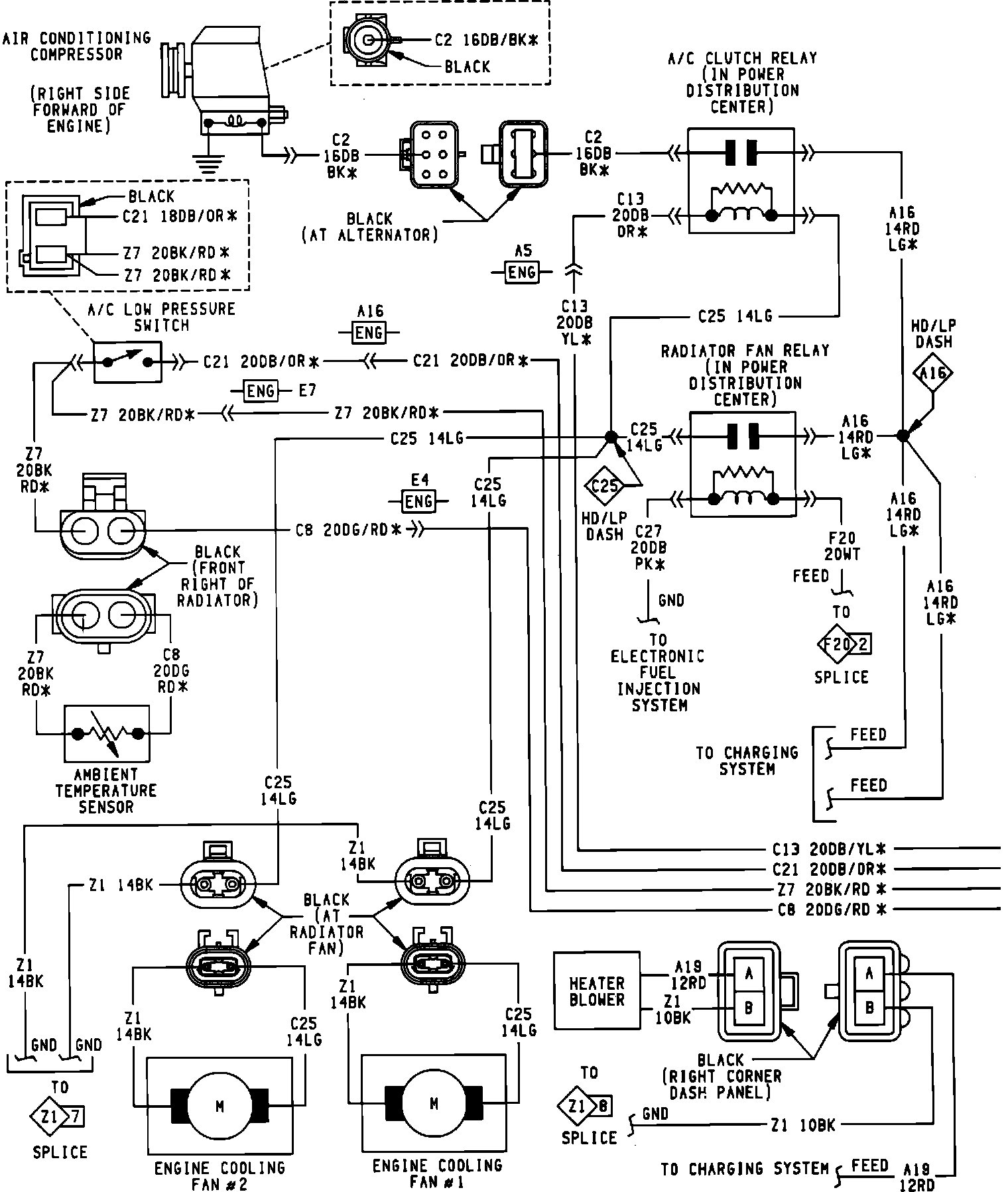

A/C And Heater Wiring Diagram (part 2 Of 2):
