Evaporative Emission Control Canister: Service and Repair

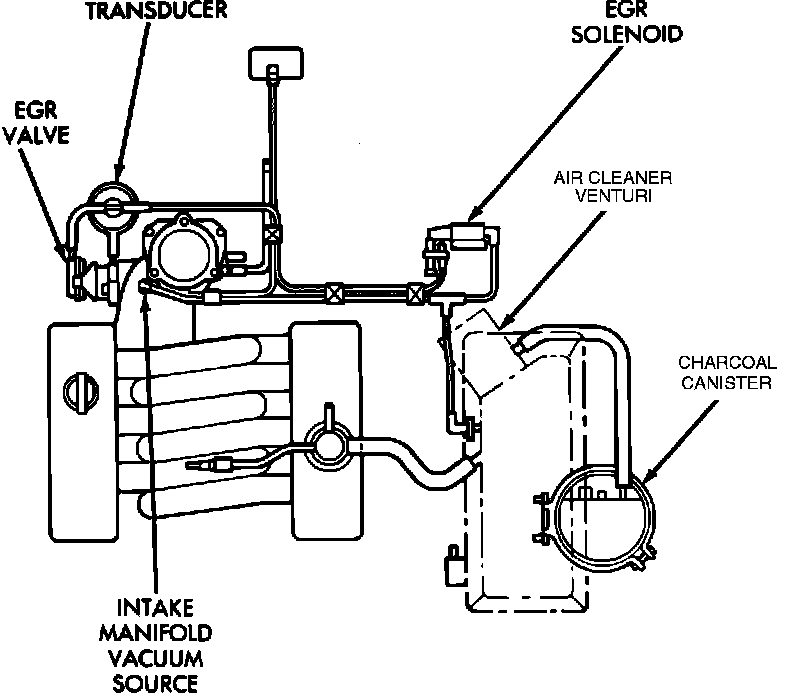

EVAP Canister Location:

REMOVAL/INSTALLATION

1. Remove vapor hose to air cleaner/venturi assembly.
2. Remove air cleaner/venturi assembly.
3. Remove vacuum hoses from charcoal canister .
4. Remove canister mounting bolts.
5. Remove canister from vehicle.
6. Reverse procedures for installation.
