NF-10A Checking EGR Operation

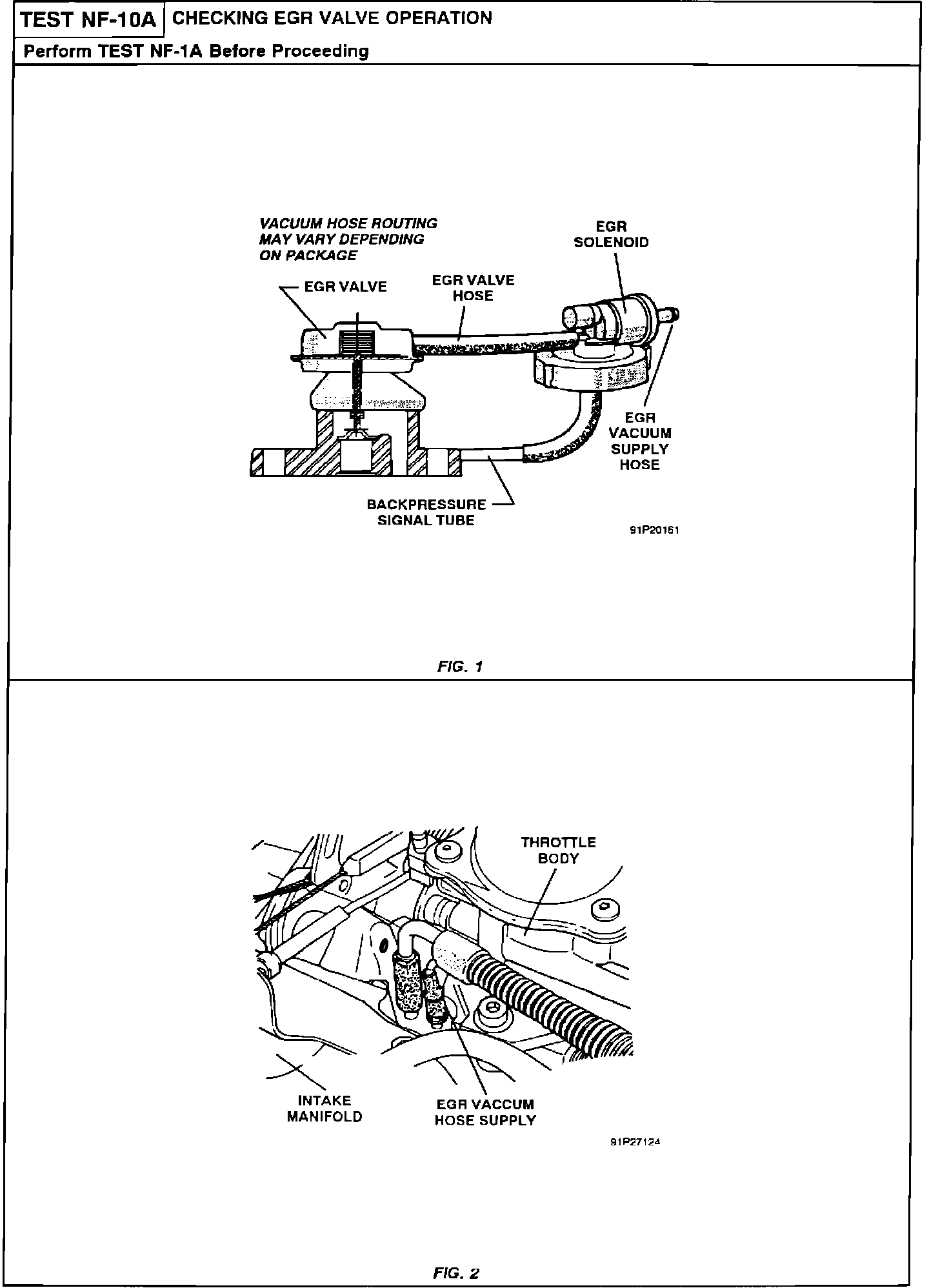

Test NF10A Part 1:

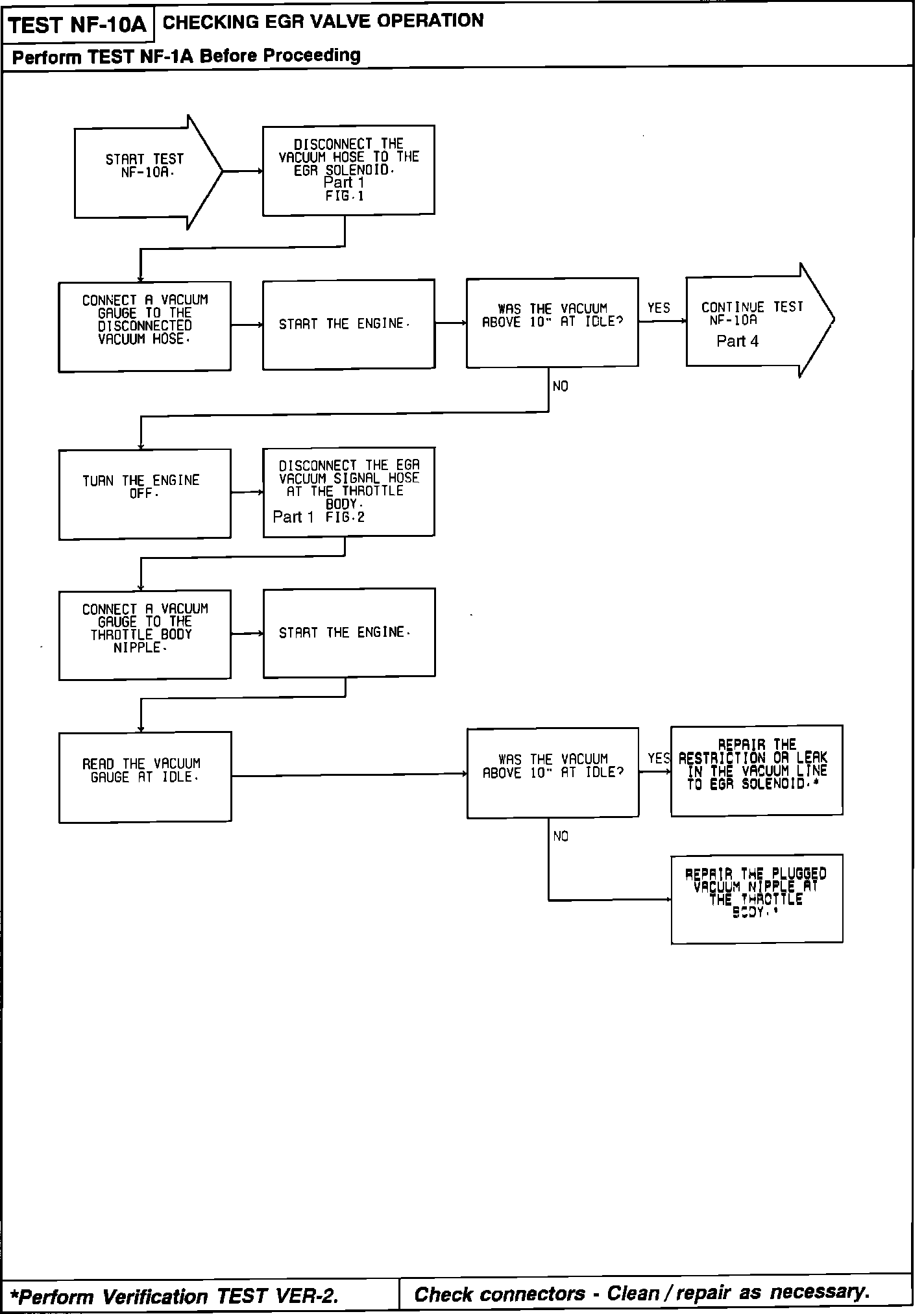

Test NF10A Part 2:

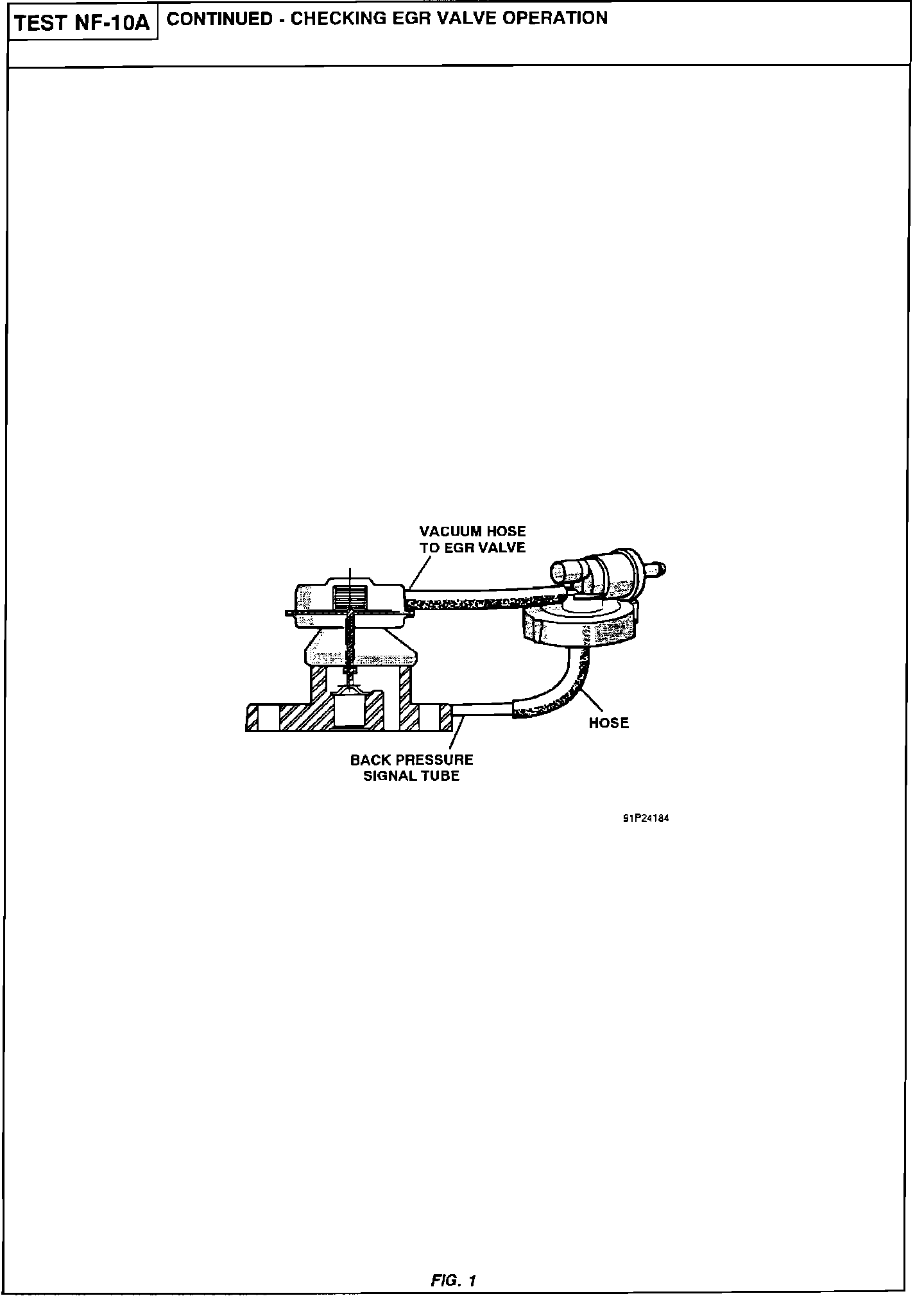

Test NF10A Part 3:

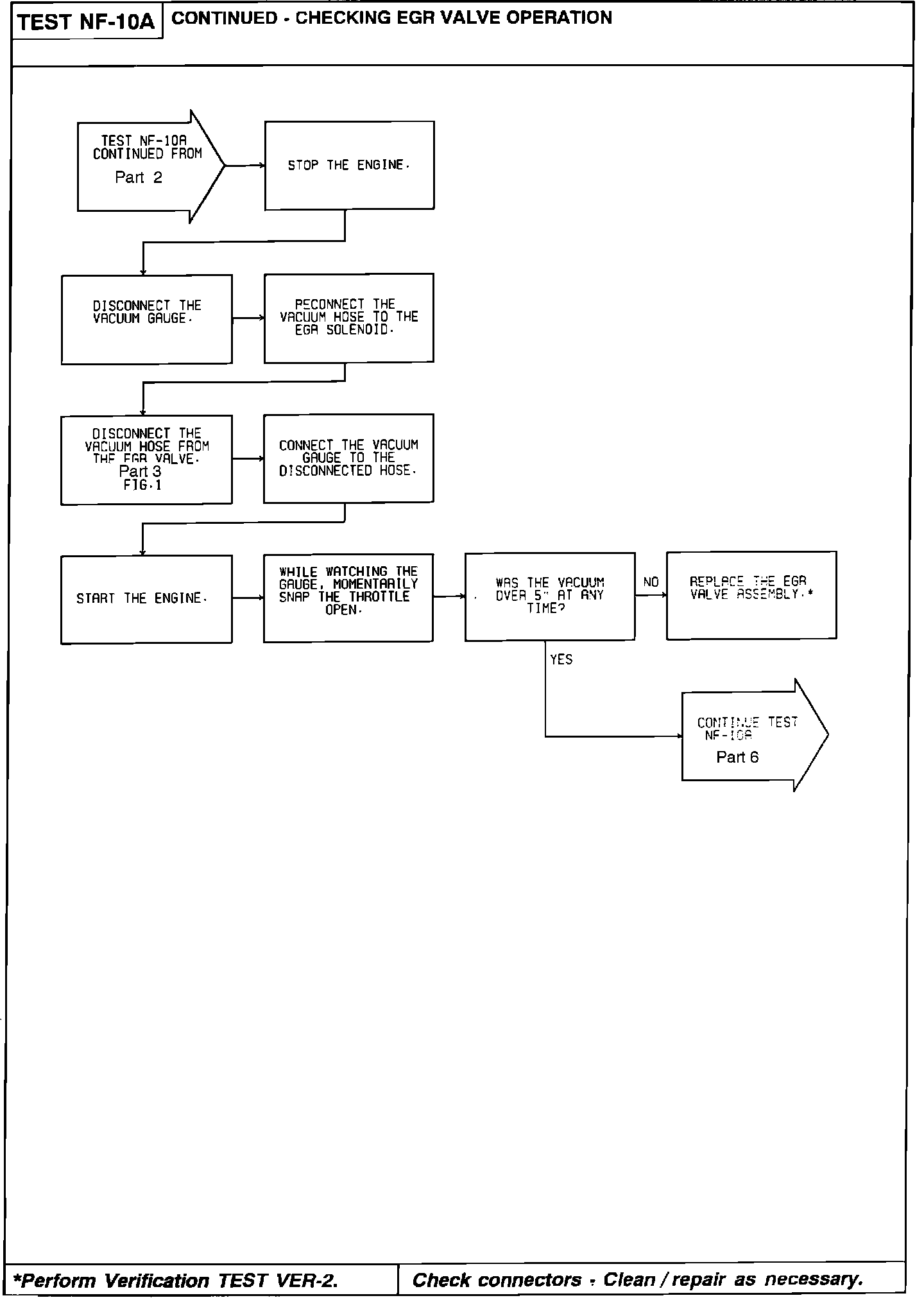

Test NF10A Part 4:

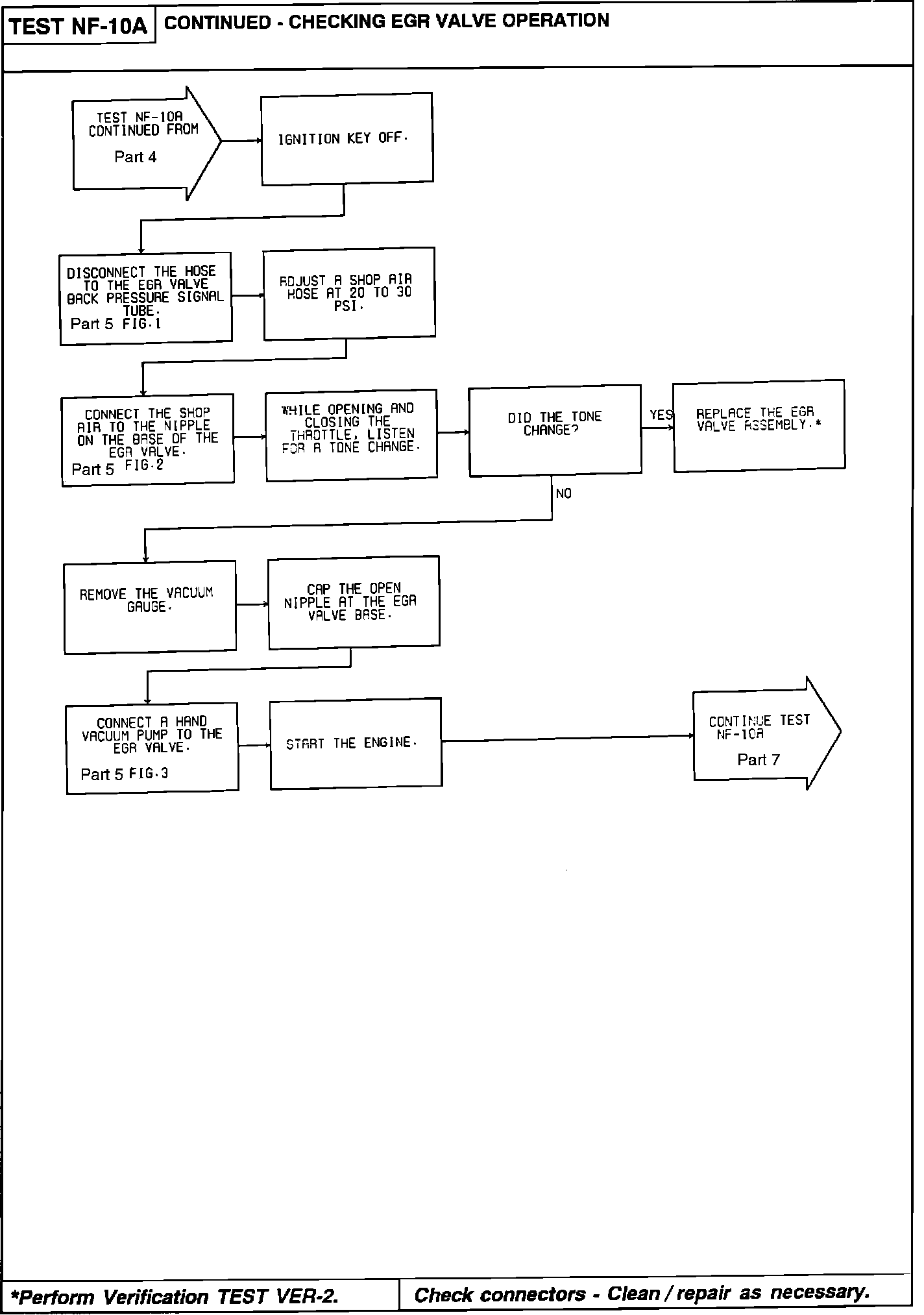

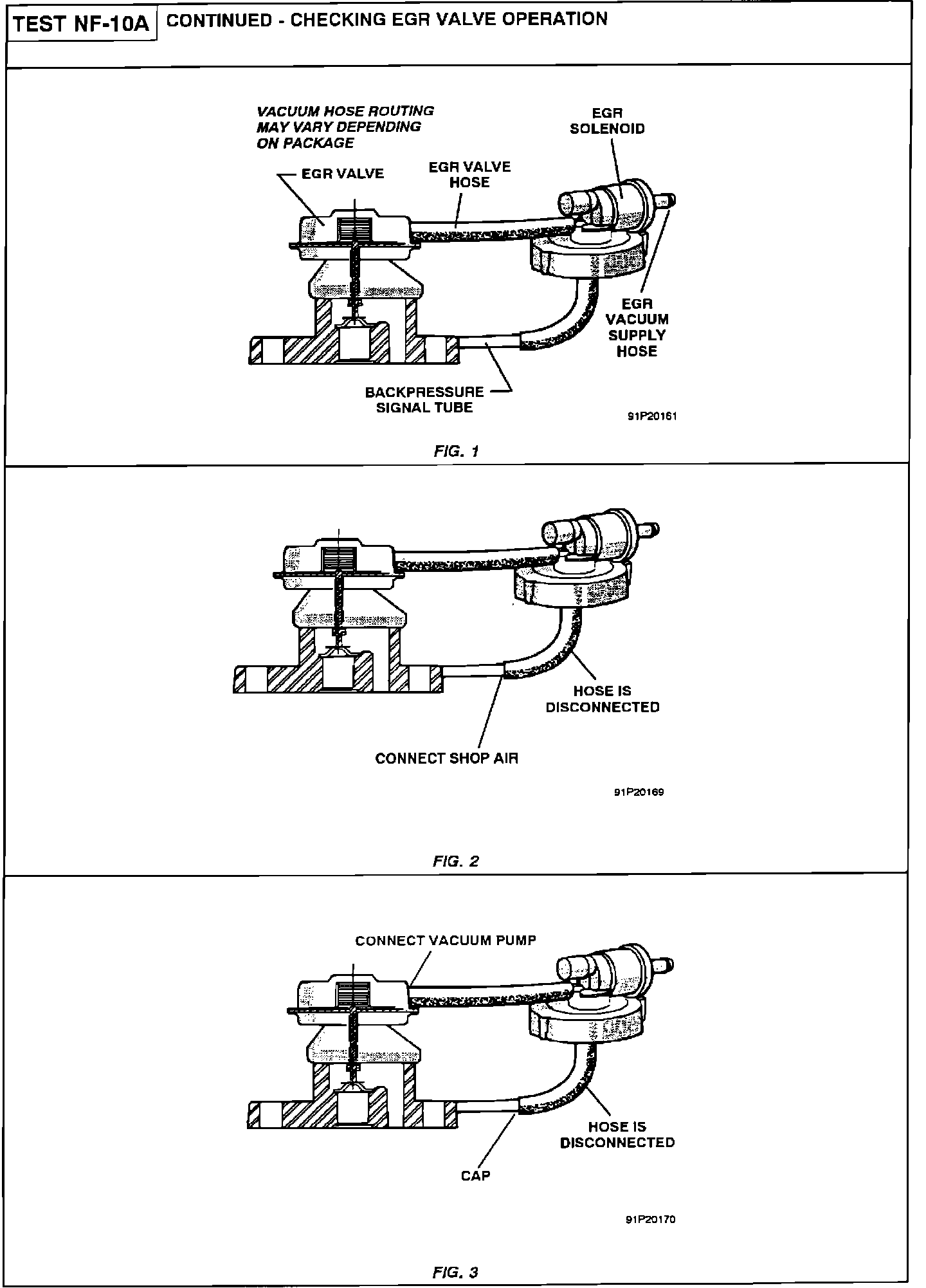

Test NF10A Part 5:

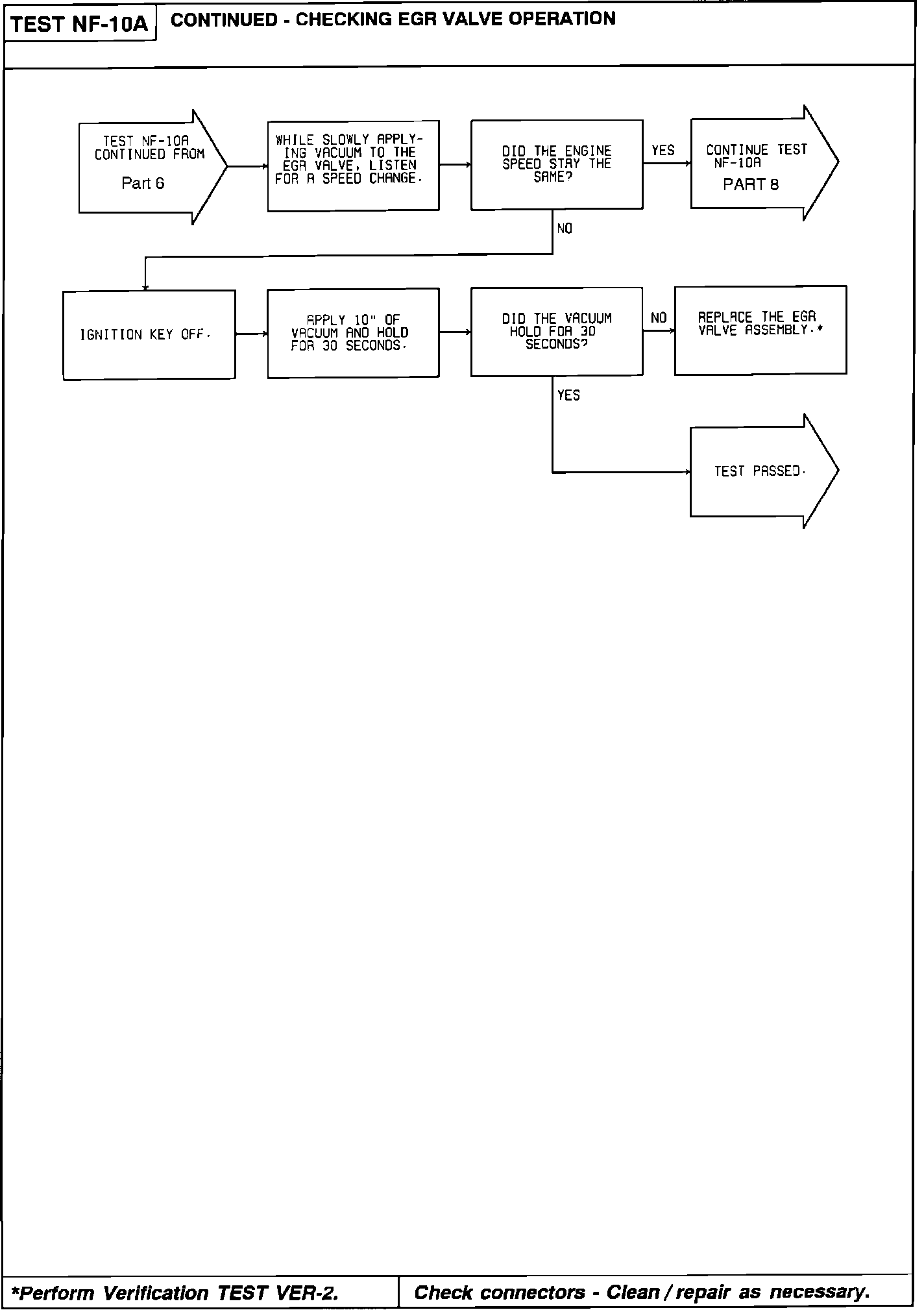

Test NF10A Part 6:



Test NF10A Part 7:

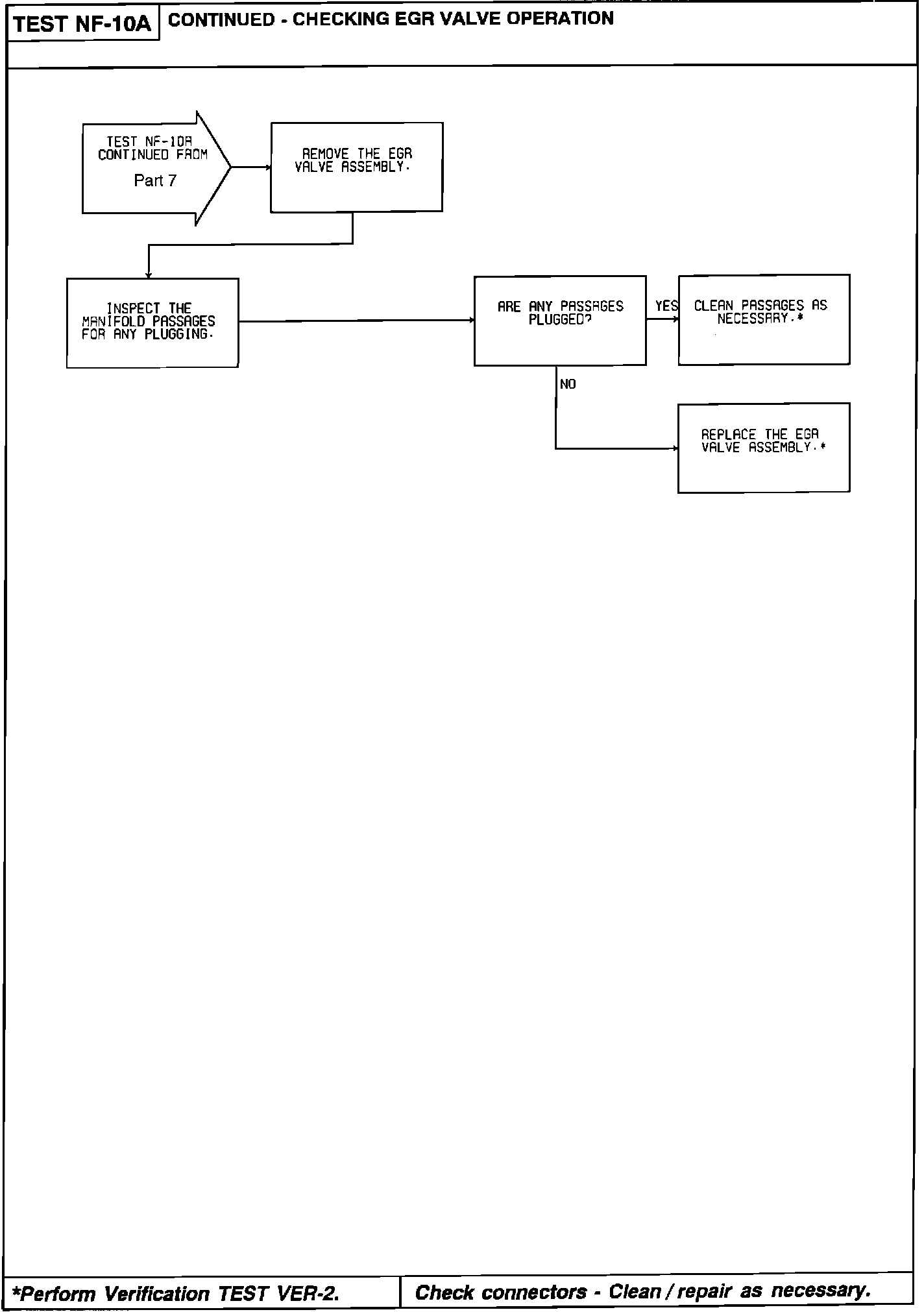

Test NF10A Part 8:
