Home
>>
Dodge
>>
1992
>>
Monaco V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

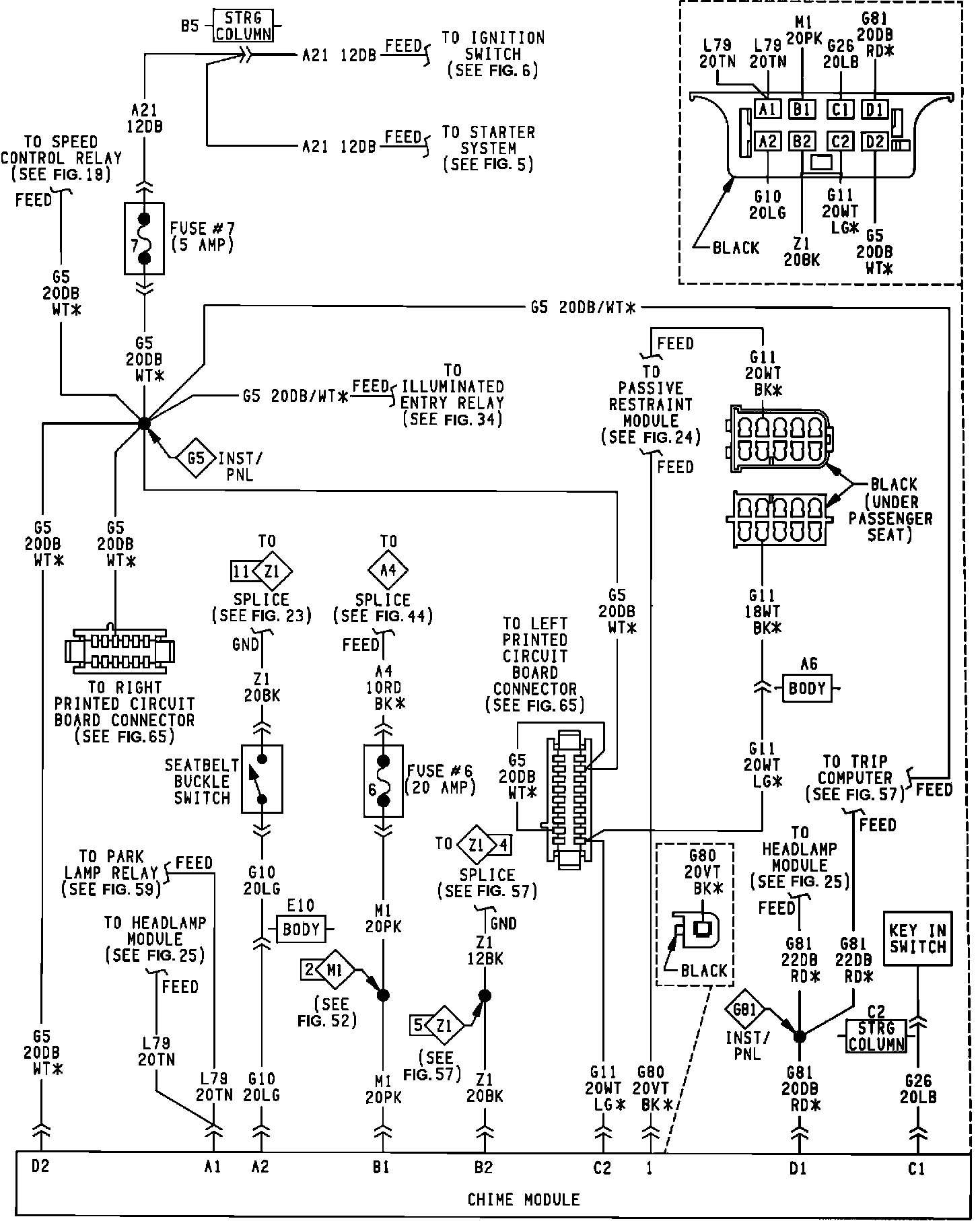

Chime Module:
