Home >> Dodge >> 1992 >> Monaco V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Wiring Diagrams >> Part 4

Part 4

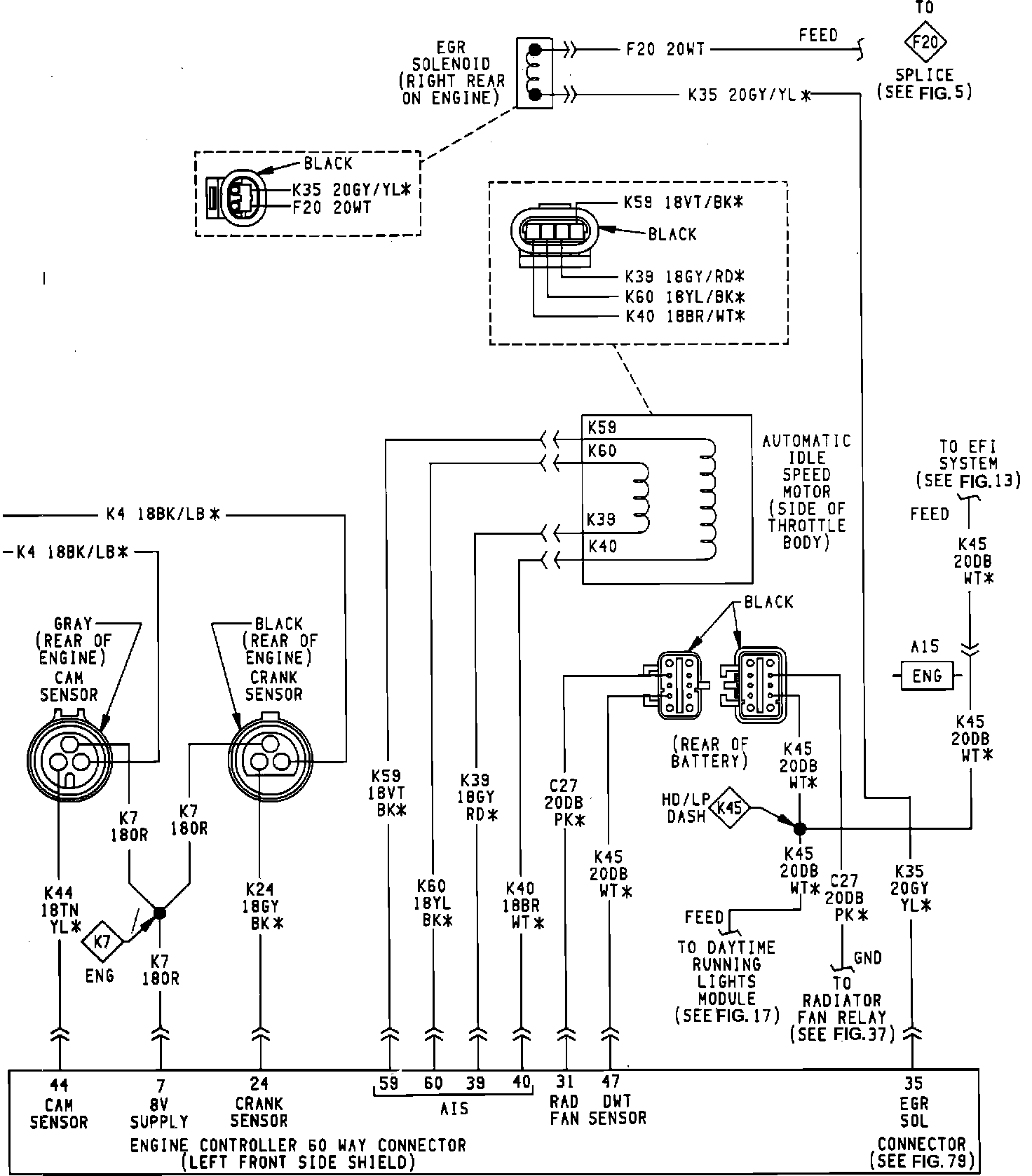

Fuel Injection/Ignition Wiring Schematic:
