Dodge
>>
1992
>>
Monaco V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp Control Module
>>
Headlamp Module
Headlamp Module

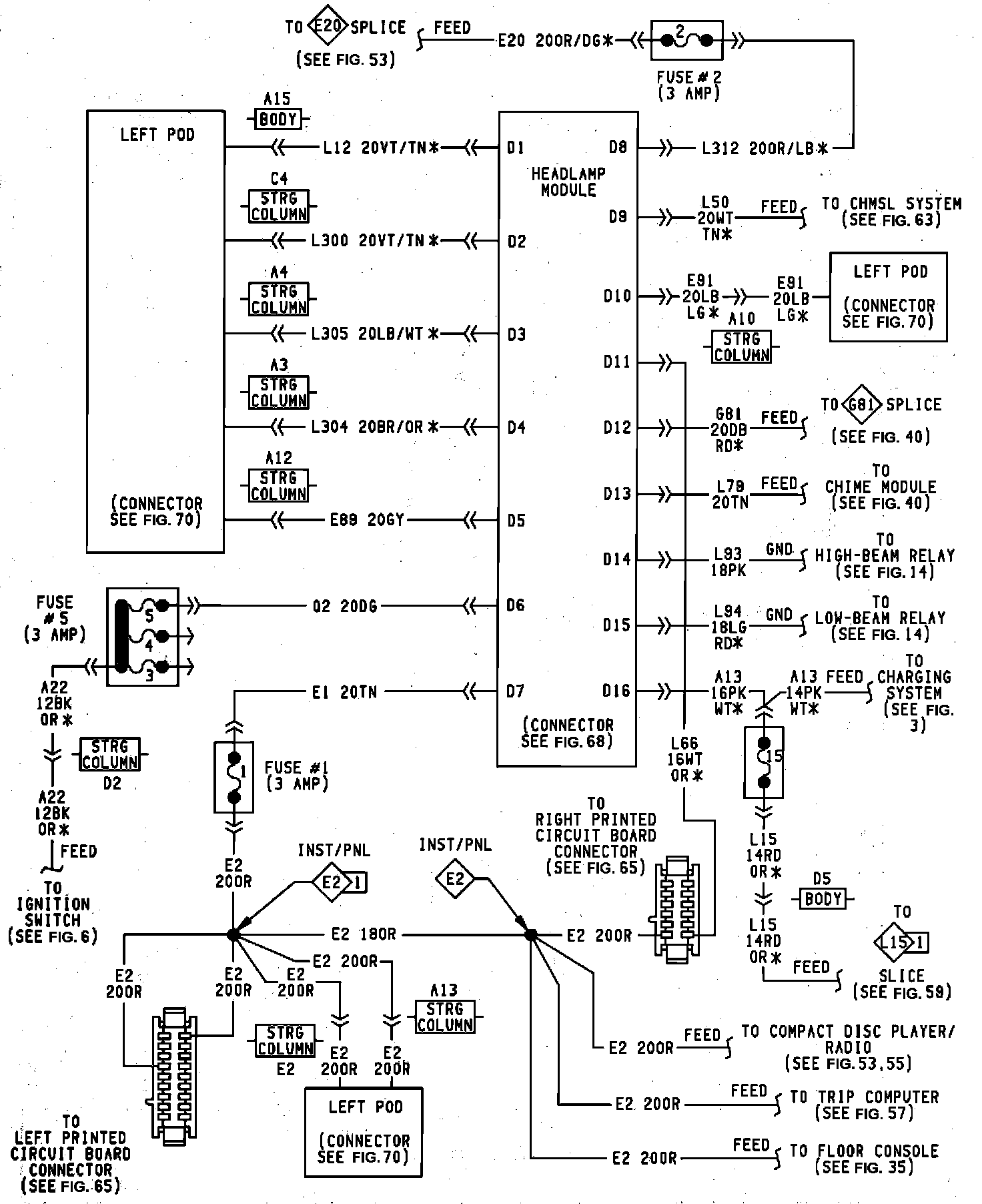

Headlamp Module:
Headlamp Module:
