Dodge
>>
1992
>>
Monaco V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Locks
Door Locks

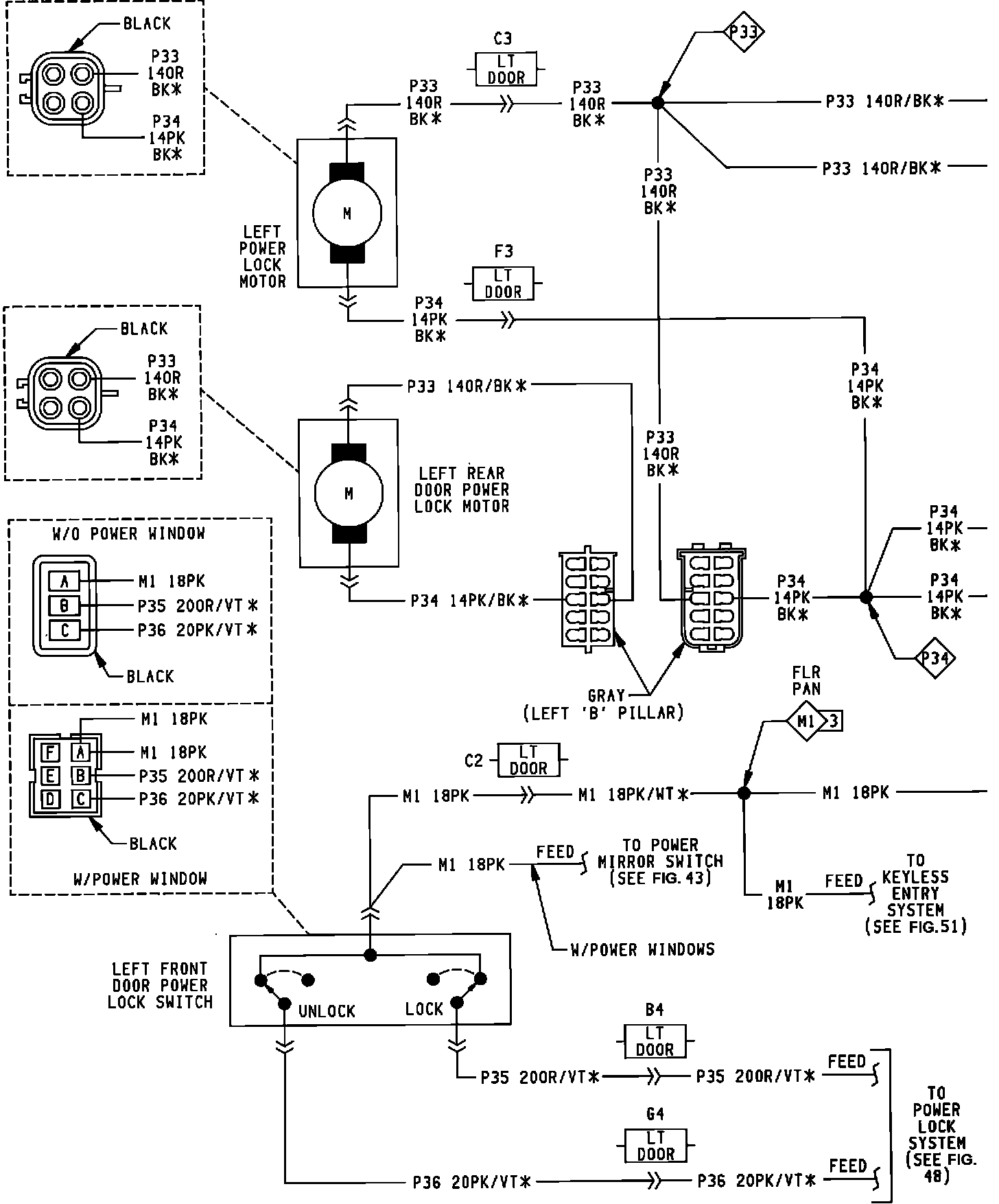

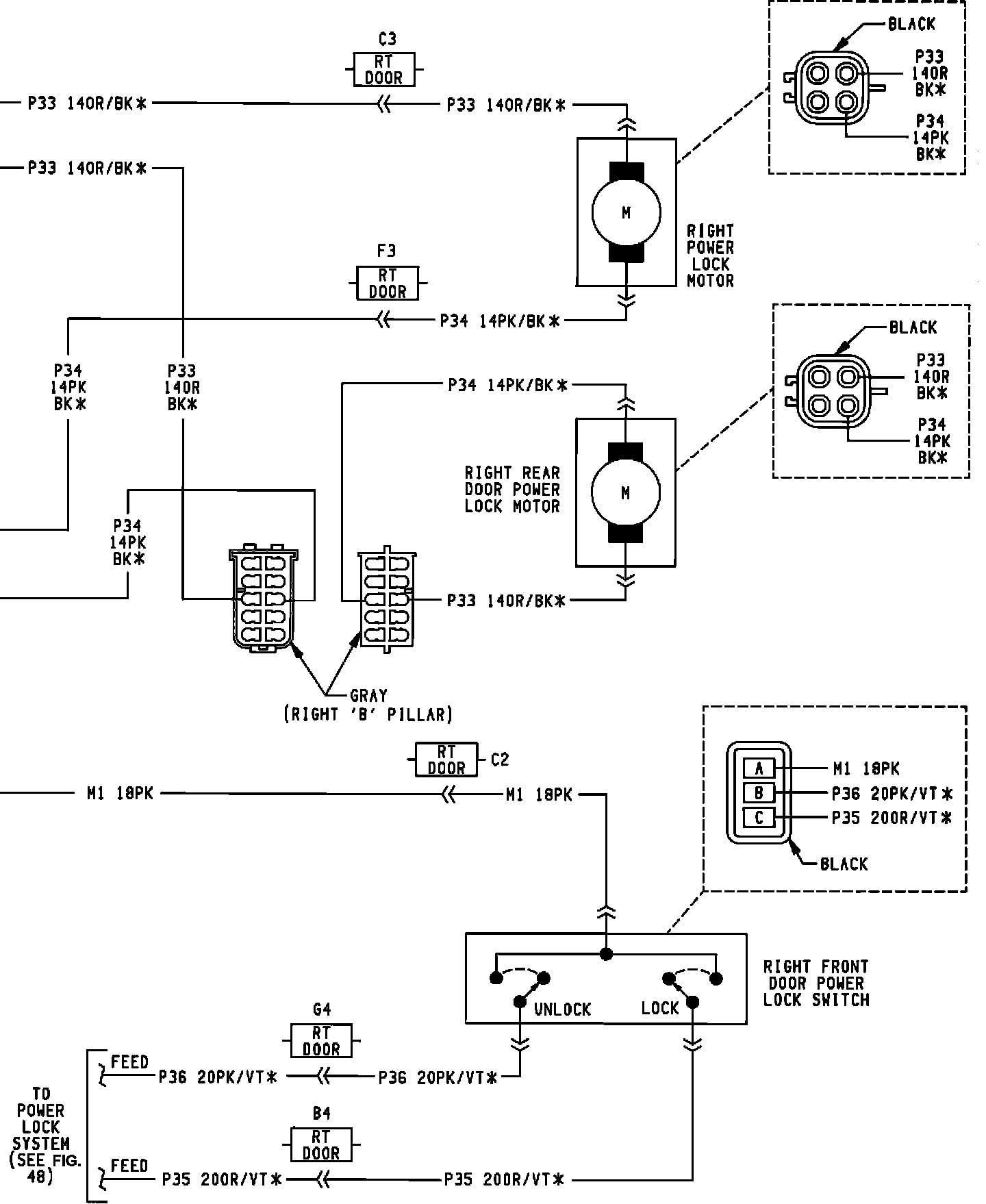

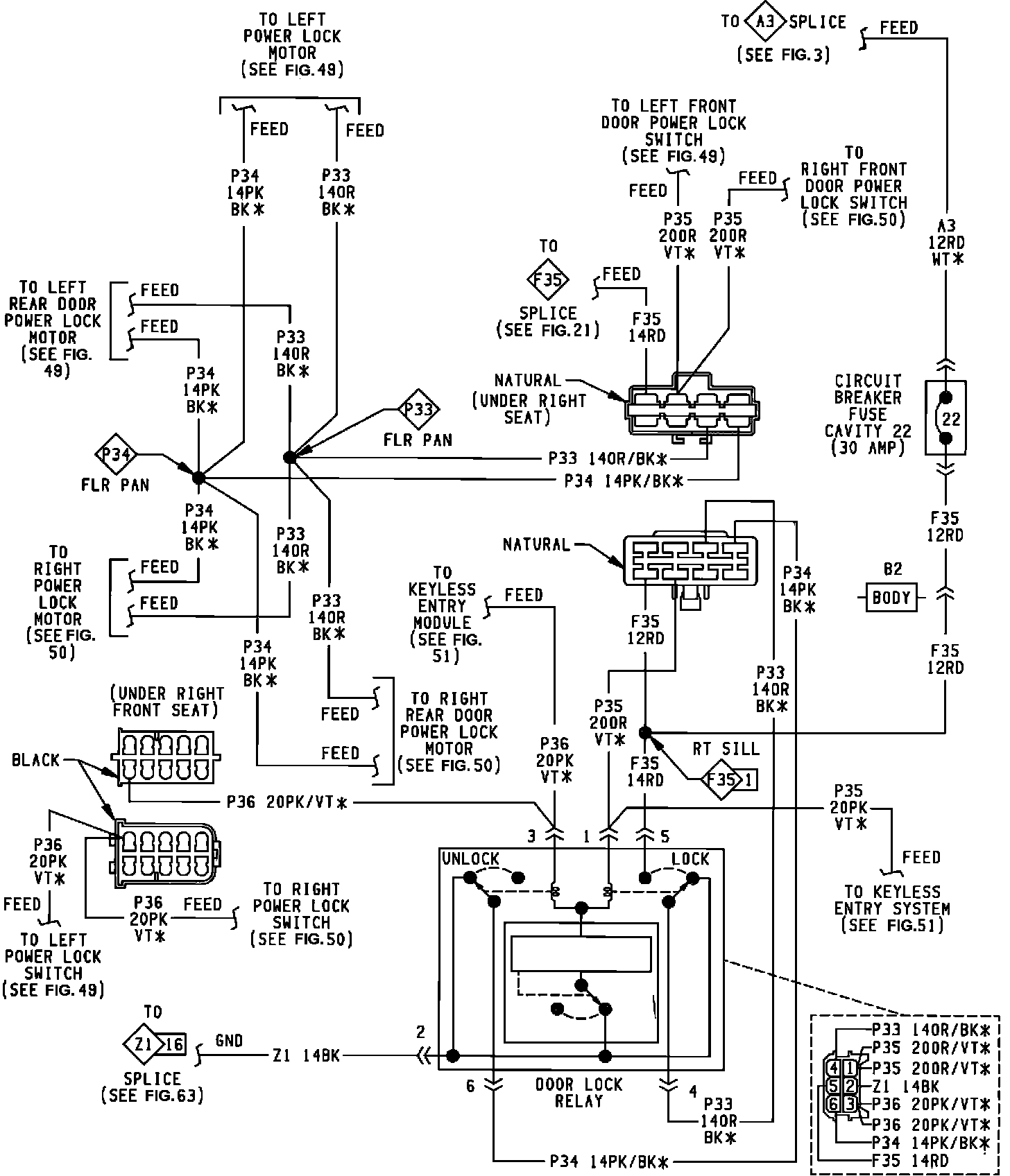

Power Lock System:
Power Lock System:
Power Lock System:
