Antilock Brakes / Traction Control Systems

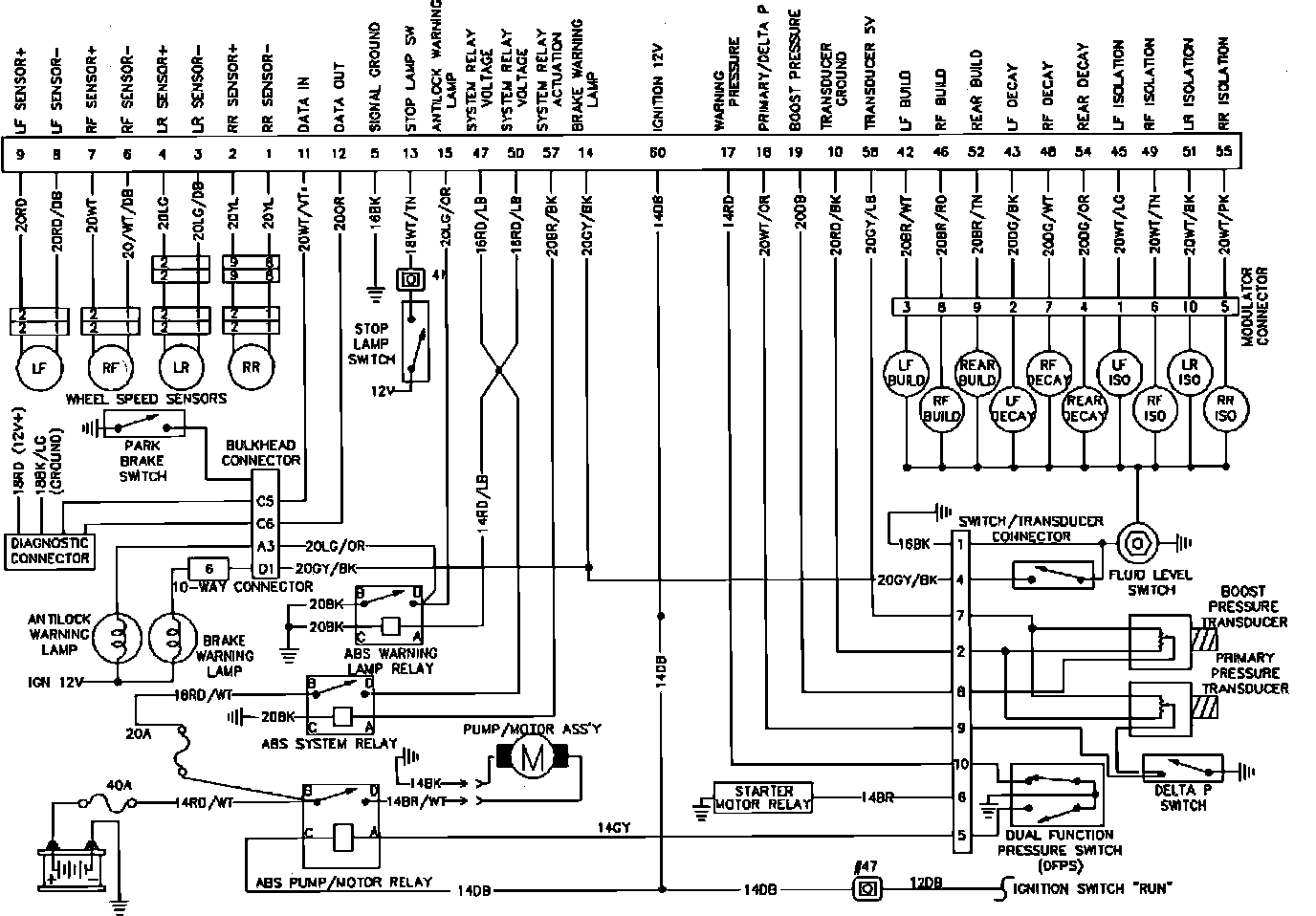

Fig. 4 Bendix Anti-Lock 10 Braking System Wiring Diagram:



Fig. 7 Bendix Anti-Lock 10 Braking System Connector Identification:

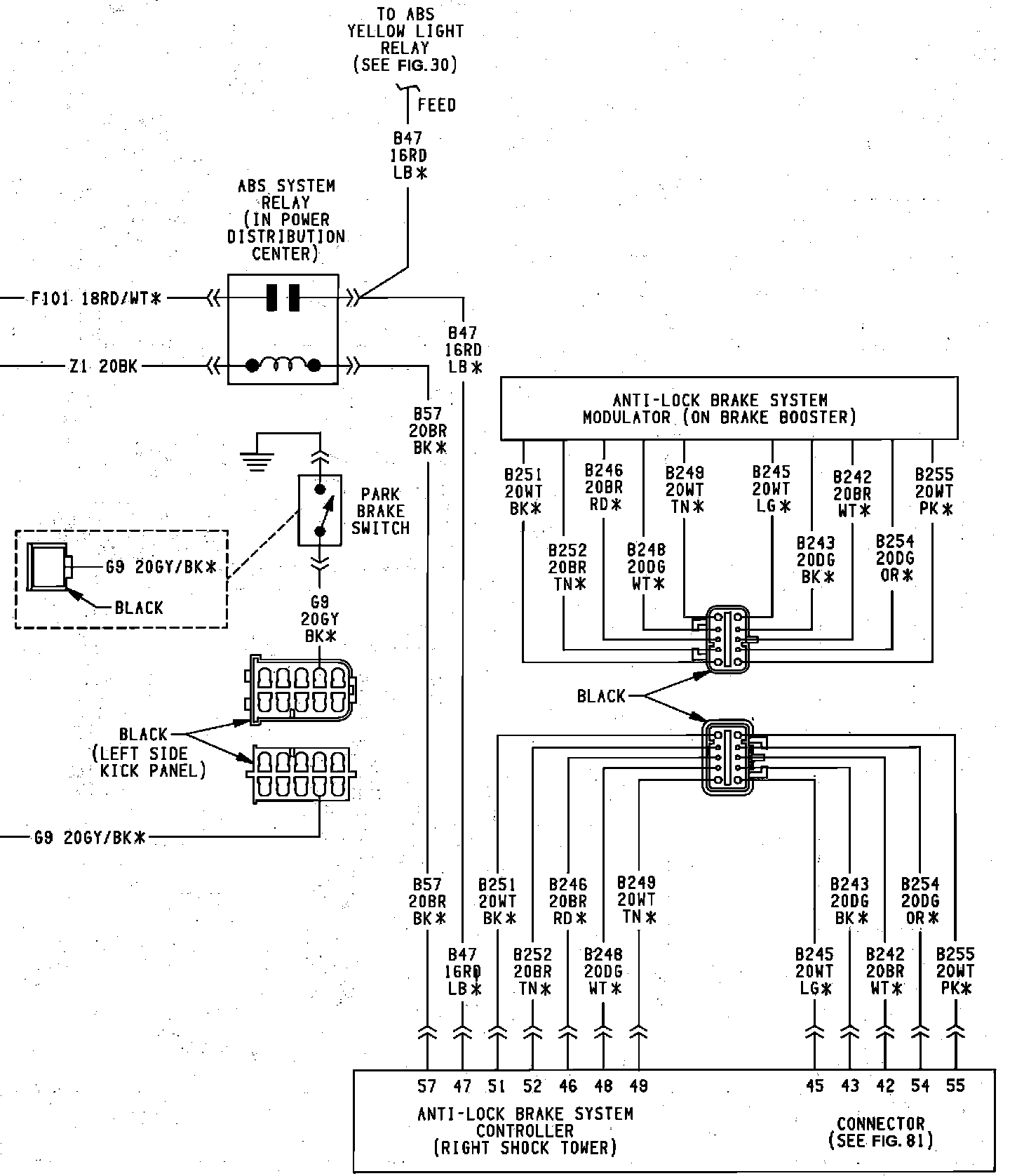

Anti-Lock Brake System:

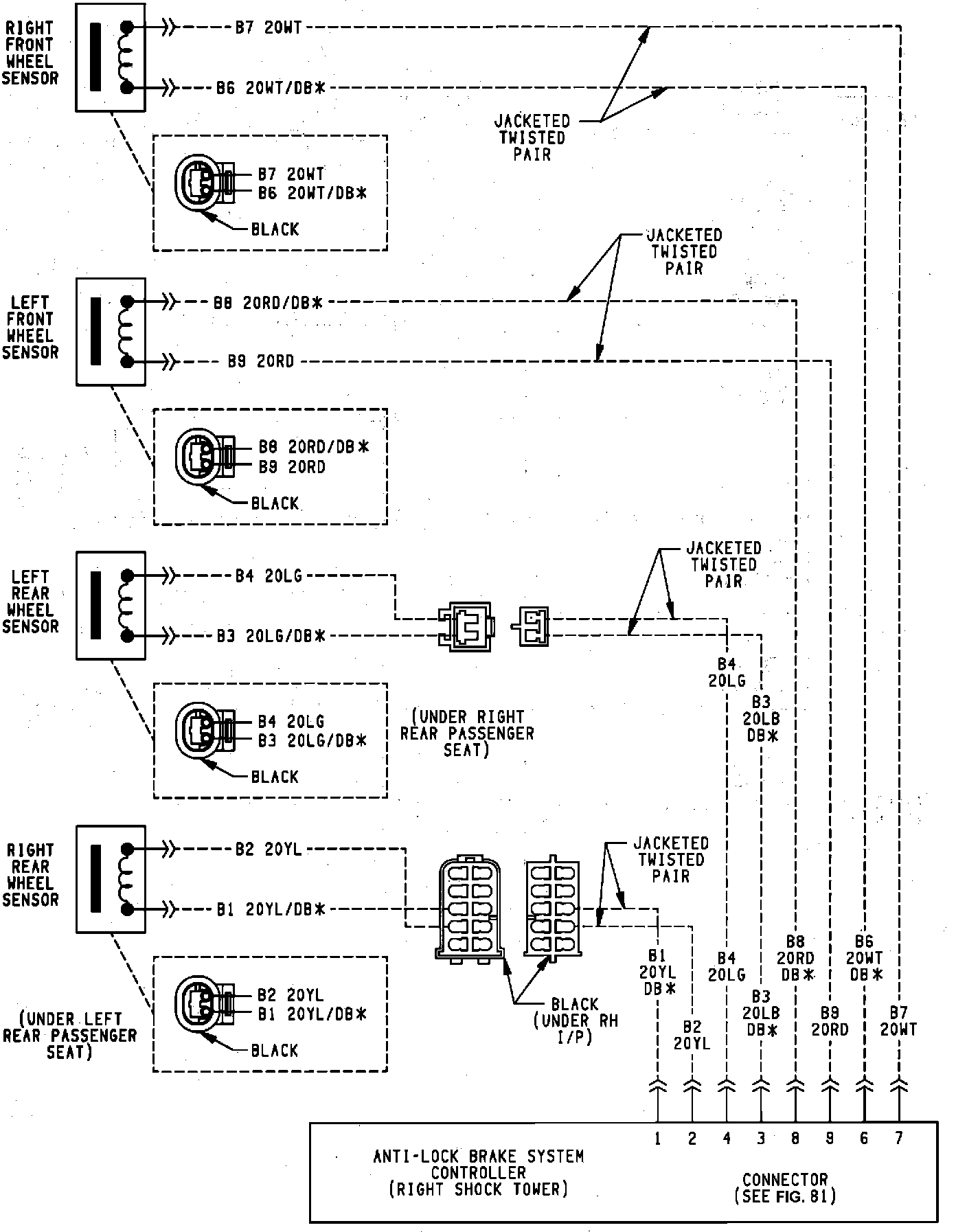

Anti-Lock Brake System:
