Instrument Cluster
Instrument Cluster

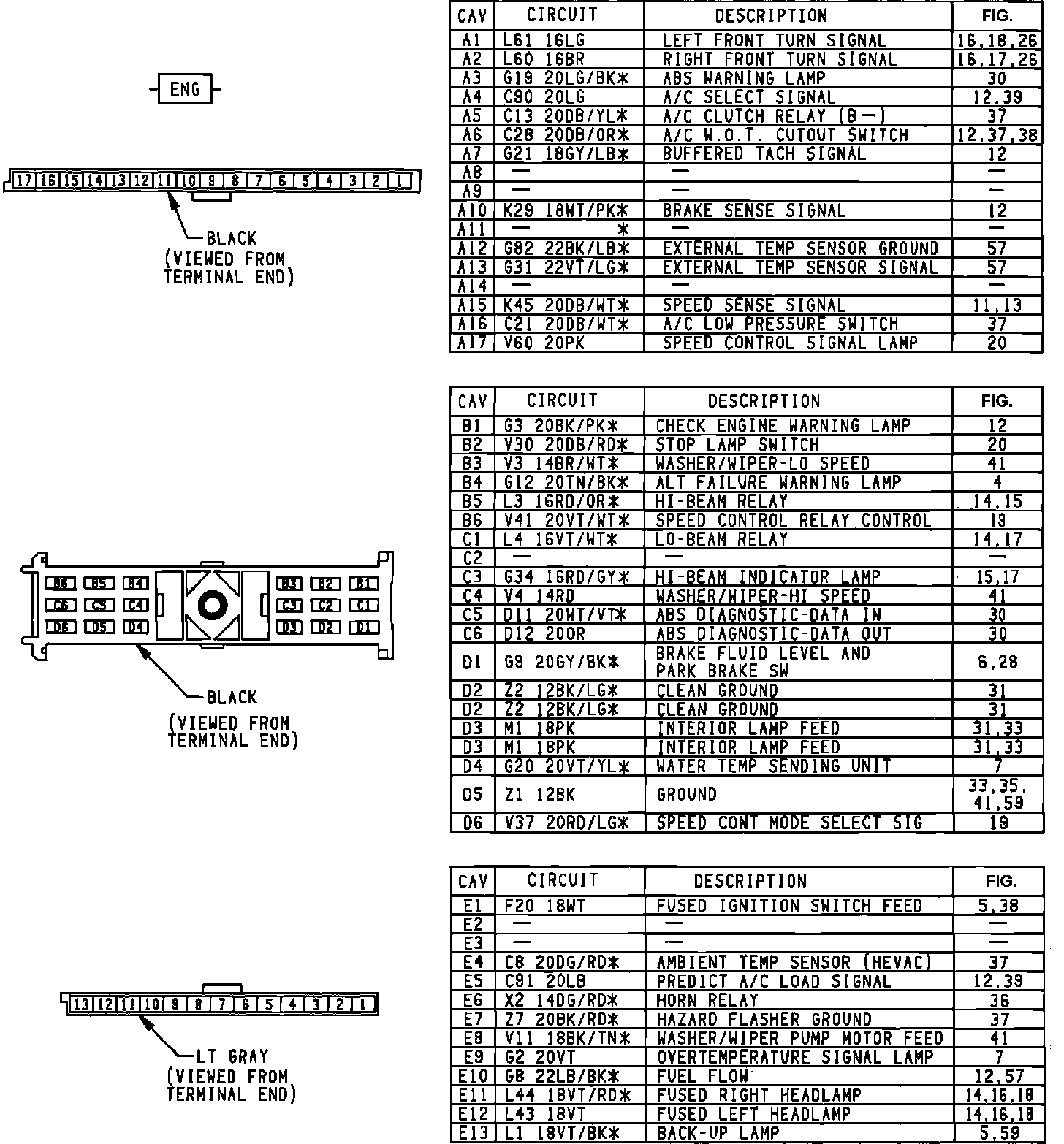

Instrument Panel To Engine Wiring:

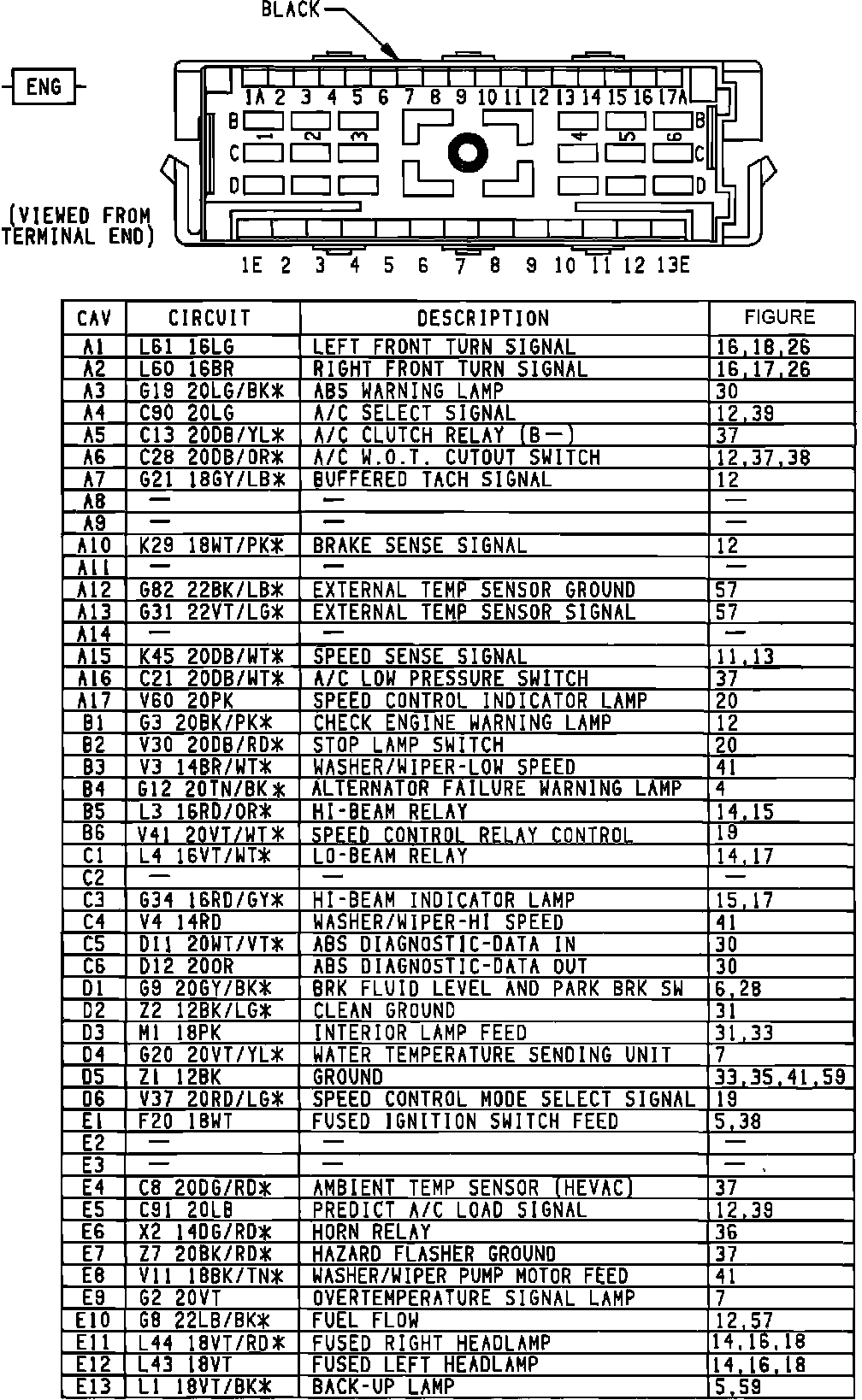

Engine Wiring To Instrument Panel:
