Home >> Dodge >> 1992 >> Dynasty V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> ABS Light Relay >> Locations

ABS Light Relay: Locations

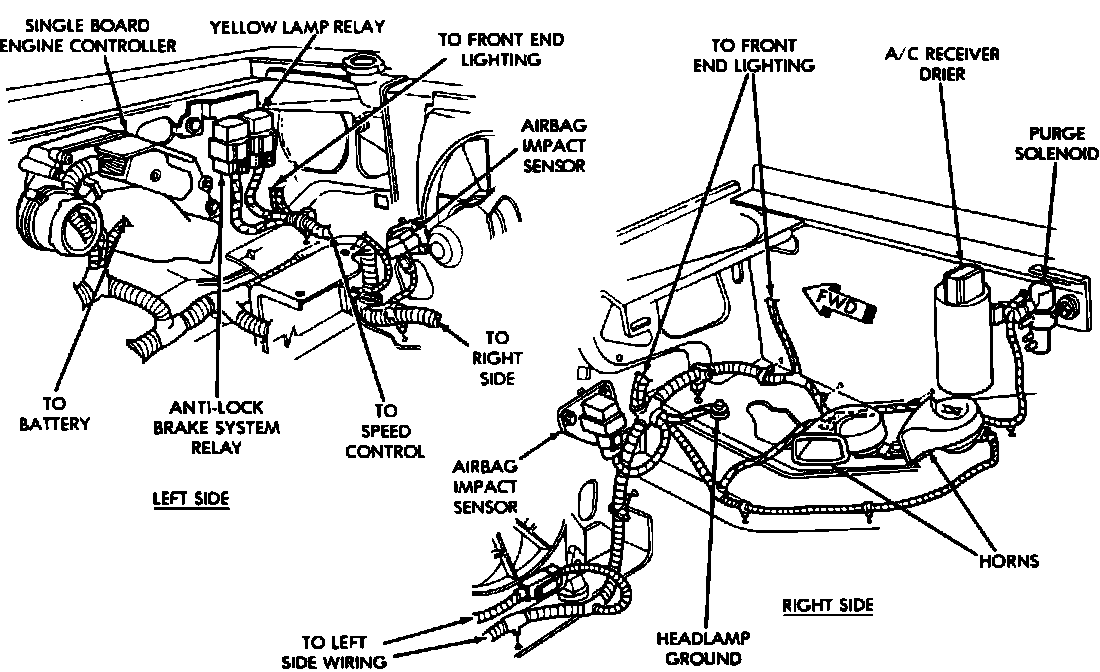

Front Engine Compartment Components & Connectors.:




Front LH Corner Of Engine Compartment

Applicable to: 1992 2.5L/4-153
