Suspension Control ( Automatic - Electronic )
>>
System Diagram
System Diagram

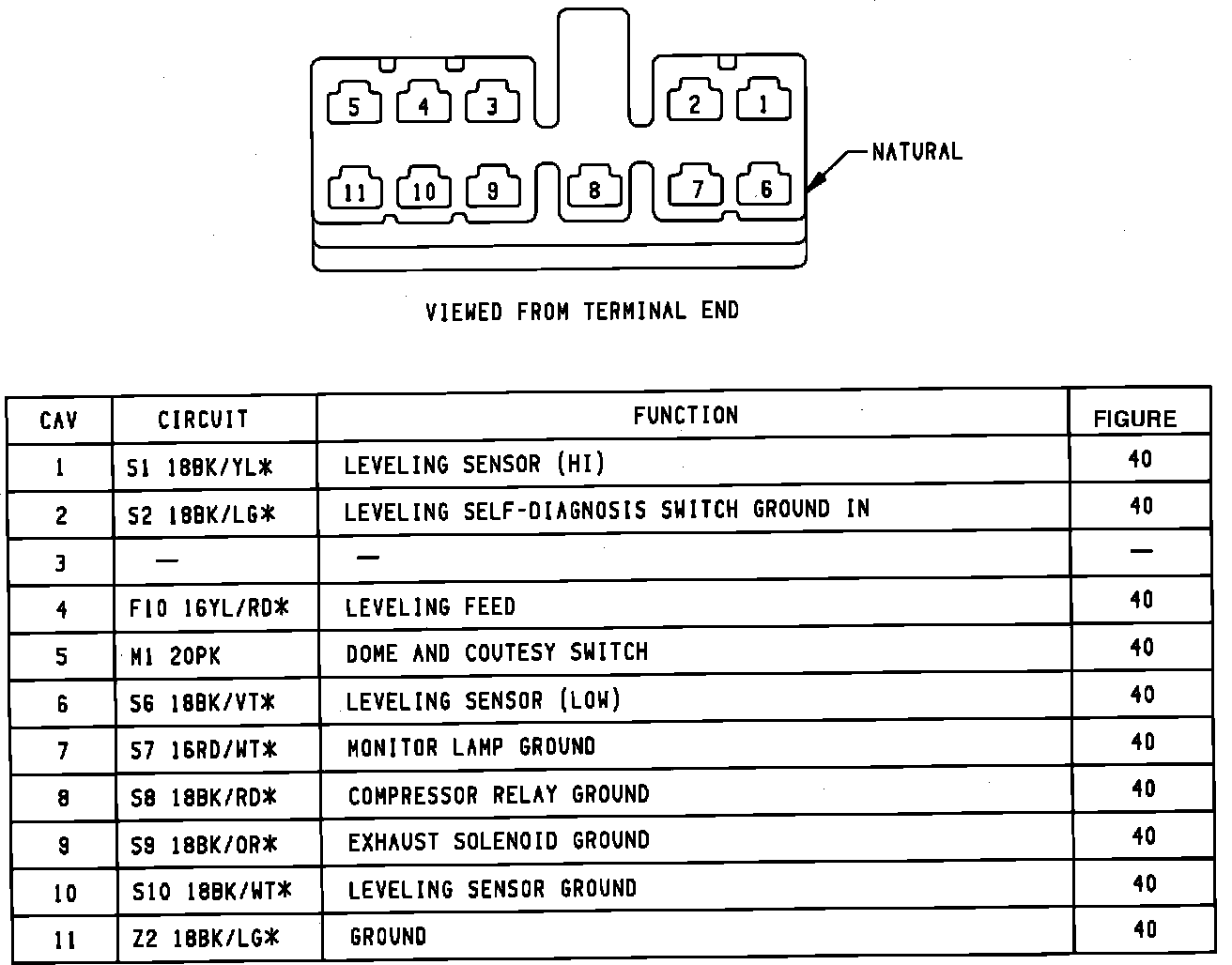

Automatic Air Load Leveling Connector:
