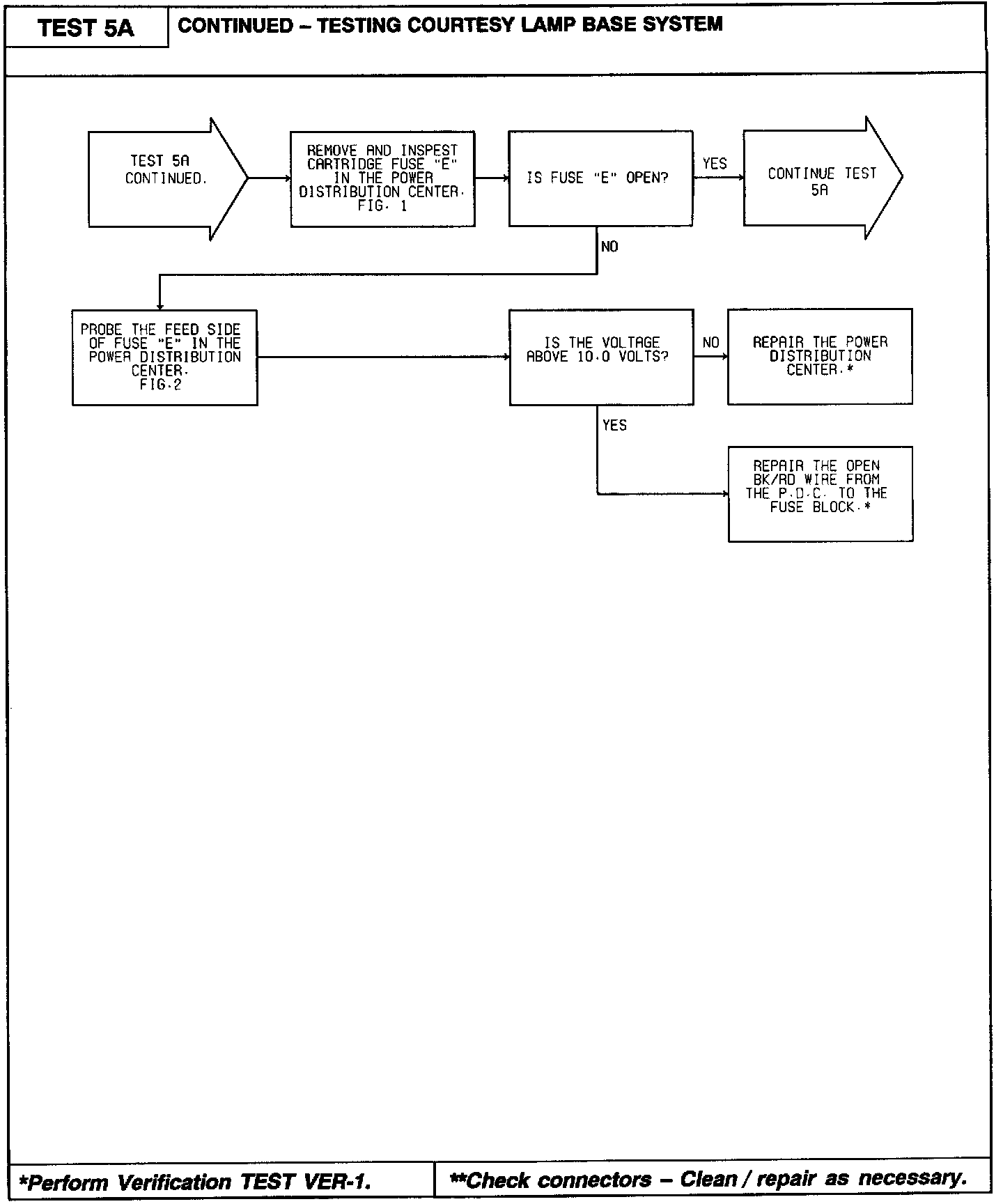

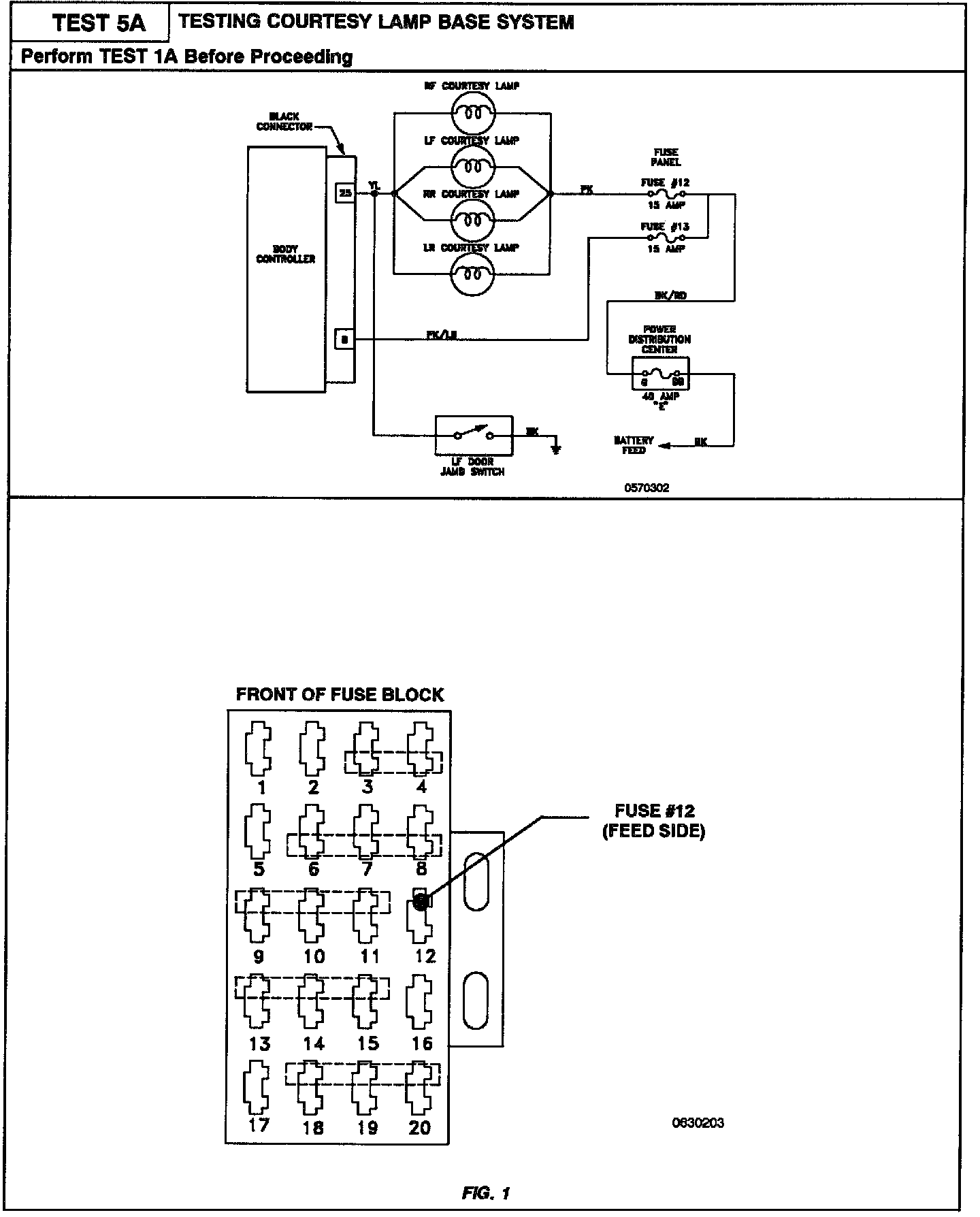

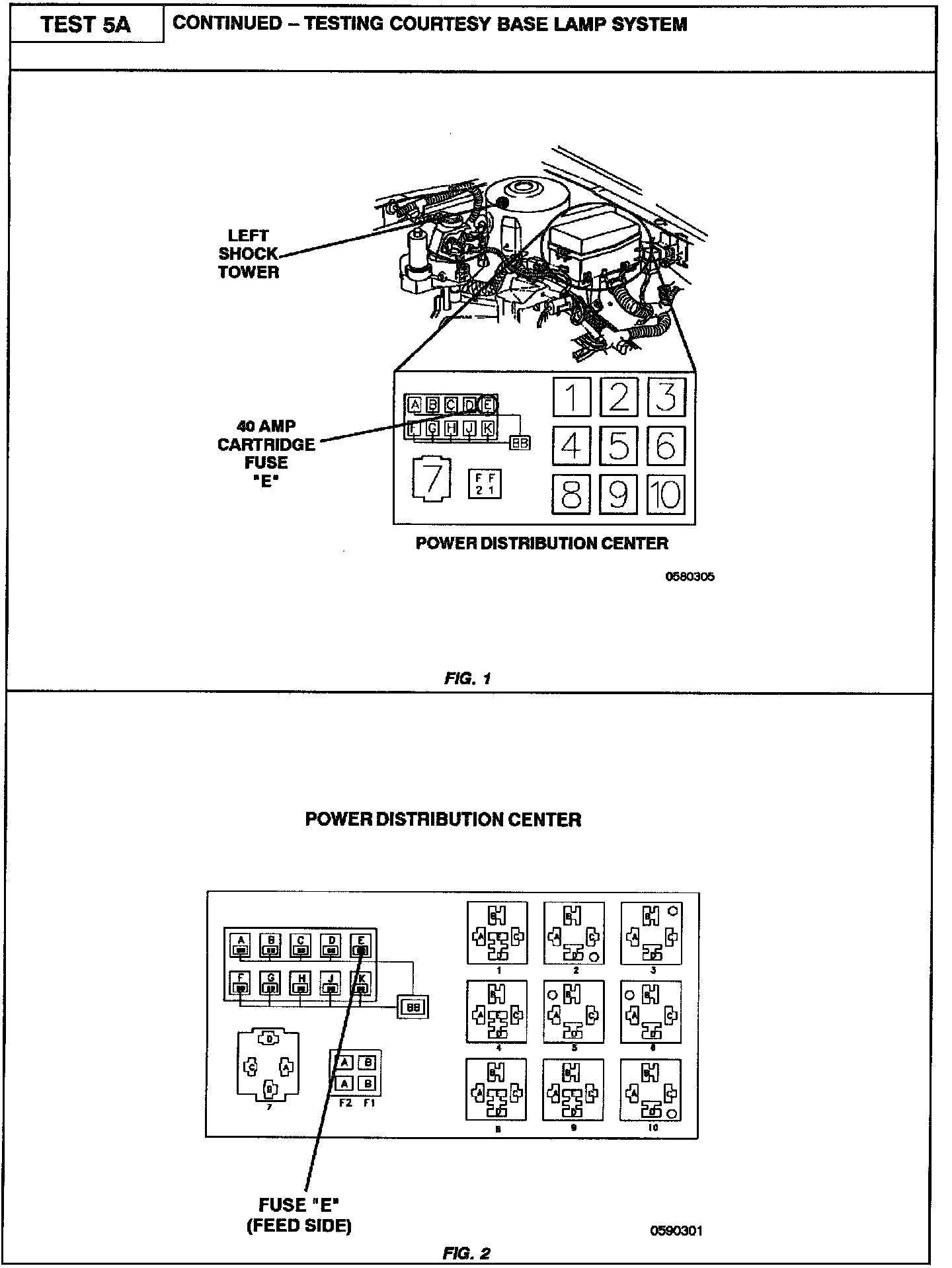

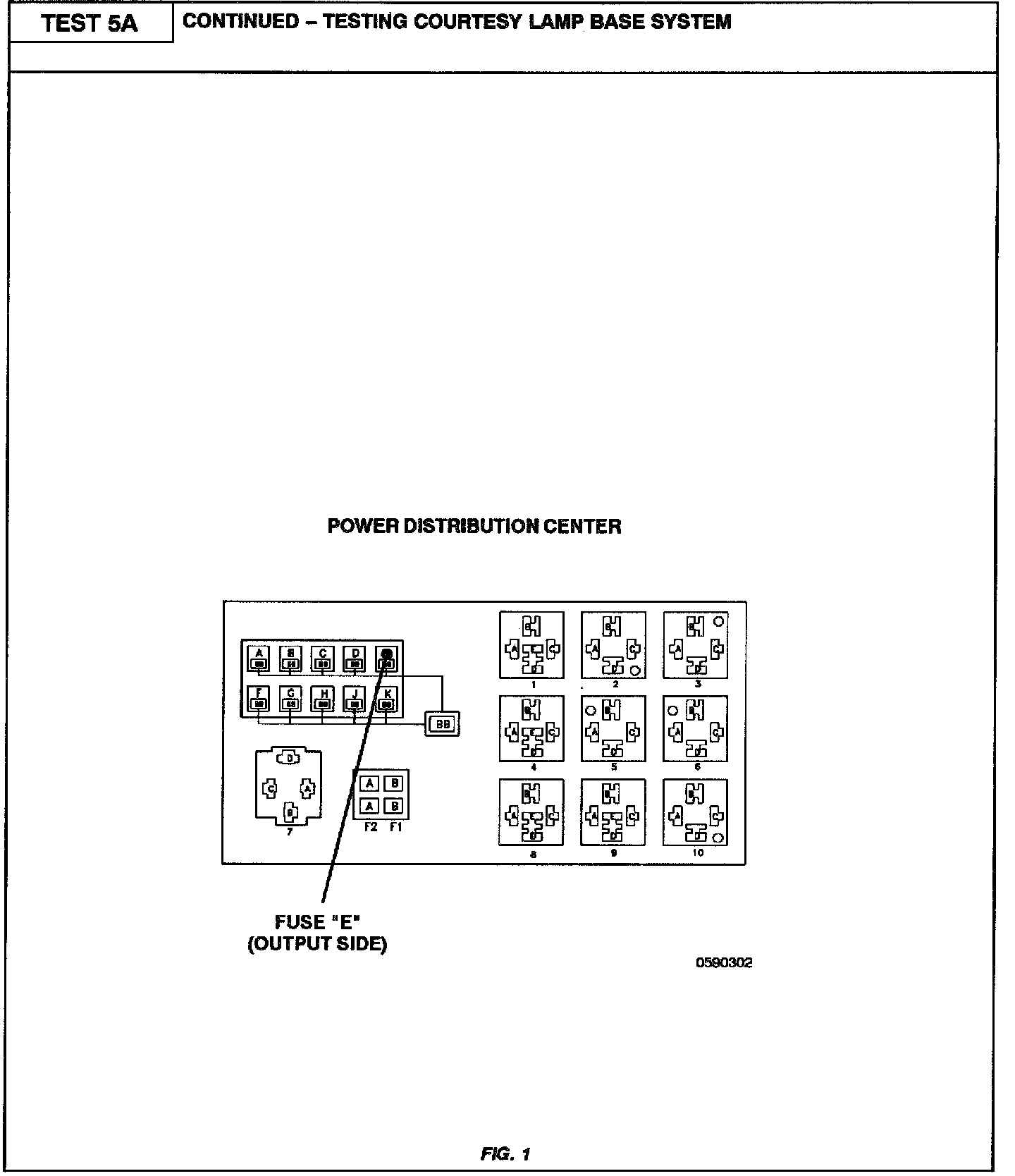

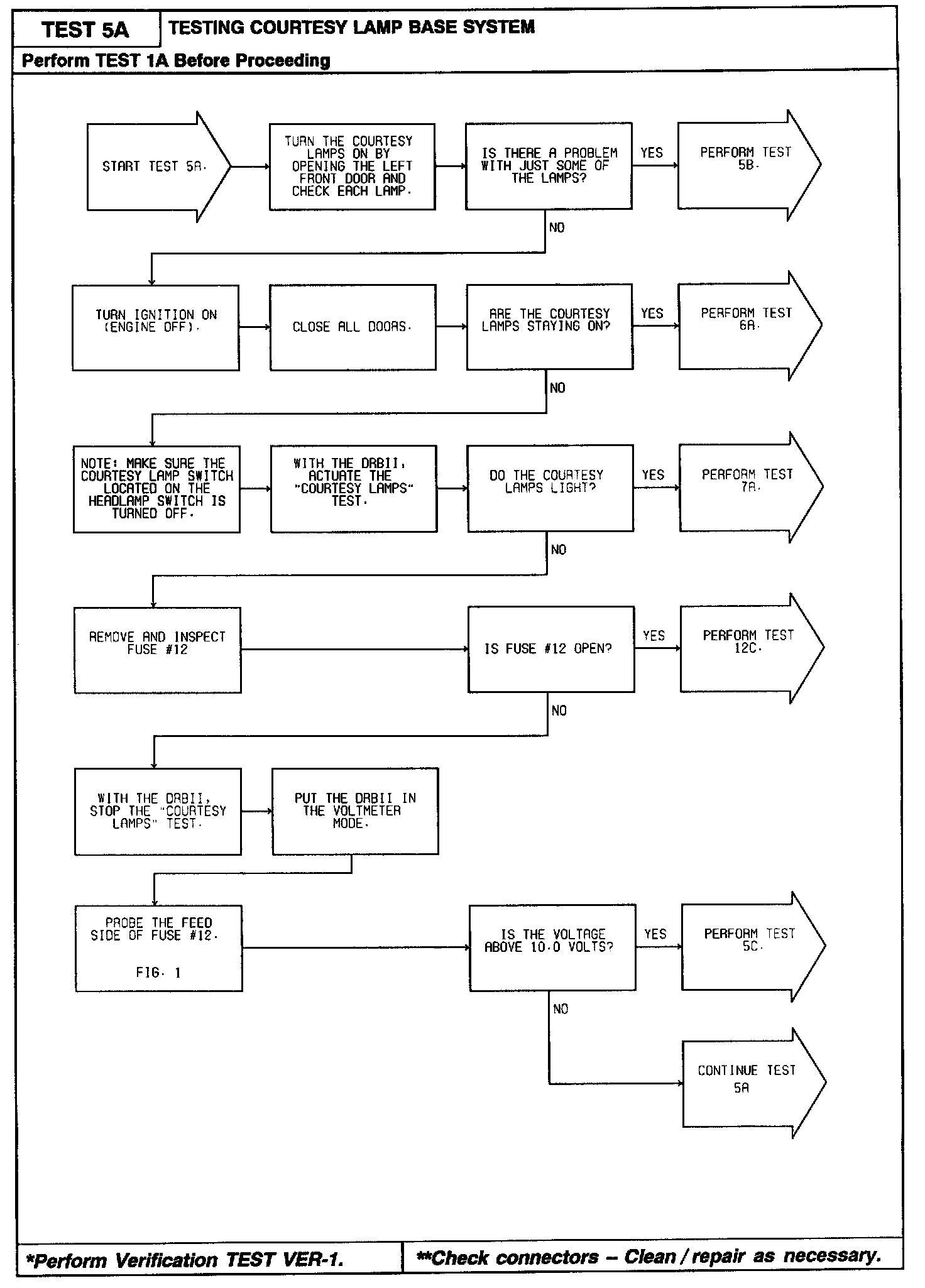

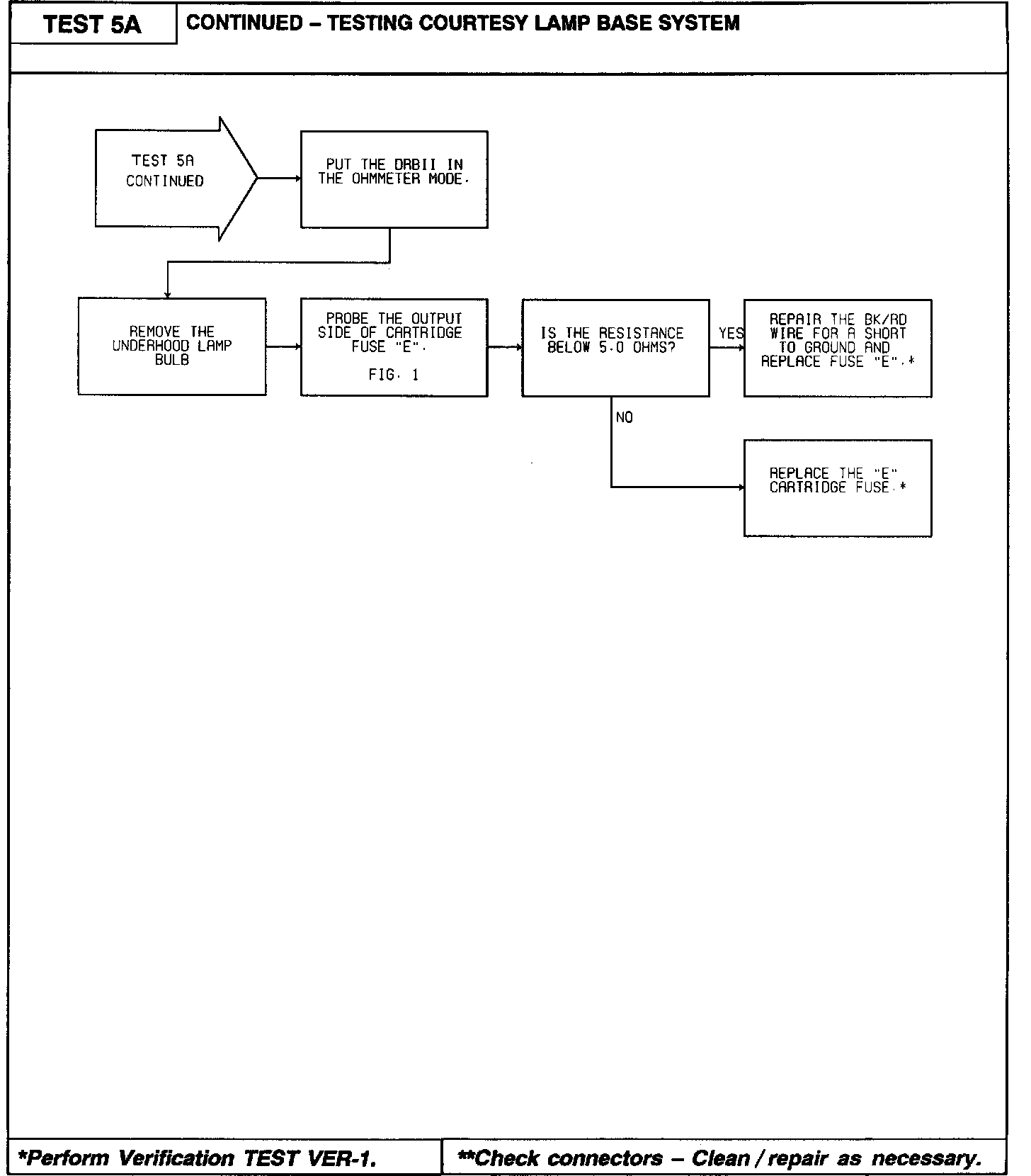

5A Testing Courtesy Lamp Base System








Part 1 of 3











Part 2 of 3










Part 3 of 3
