Dynasty V6-181 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

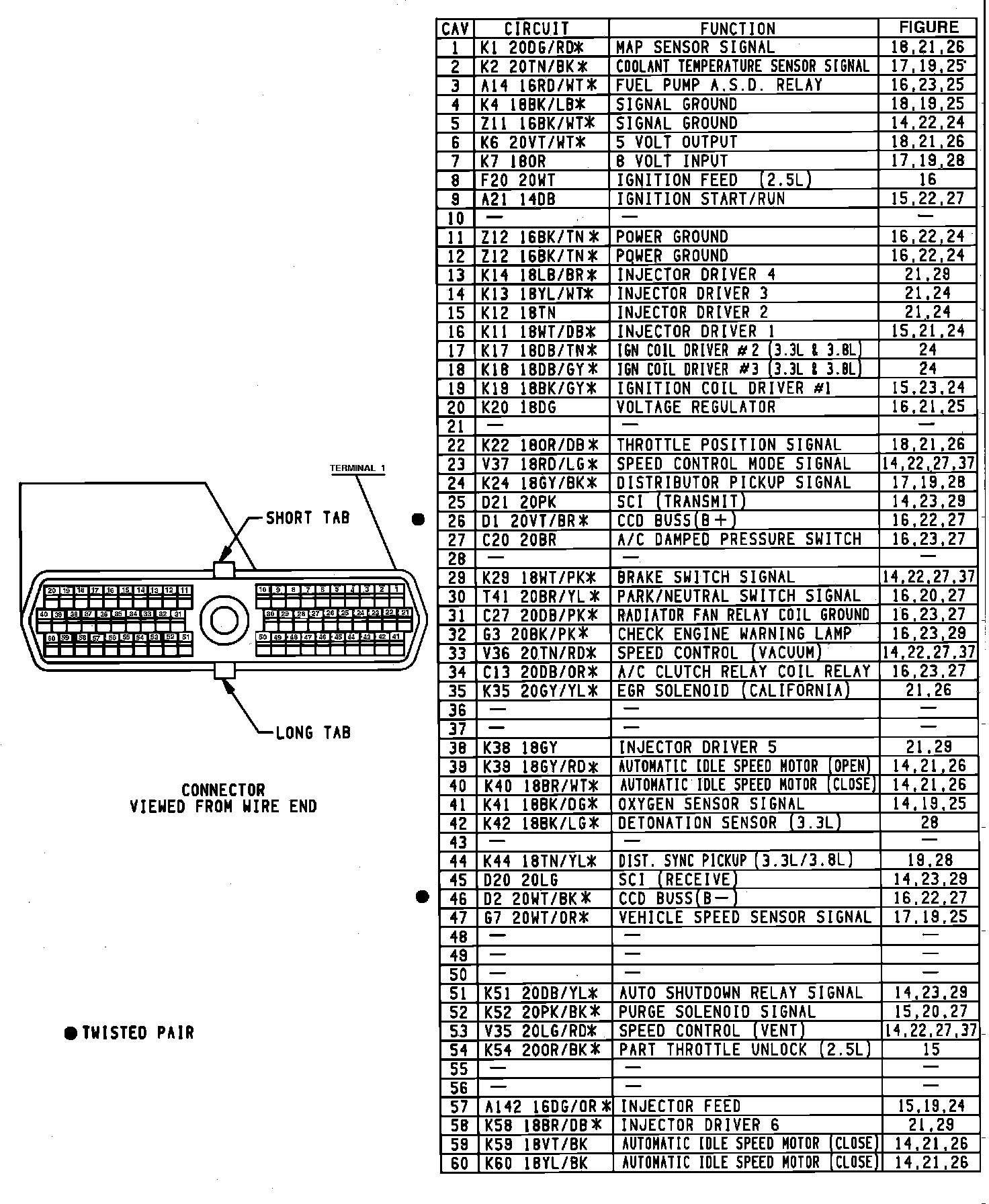

Engine Controller Connector Pin-out:
Engine Controller Connector:
