Home
>>
Dodge
>>
1992
>>
Dynasty V6-181 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
Fuse Block

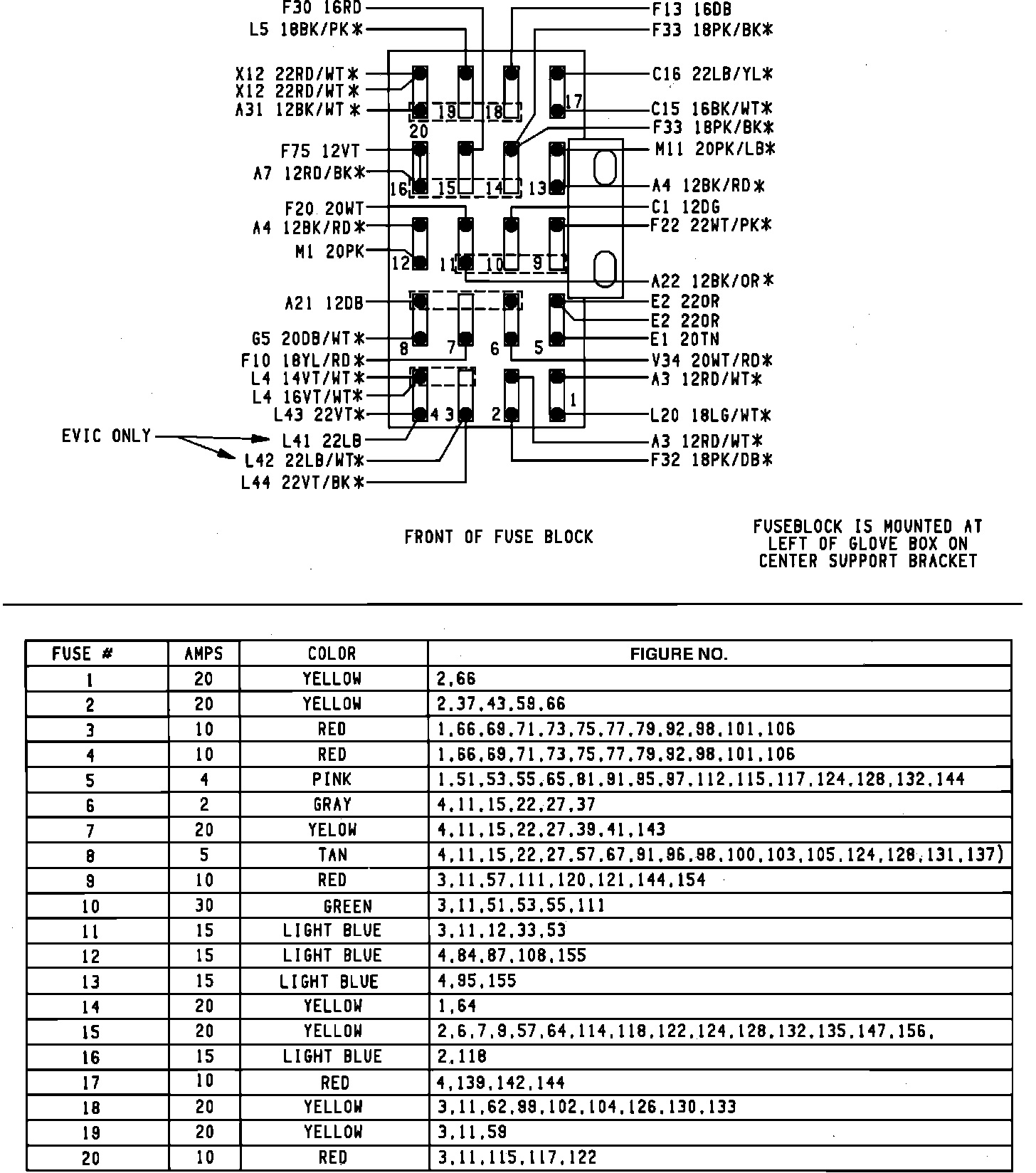

Fuse Block Module:
