Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1992
>>
Colt Vista AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

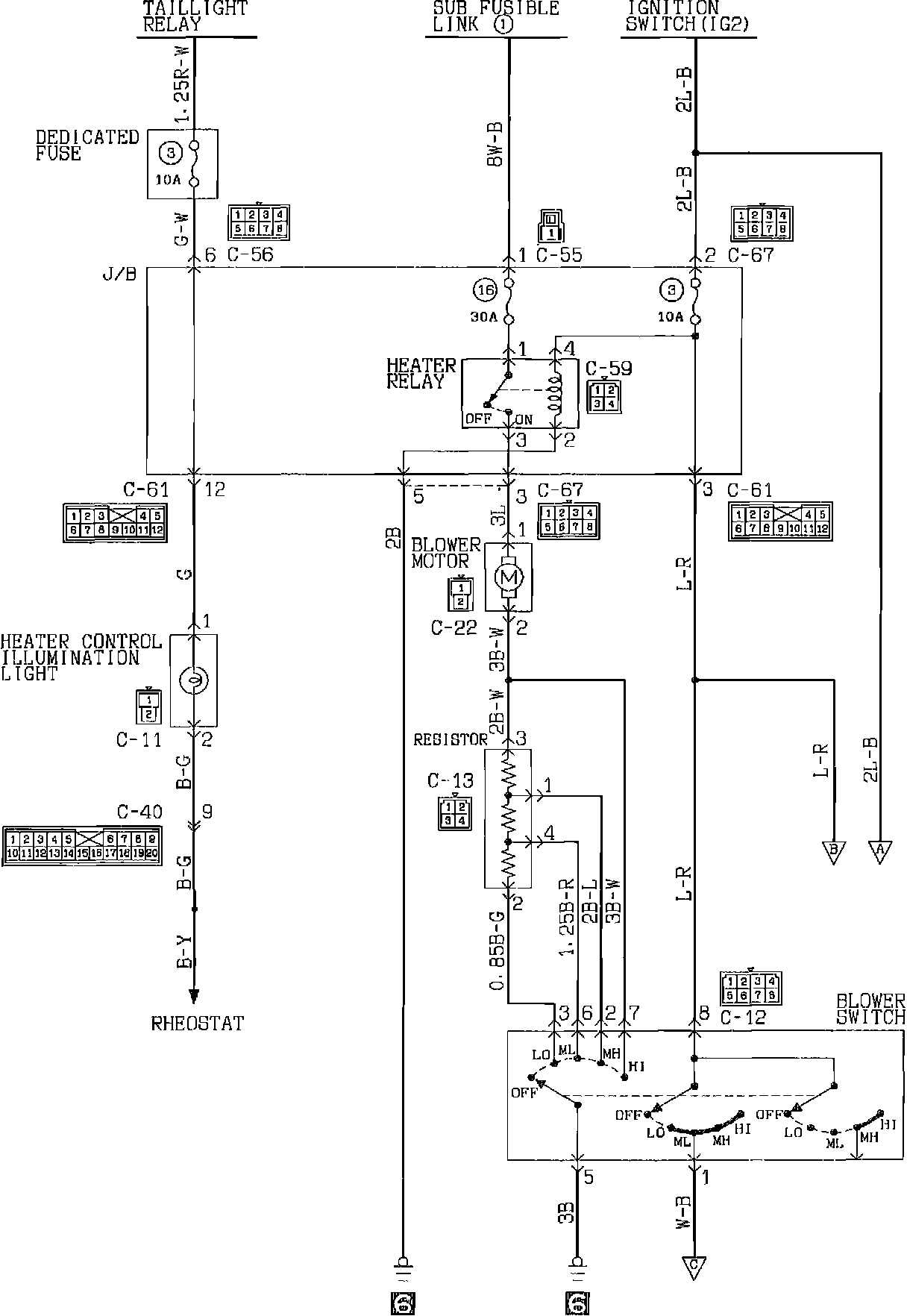

Air Conditioner And Heater:

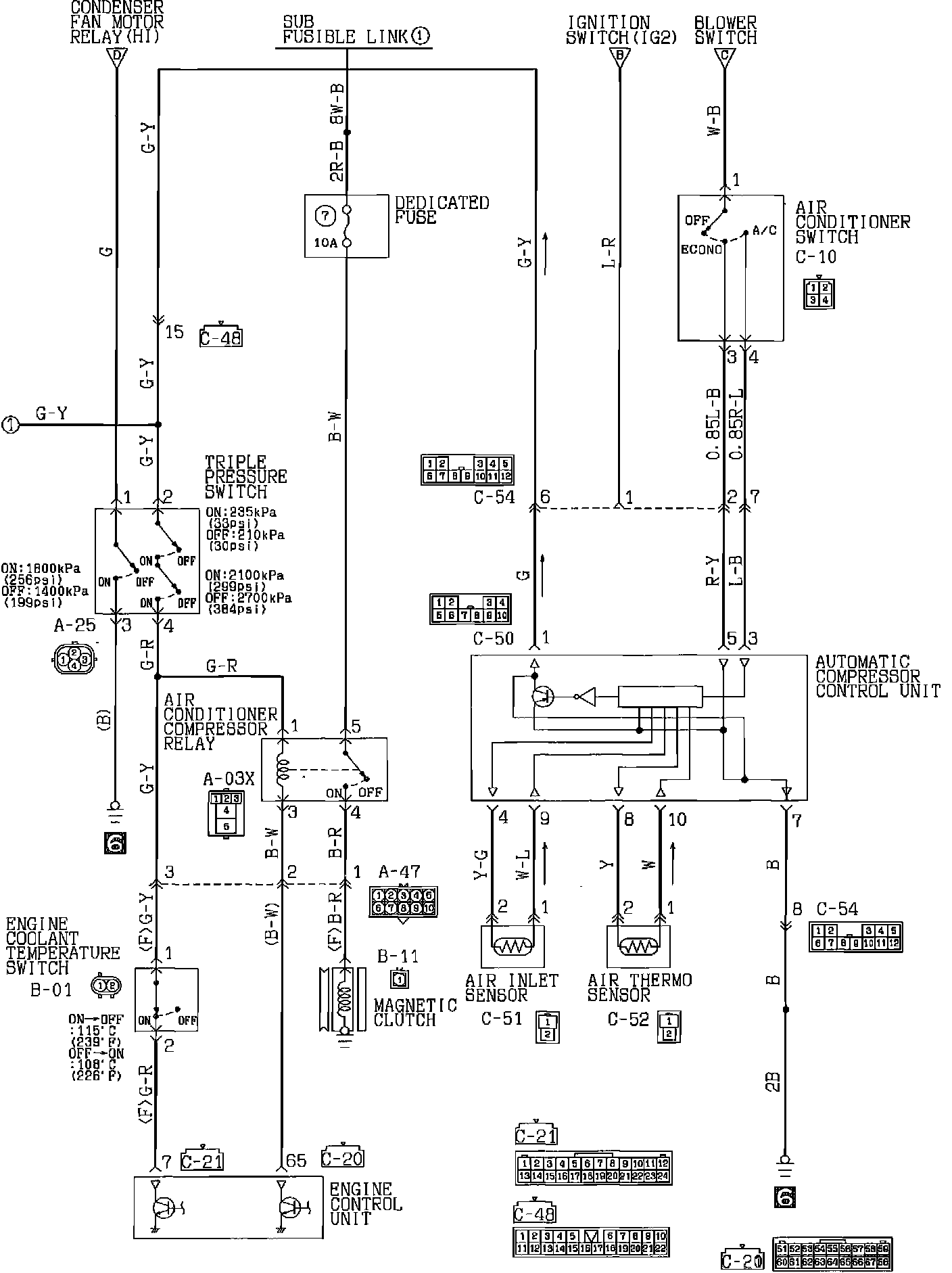

Air Conditioner And Heater:
Air Conditioner And Heater:
