Assembly

A. SPEEDOMETER DRIVEN GEAR INSTALLATION

Apply ATF sparingly to the speedometer driven gear shaft and insert the shaft.

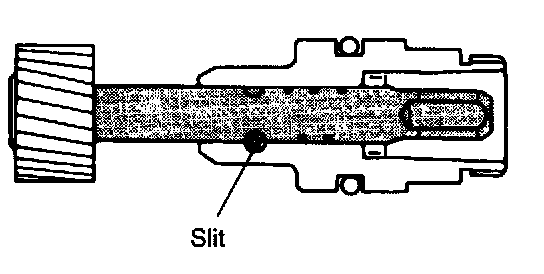

B. SPRING PIN INSTALLATION

Install the spring pin in such a way that its slit does not face the gear shaft.
