Home >> Dodge >> 1992 >> Colt Vista AWD L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations

Heating and Air Conditioning: Locations

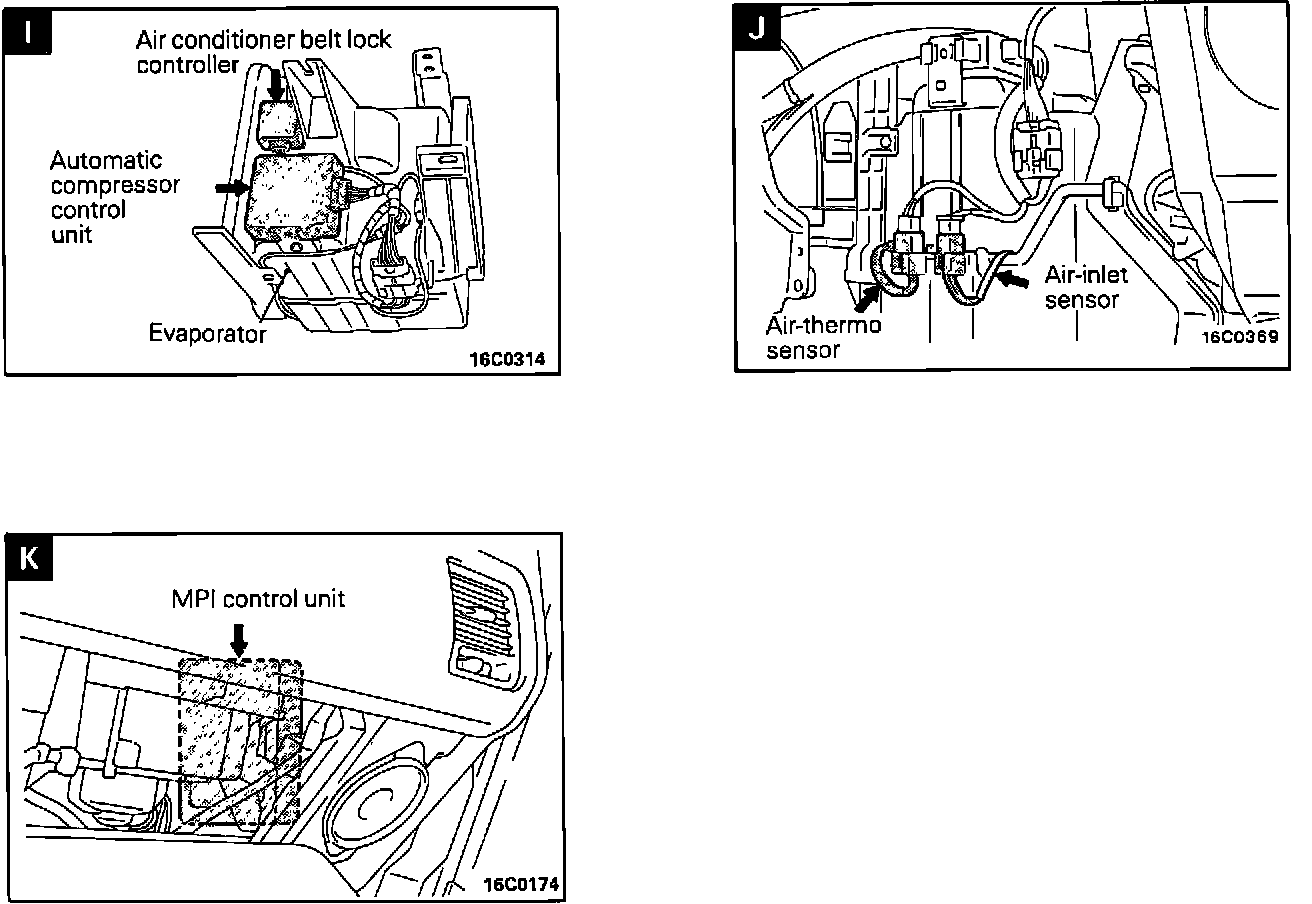

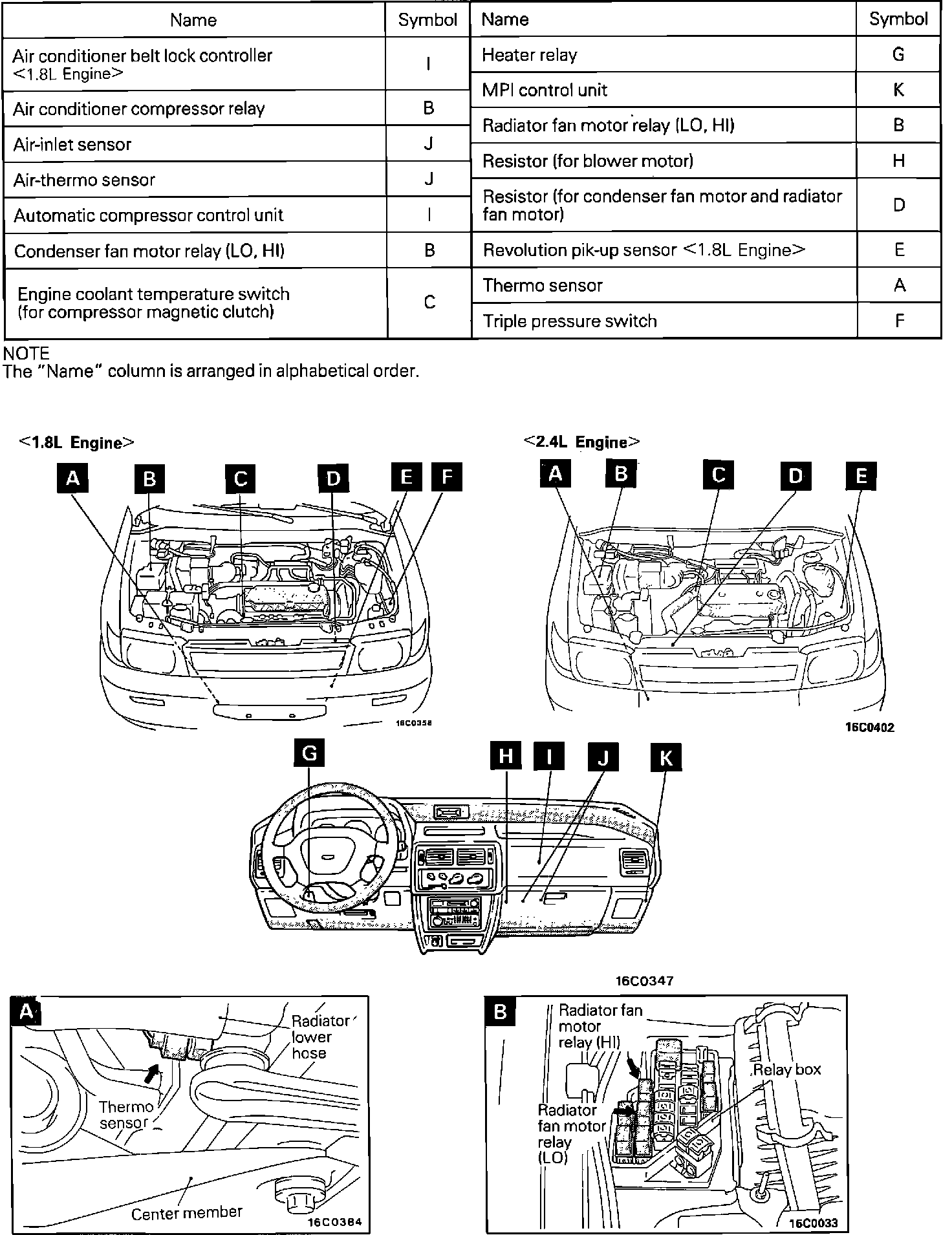

Component/Relay/Switch Locations (Air Conditioner And Heater):



Component/Relay/Switch Locations (Air Conditioner And Heater):



Component/Relay/Switch Locations (Air Conditioner And Heater):
