Chart E2 - Output Abnormality of Wheel Speed Sensor

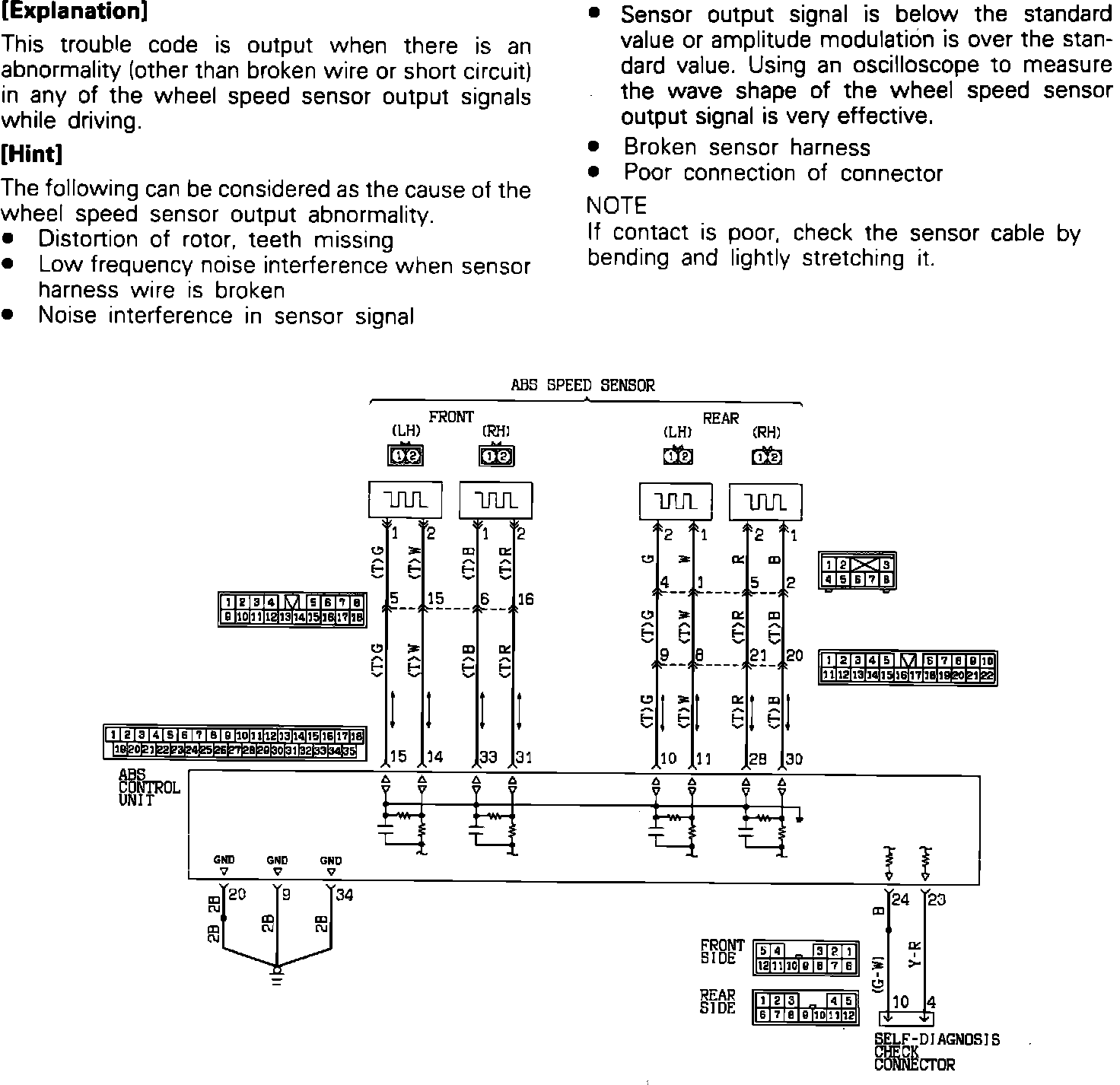

Fig. 36 ABS Chart E-2, Wheel Speed Sensor Output Abnormality (Part 1 Of 2):

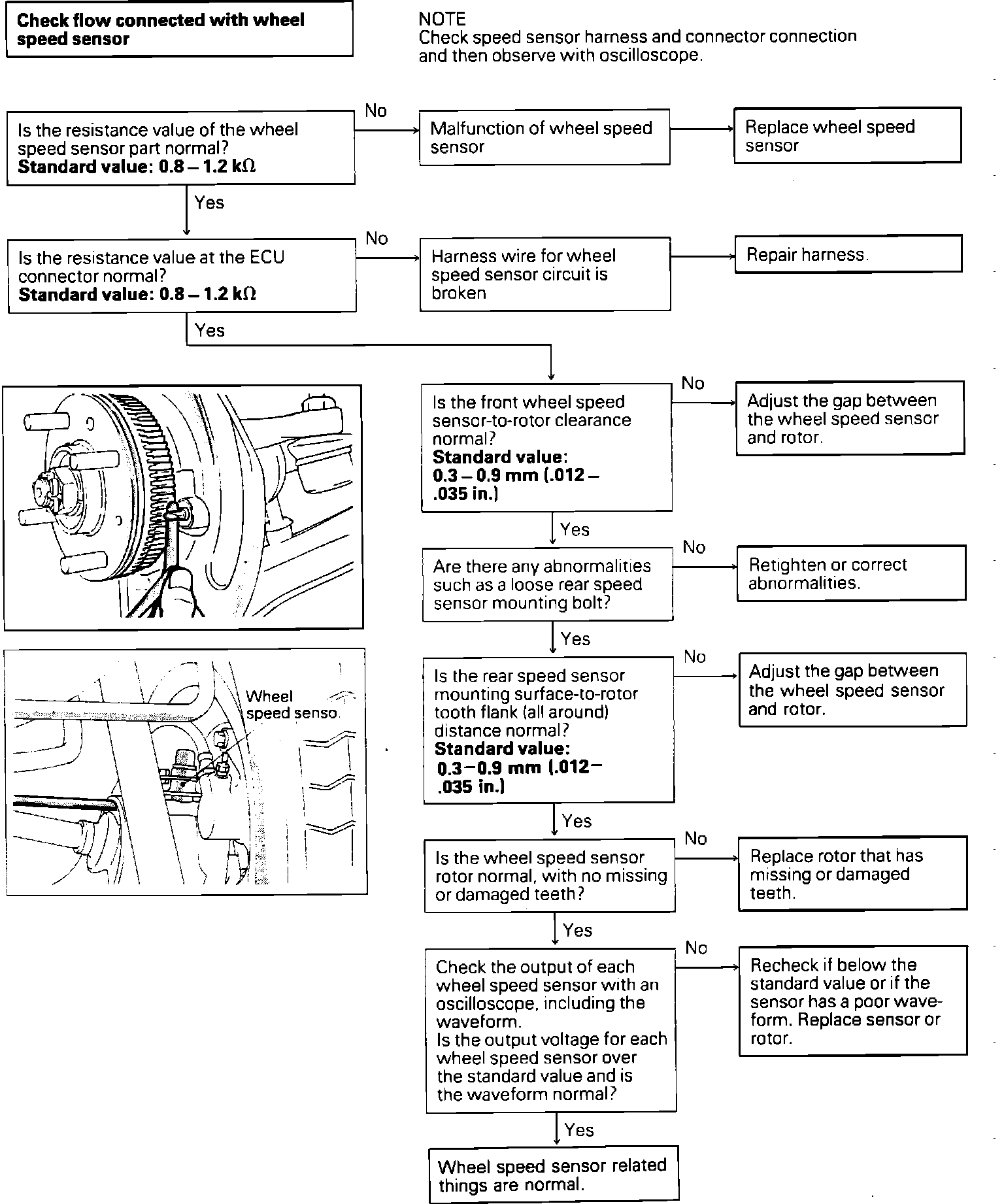

Fig. 36 ABS Chart E-2, Wheel Speed Sensor Output Abnormality (Part 2 Of 2):
