Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1992
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Ignition Switch
>>
Diagrams
>>

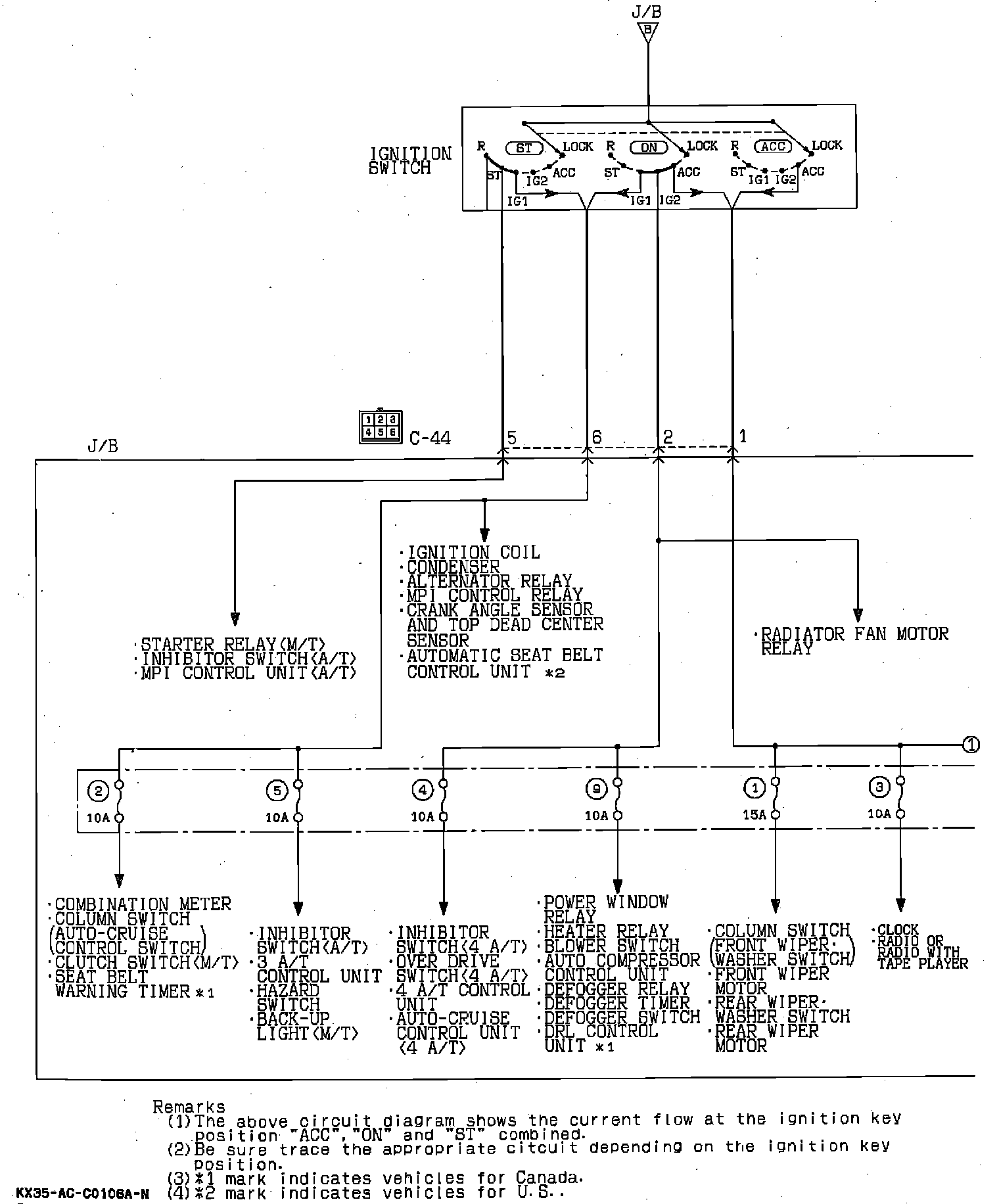

Electrical Diagrams
Electrical Diagrams

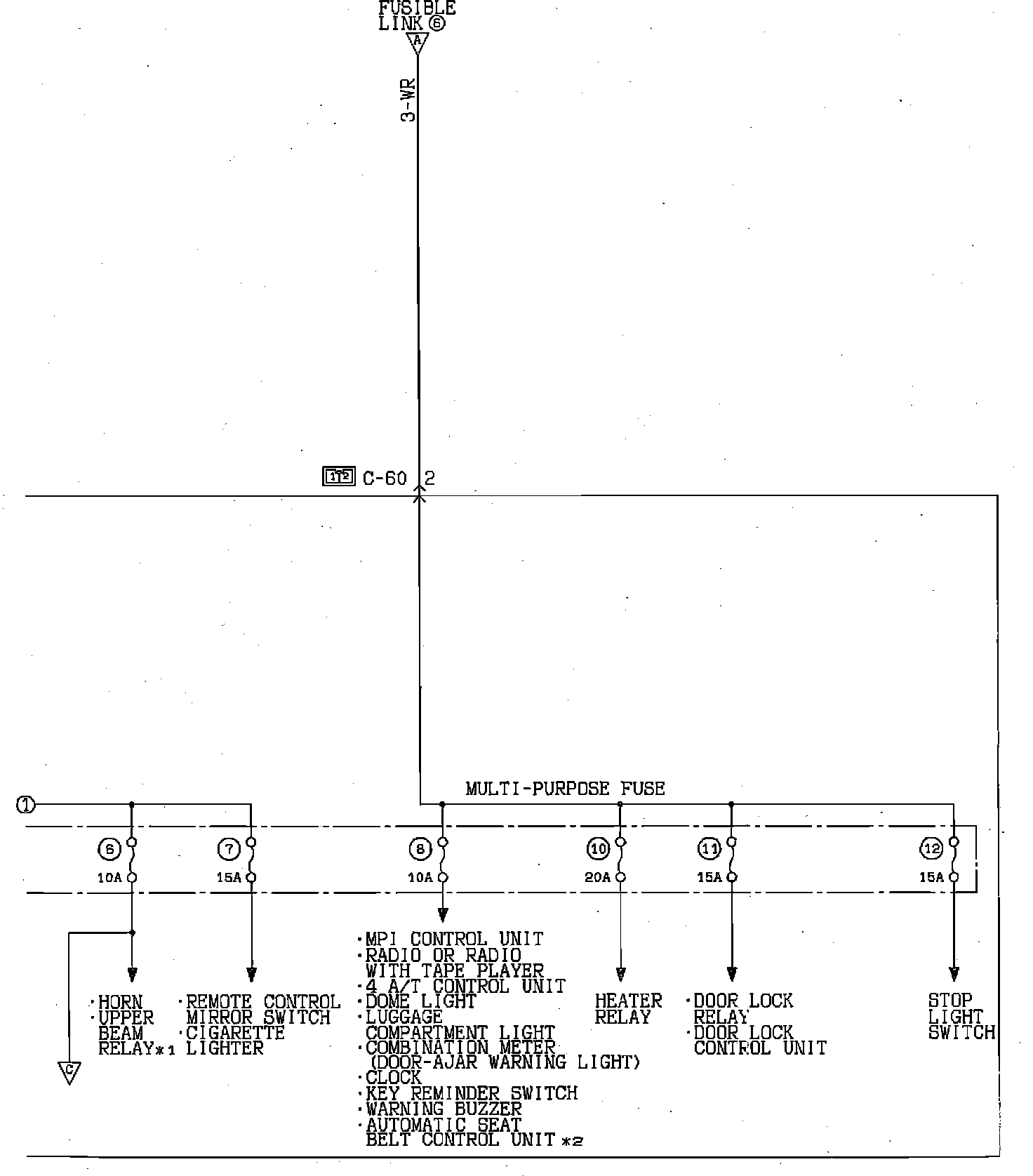

Power Distribution:
Power Distribution:
