Home >> Dodge >> 1992 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Canister Purge Solenoid >> Locations

Canister Purge Solenoid: Locations

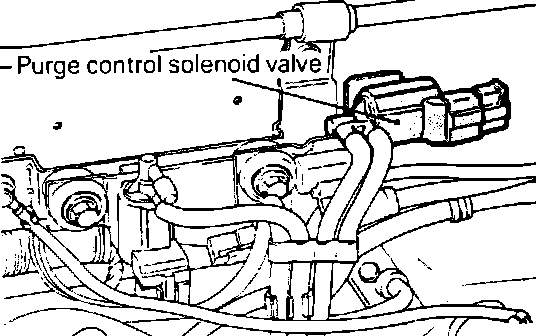

Purge Control Solenoid Location:






On the firewall, near the top, at the center.
