DS-01 Thru DS-45 Interior Connector Locations
DS-01 Thru DS-45 Interior Connector Locations

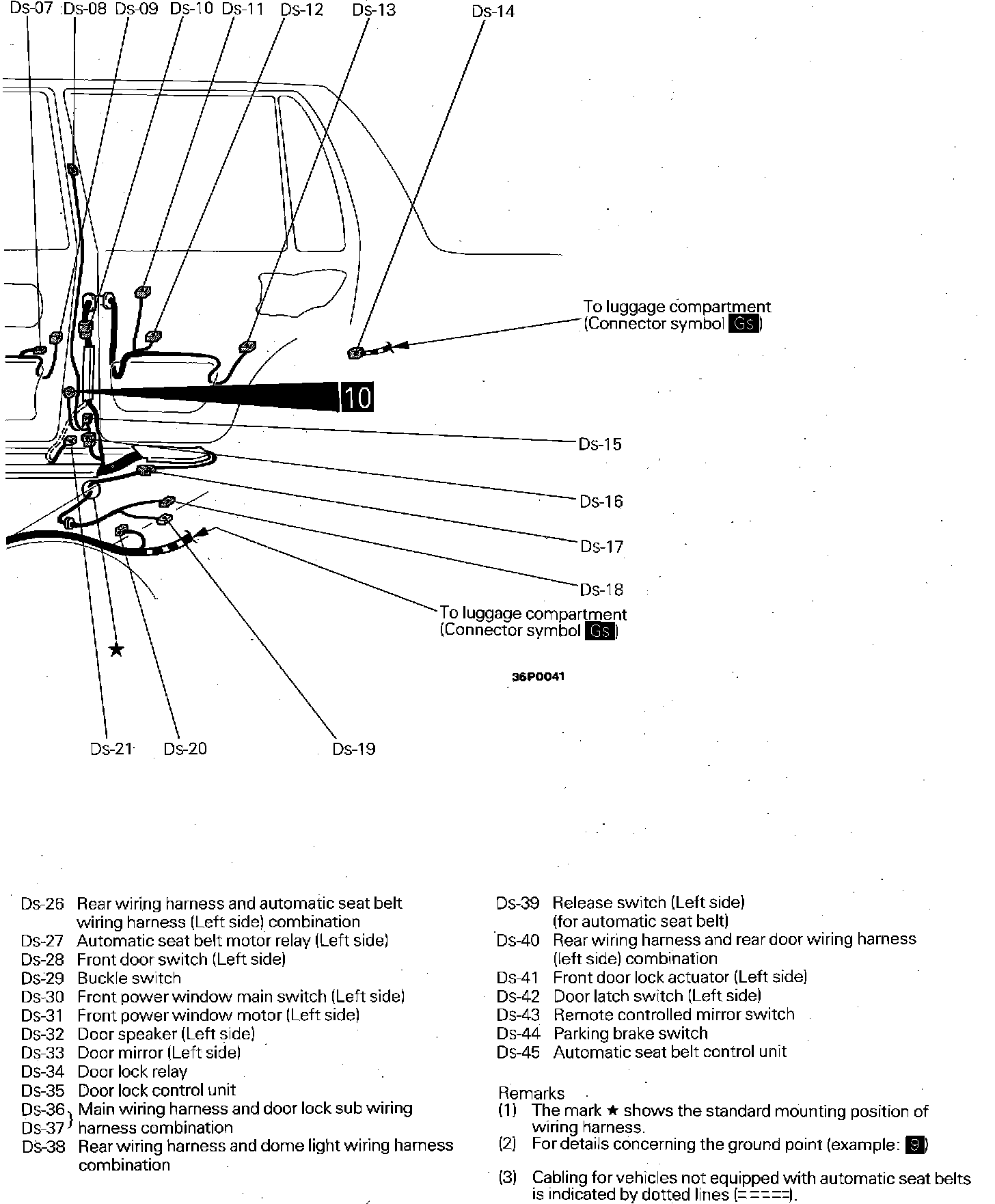

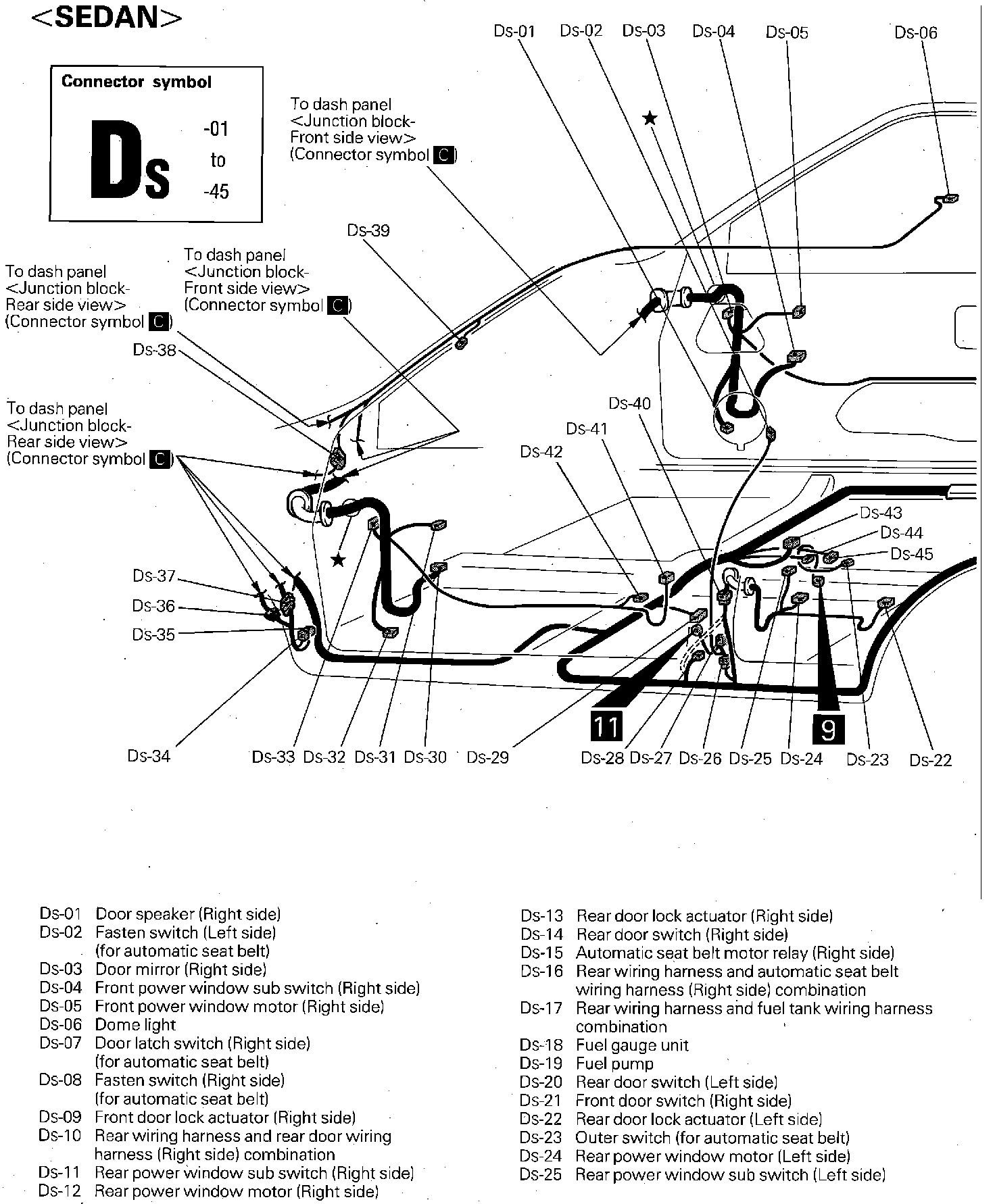

Connector Locations (Interior):
Connector Locations (Interior):
