Home >> Dodge >> 1992 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> License Plate Lamp >> Diagrams >> Electrical Diagrams >> Hatchback

Hatchback

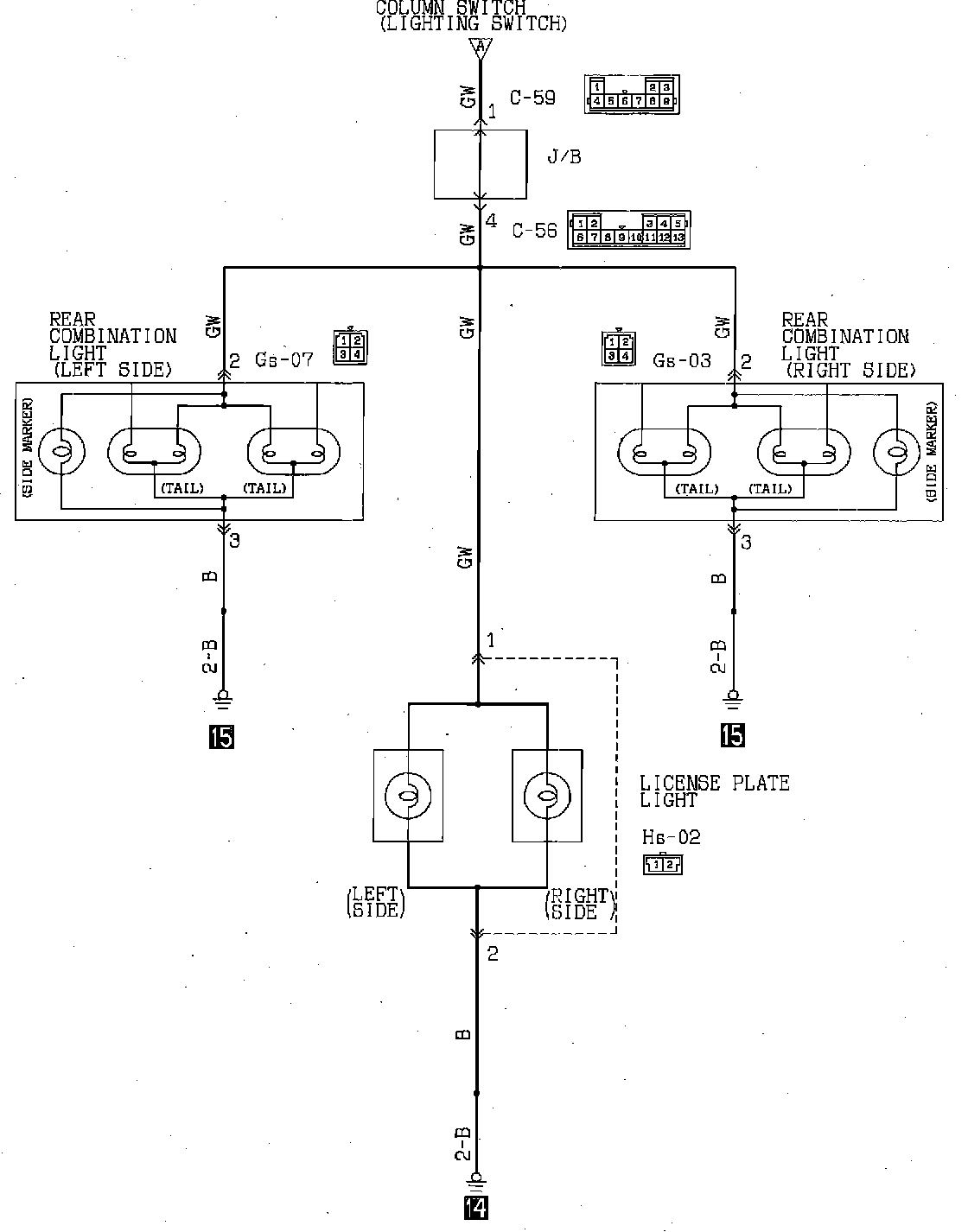

Tail, Side-Marker, Clearance And License Plate Lamps:

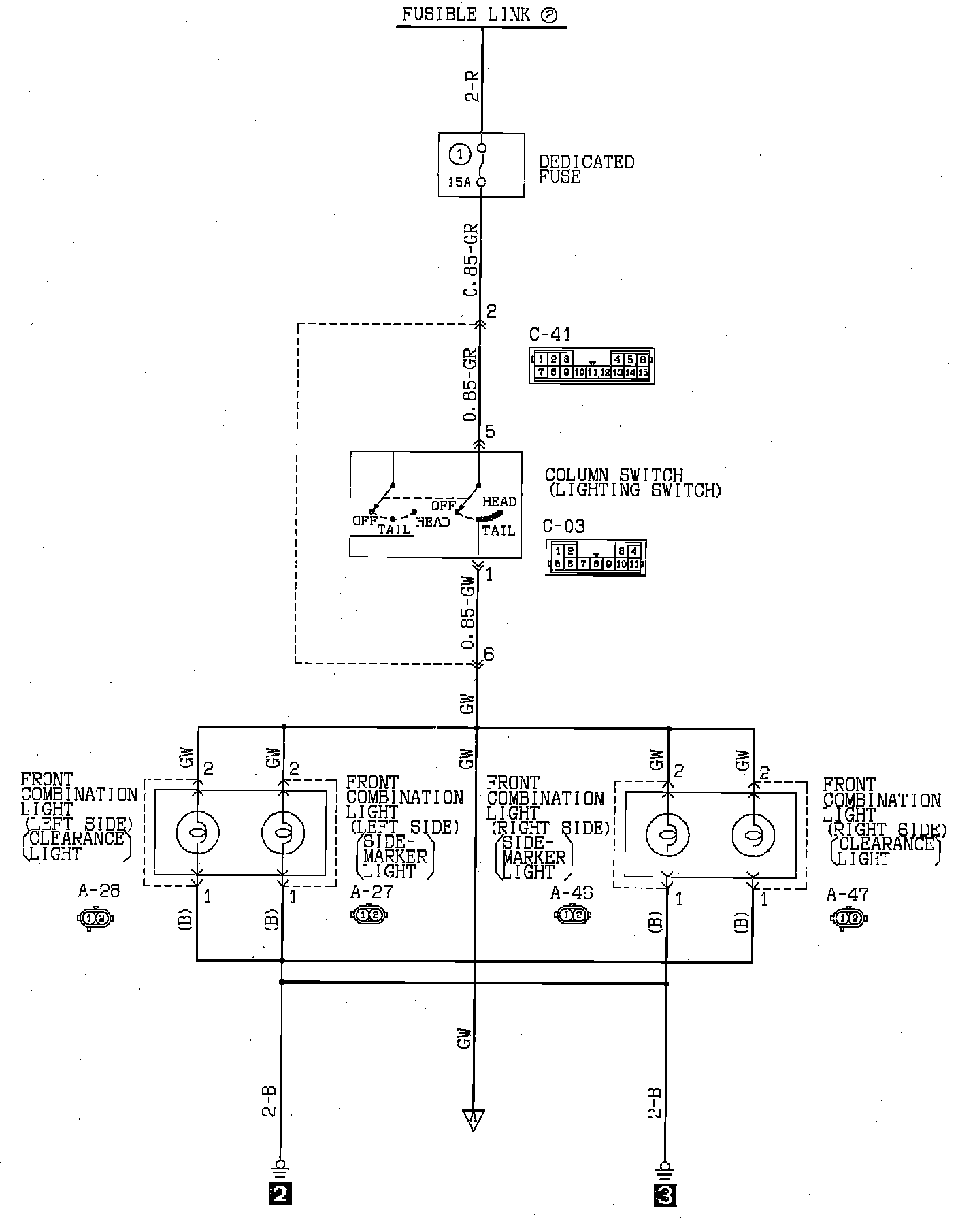

Tail, Side-Marker, Clearance And License Plate Lamps (Sedan):
