Home >> Dodge >> 1992 >> Colt L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Diagrams >> Electrical Diagrams >> With Daytime Running Lights

With Daytime Running Lights

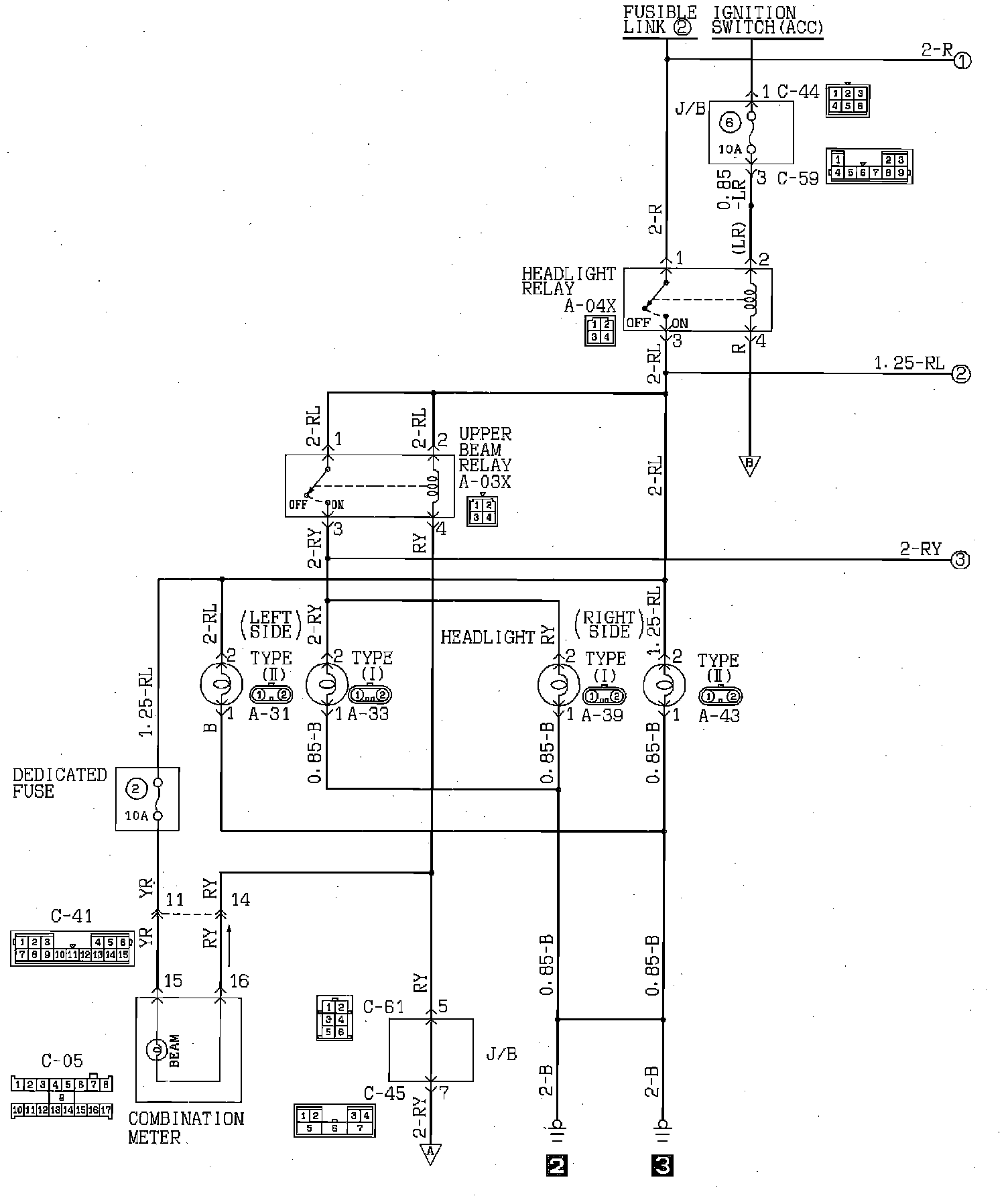

Headlights (Canada):

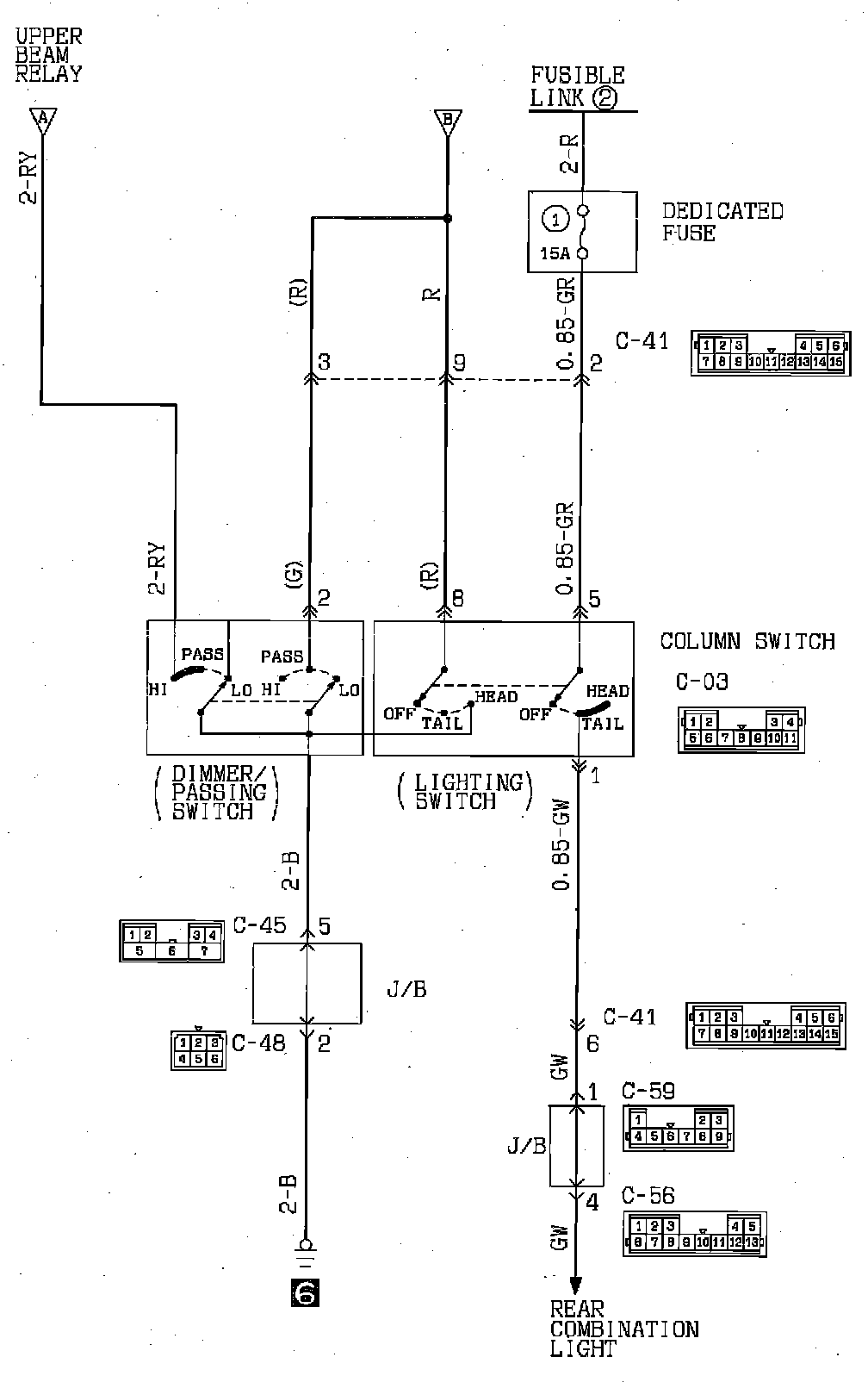

Headlights (Canada):

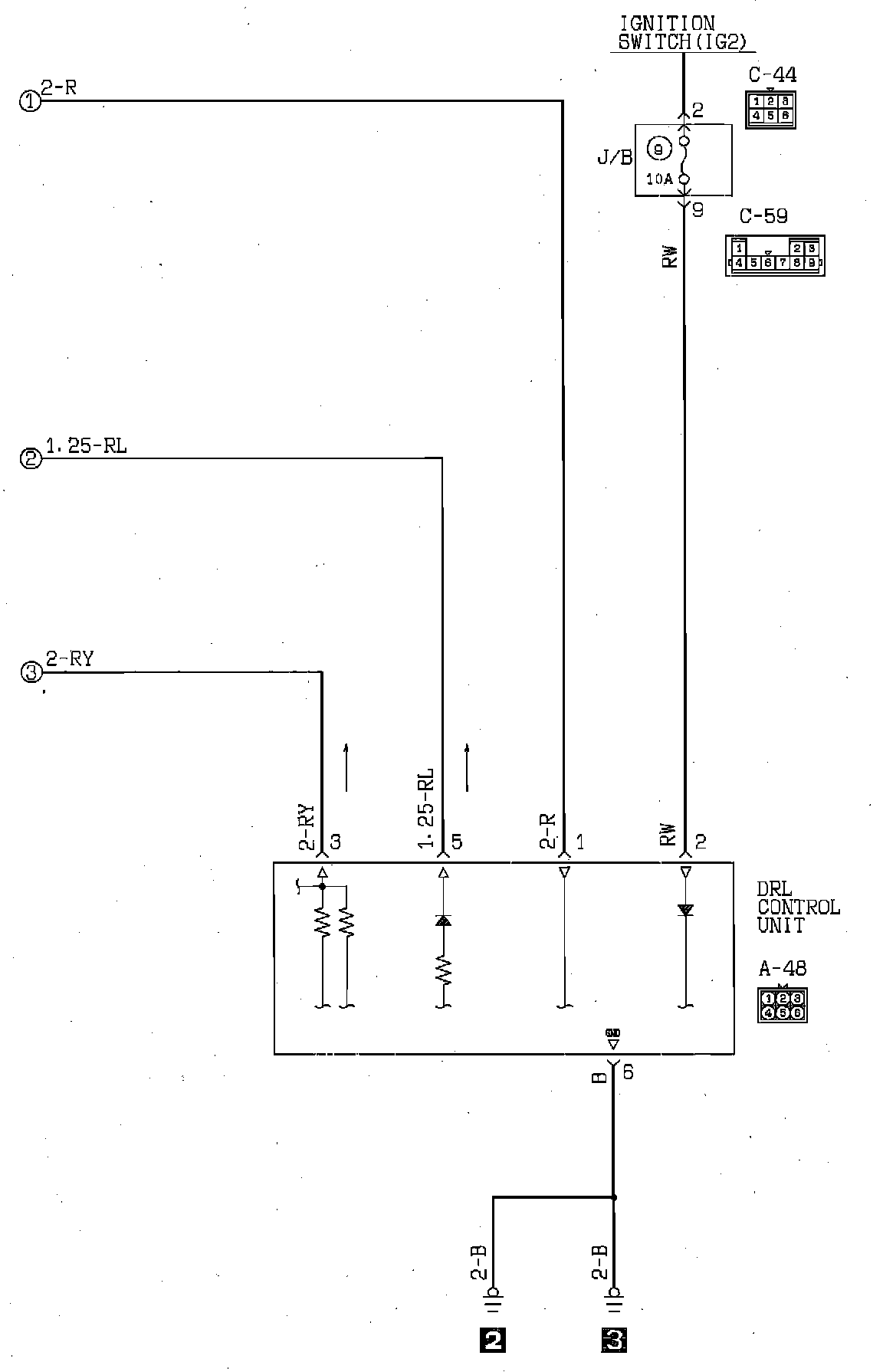

Headlights (Canada):
