Home
>>
Dodge
>>
1992
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

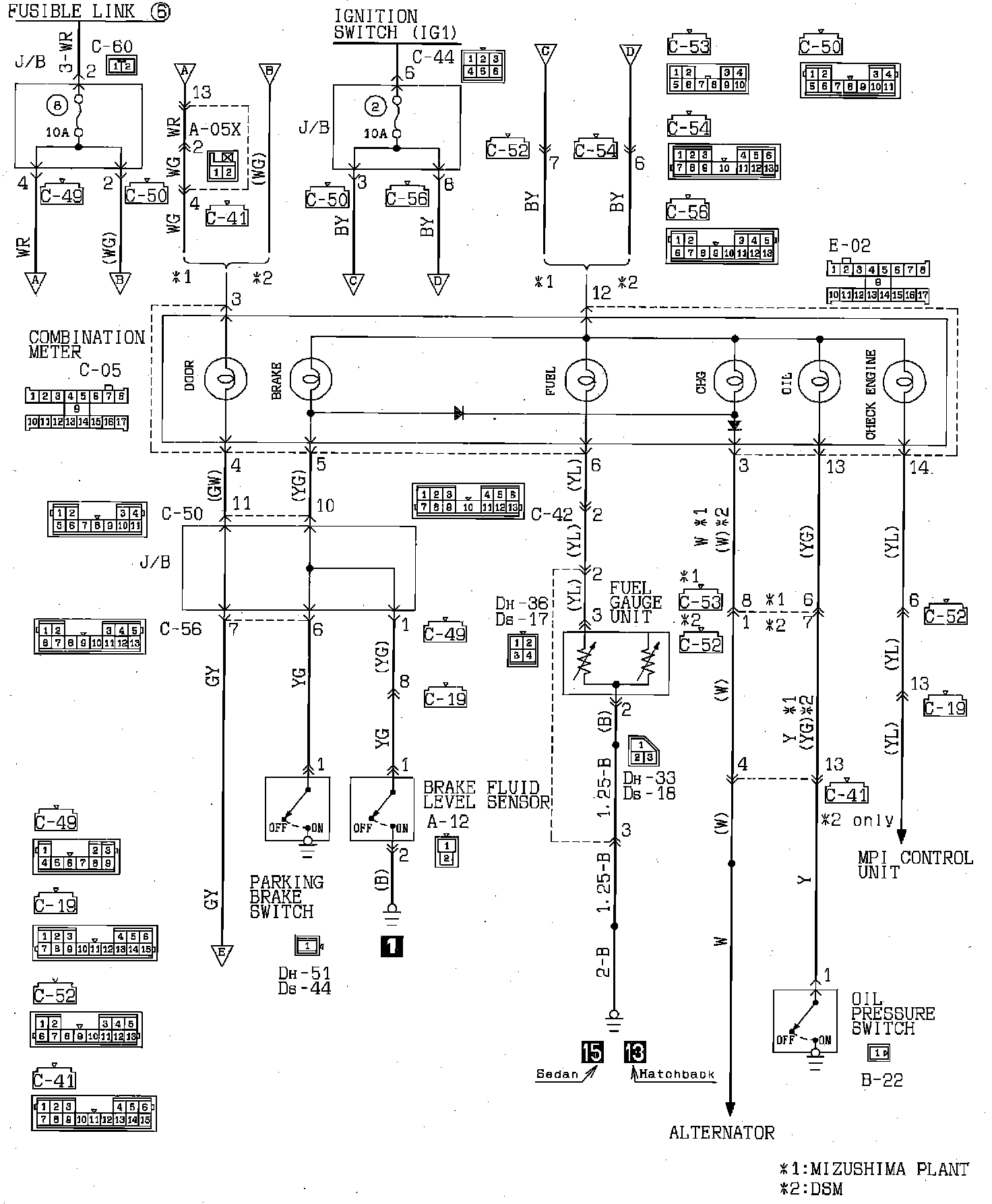

System Diagram
>>
Warning Systems
Warning Systems
Instrument Panel (Warnings):
Instrument Panel (Warnings):
