Home
>>
Dodge
>>
1992
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
E Connectors - Instrument Panel
E Connectors - Instrument Panel

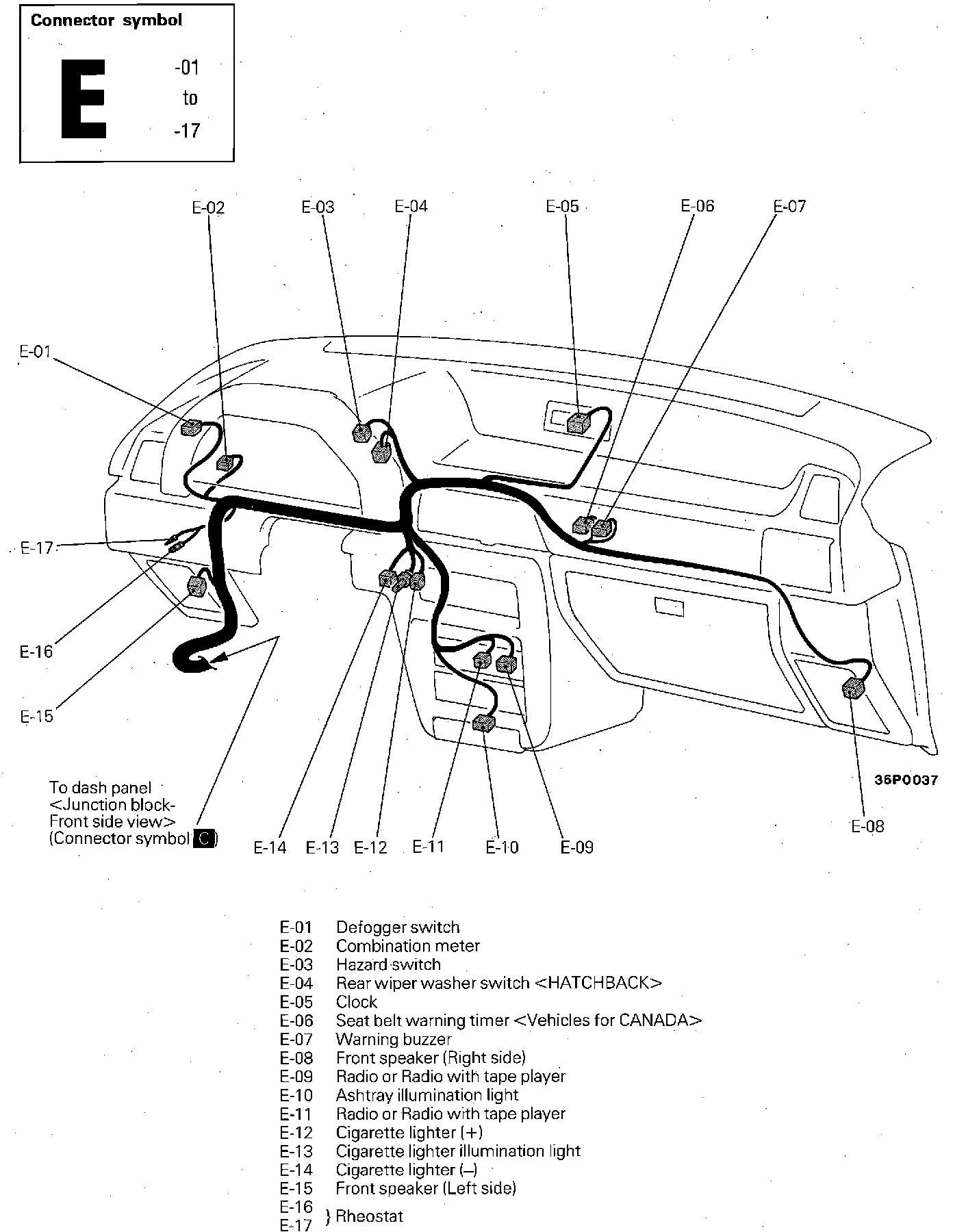

Connector Locations (Instrument Panel):
