Home
>>
Dodge
>>
1992
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

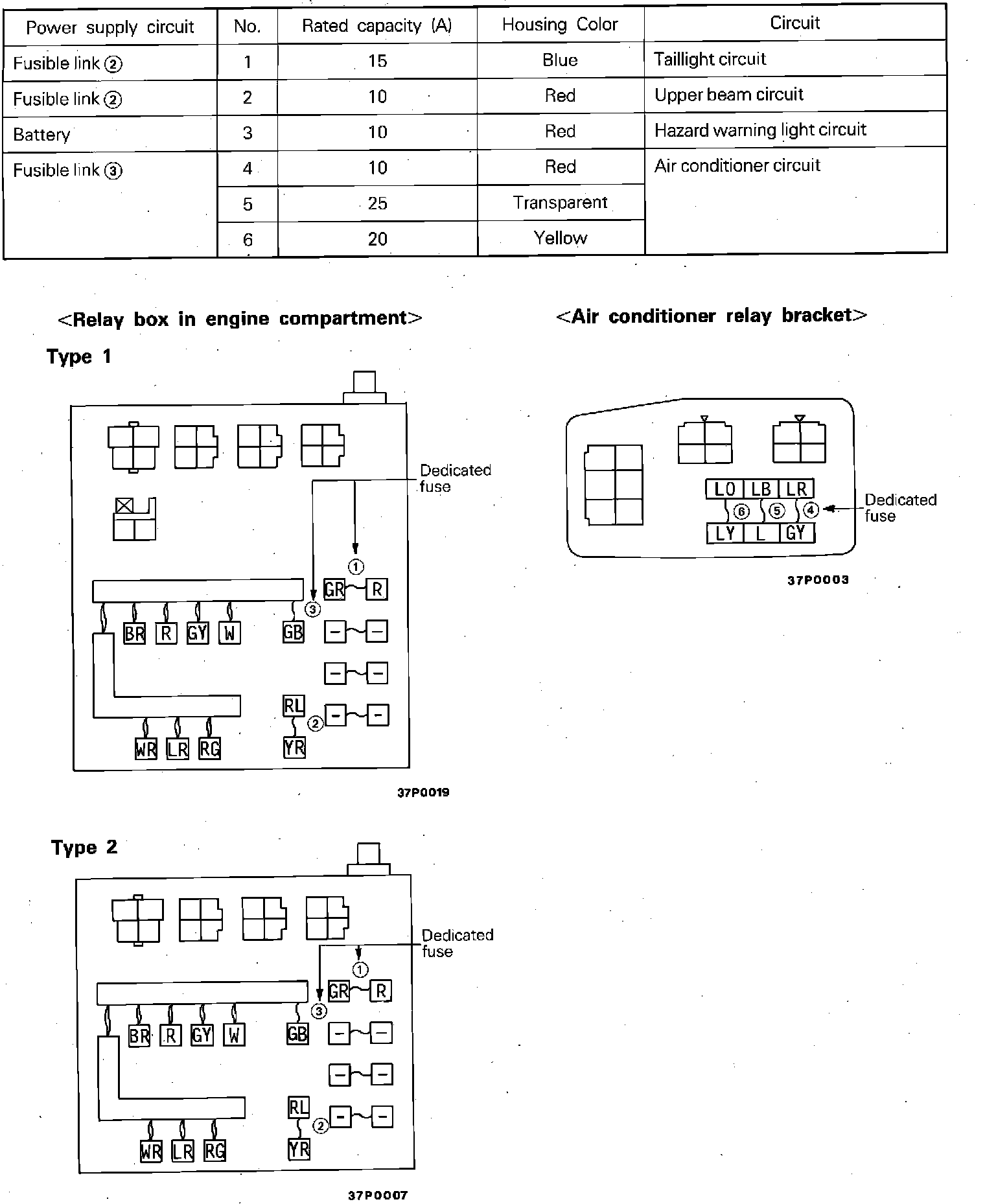

Relay Box
>>
Relay Block
Relay Block
Centralized Junction (Dedicated Fuse):
