Home
>>
Dodge
>>
1990
>>
Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 6 - Pump/Motor Fault
>>
Test 6D
Test 6D

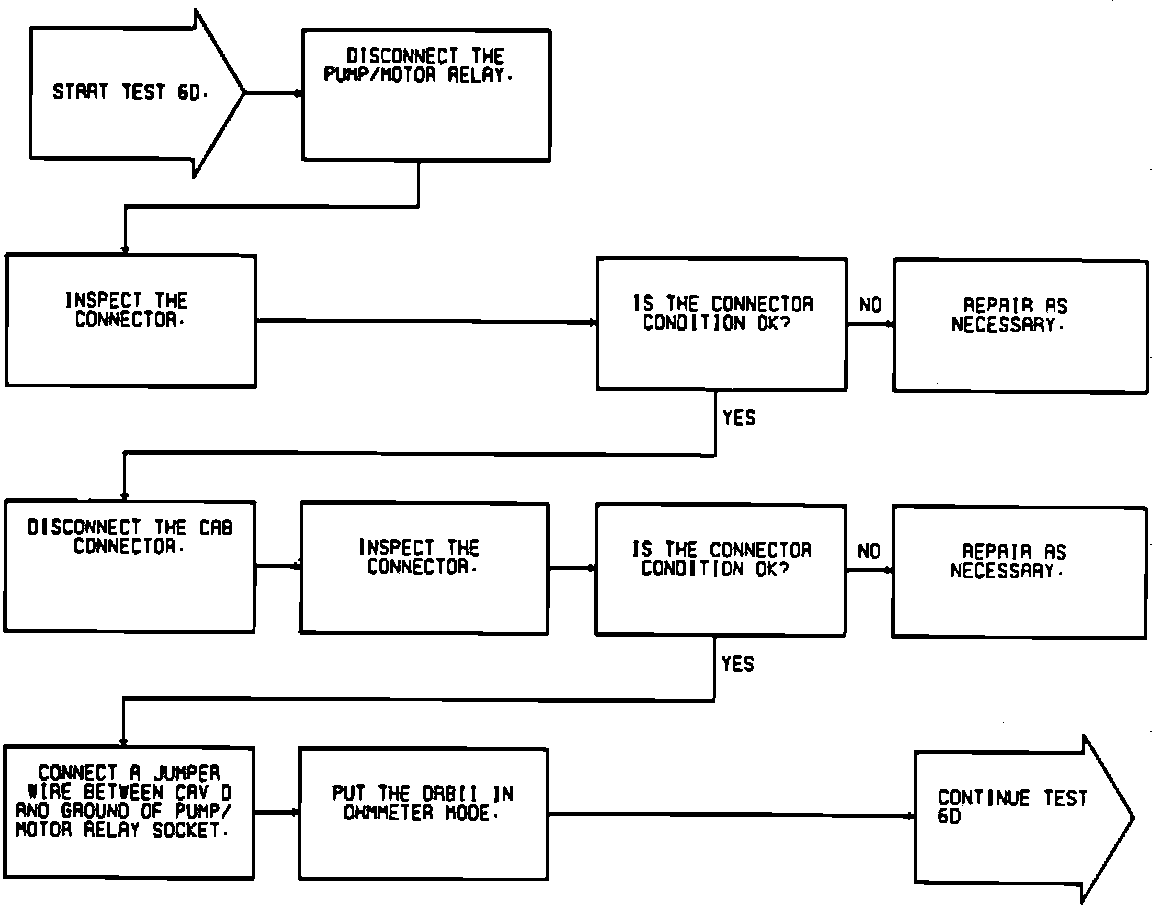

Fig. 20 Test 6D--Pump/Motor Fault (Part 1 Of 2):

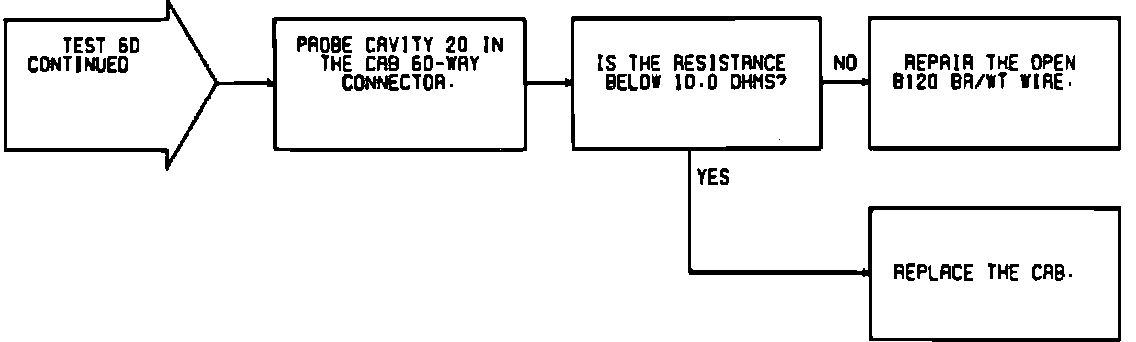

Fig. 20 Test 6D--Pump/Motor Fault (Part 2 Of 2):
