Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 5 - System Relay Fault
>>
Test 5A
Test 5A

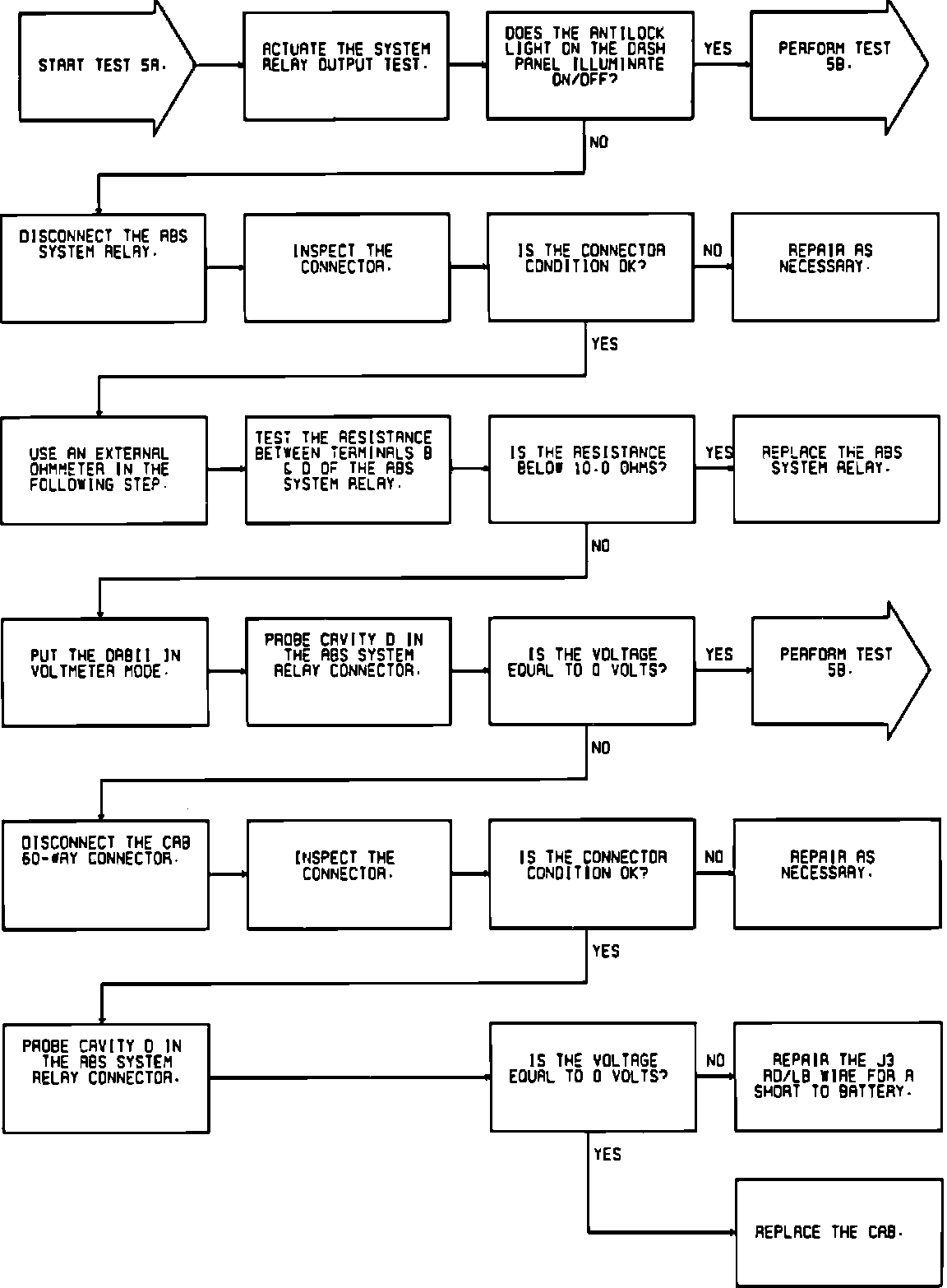

Fig. 15 Test 5A--System Relay Fault:
