Home >> Dodge >> 1990 >> Spirit L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 21 - System Relay Fault >> Test 21B

Test 21B

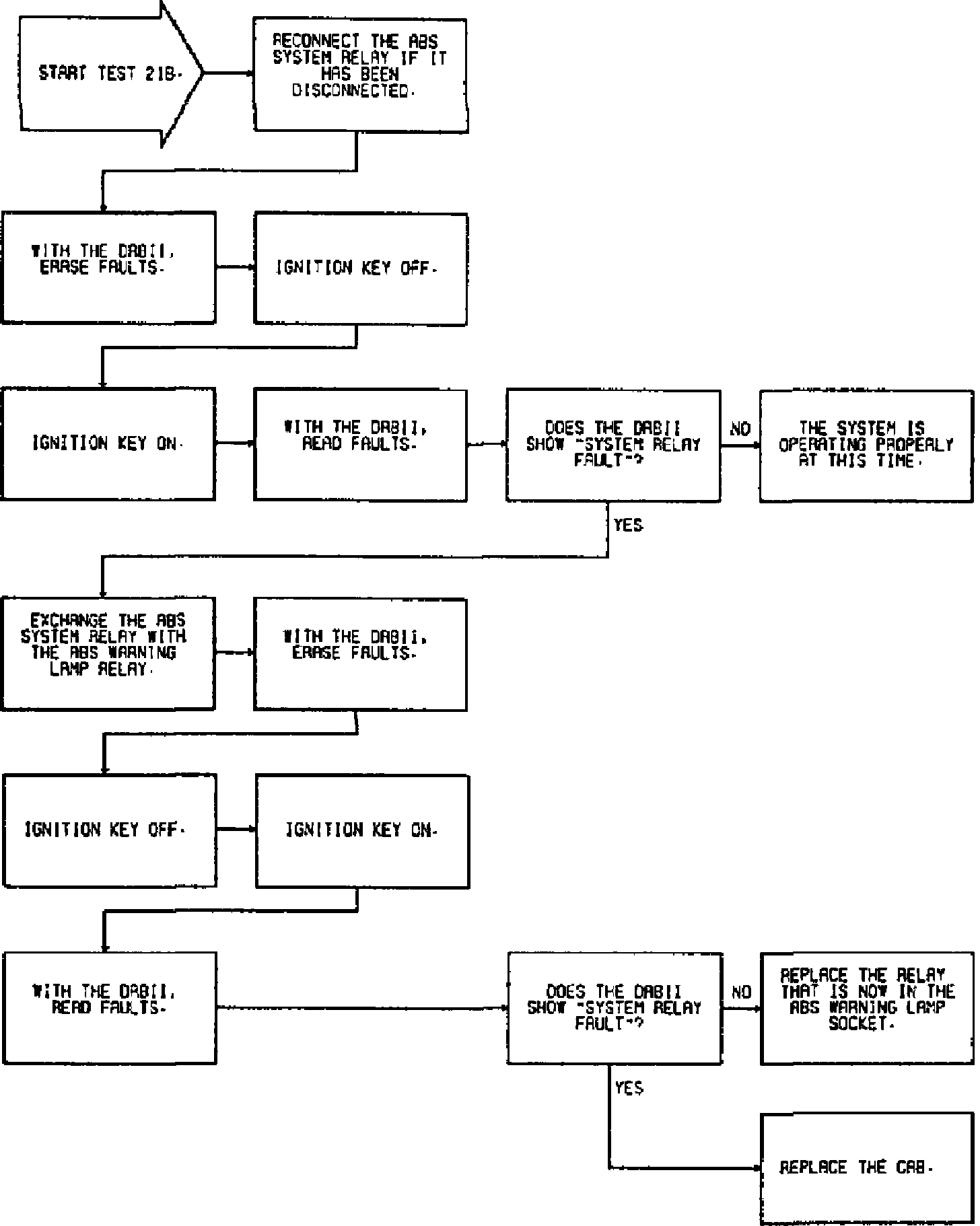

Fig. 76 Test 21B:
