Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 19A - Stop Lamp Switch Input Test
Test 19A - Stop Lamp Switch Input Test

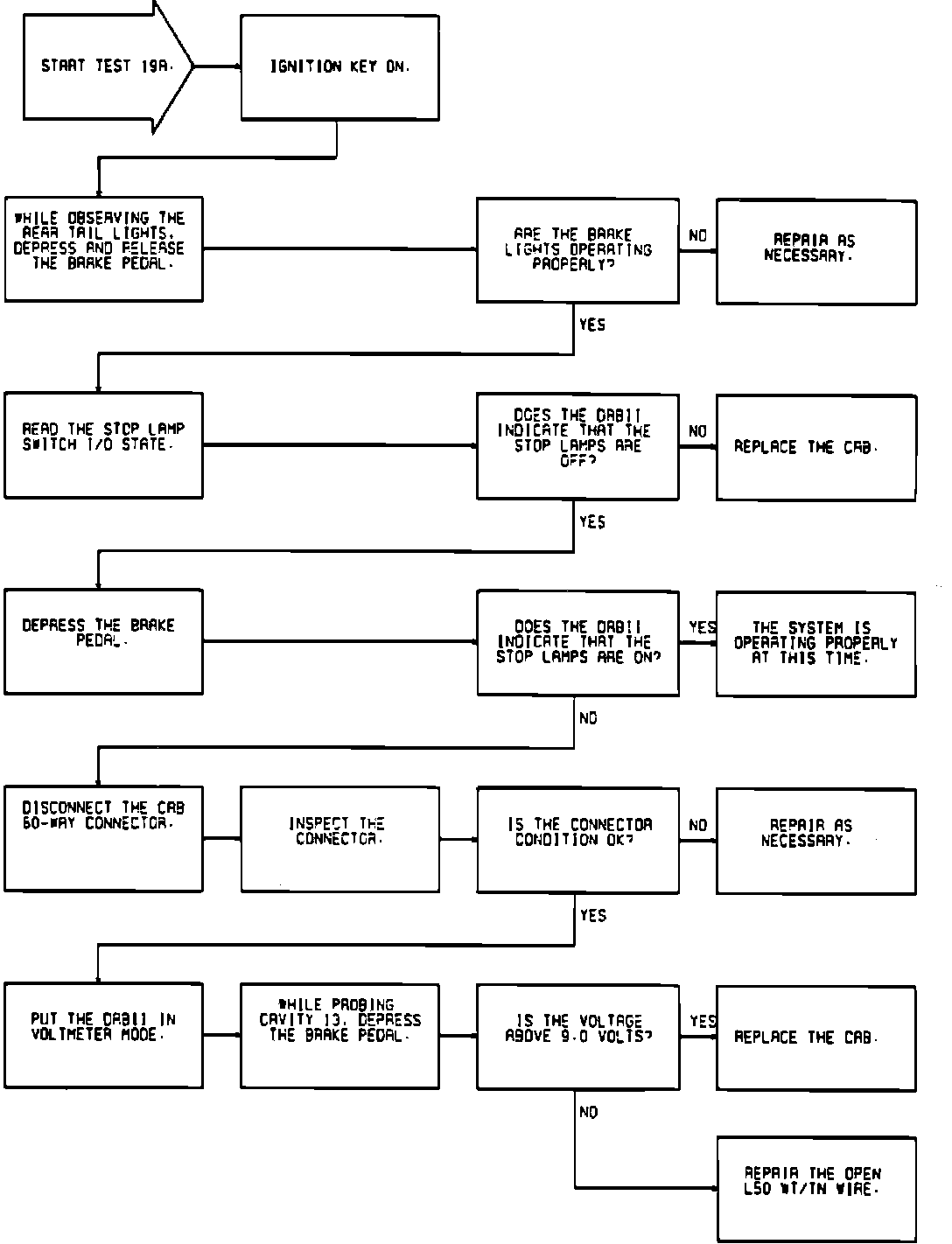

Fig. 37 Test 19A--Stop Lamp Switch Input Test:
