Test 18 - Red Brake Warning Lamp Input Test
>>
Test 18B
Test 18B

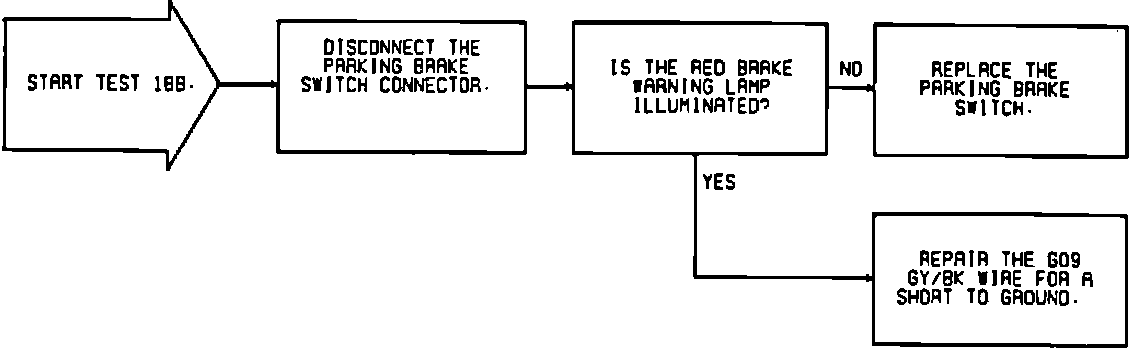

Fig. 36 Test 18B--Red Brake Warning Lamp Input Test:
