Test 18 - Red Brake Warning Lamp Input Test
>>
Test 18A
Test 18A

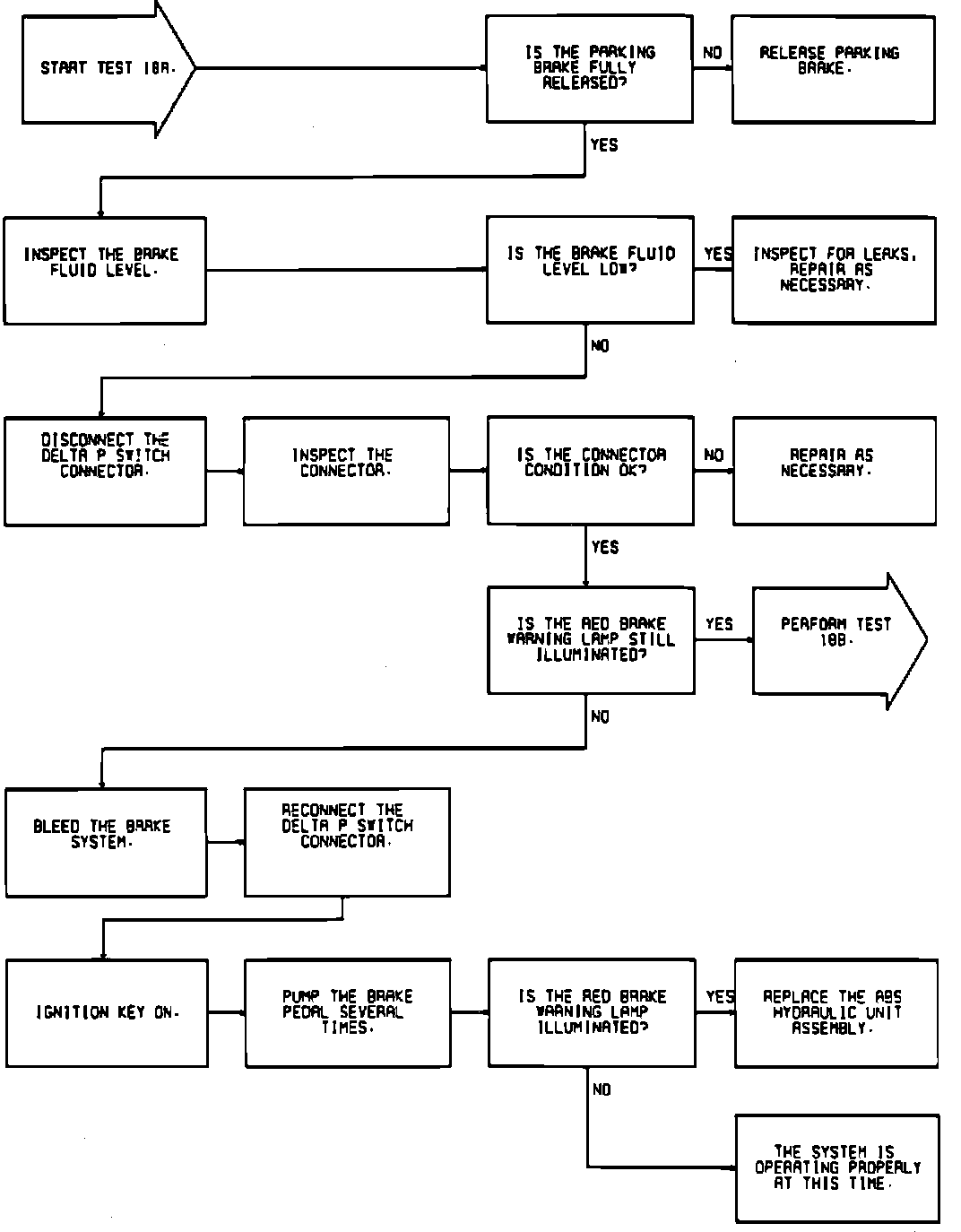

Fig. 35 Test 18A--Red Brake Warning Lamp Input Test:
