Antilock Brakes / Traction Control Systems
>>
Test 15 - Red Brake Warning Lamp Input Test
>>
Test 15B
Test 15B

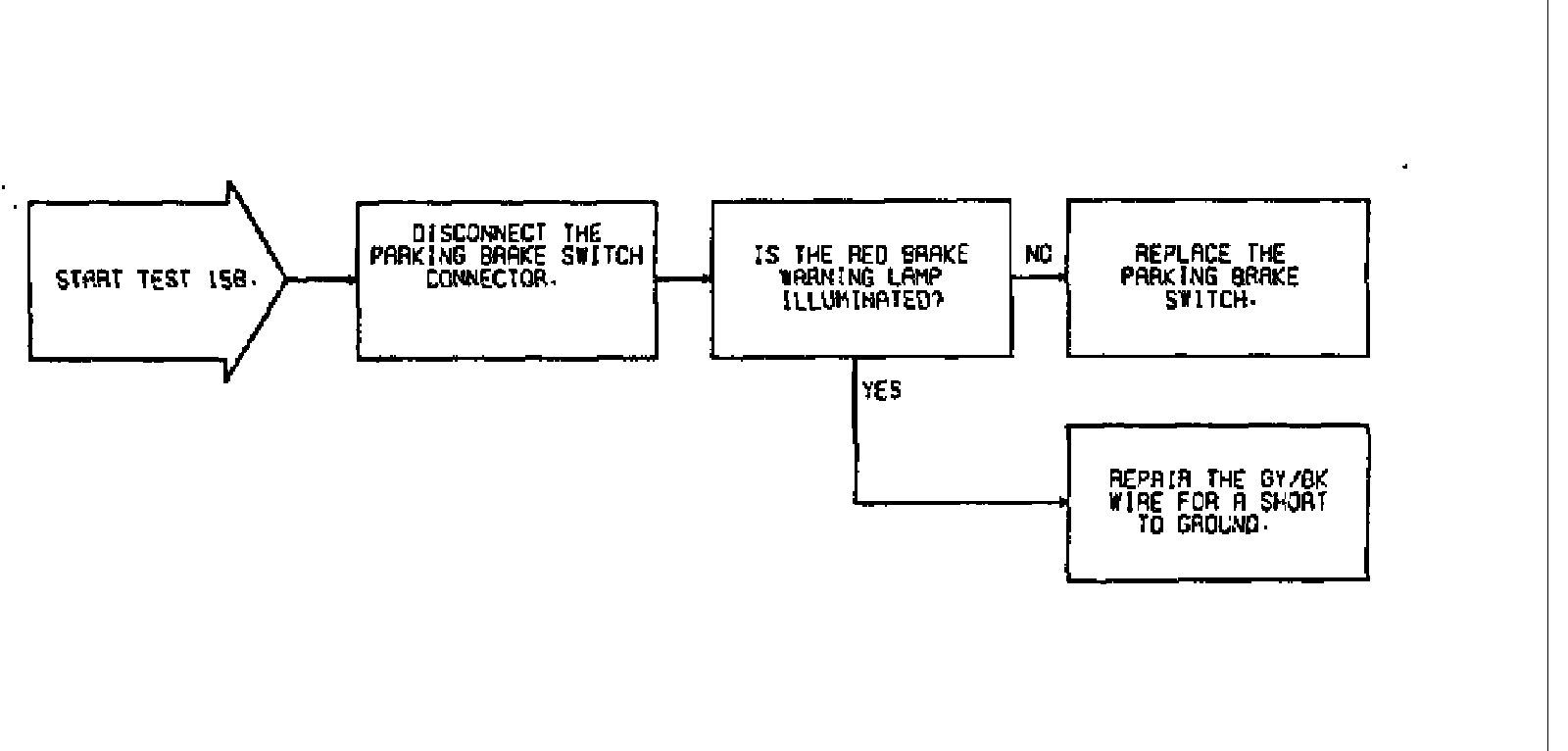

Fig. 66 Test 15B:
