Home >> Dodge >> 1990 >> Spirit L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 14 - Pump Motor Fault >> Test 14A

Test 14A

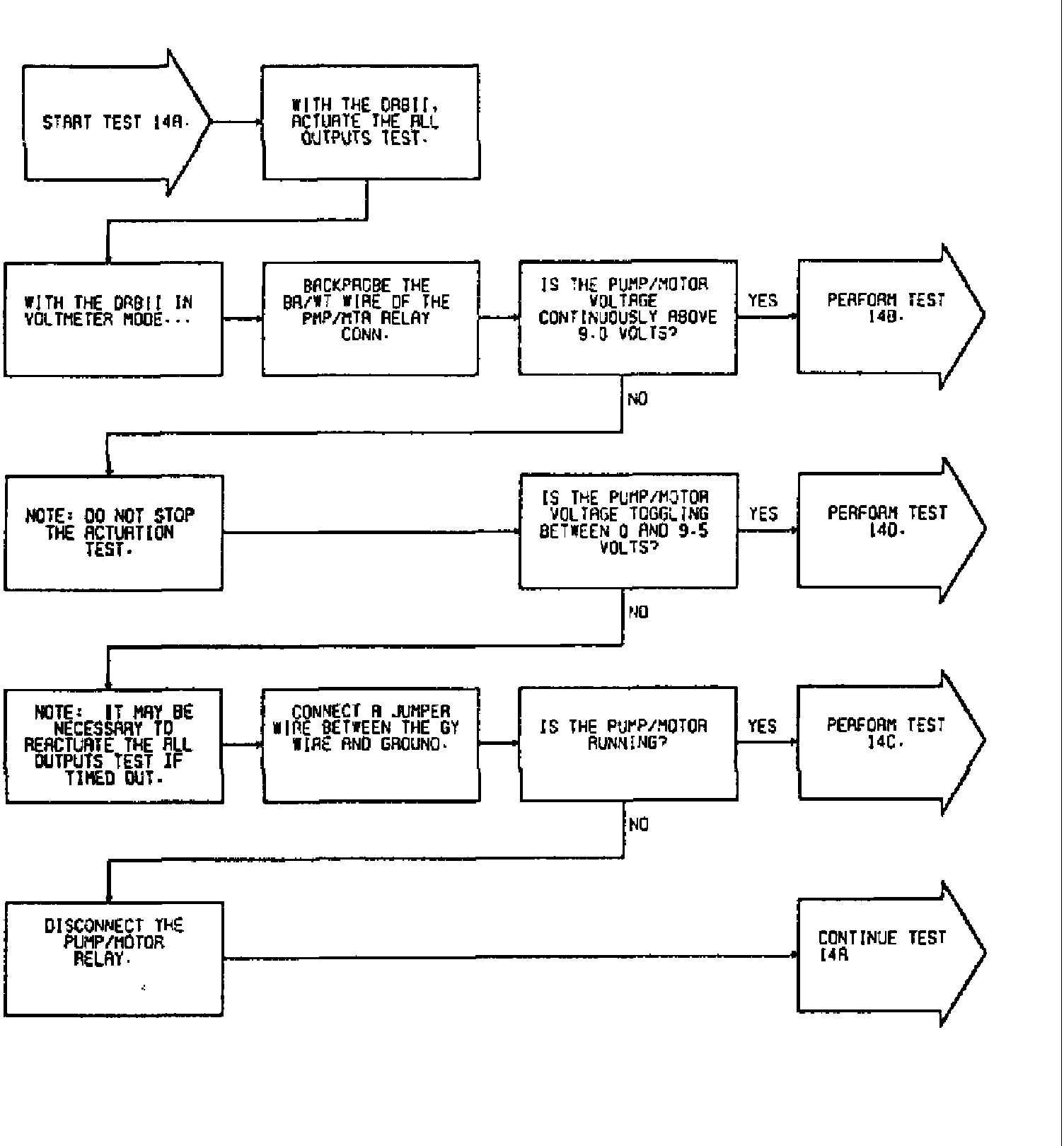

Fig. 61 Test 14A Part 1 Of 2:

Fig. 61 Test 14A Part 2 Of 2:
