Home >> Dodge >> 1990 >> Spirit L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 12 - Modulator Fault >> Test 12E

Test 12E

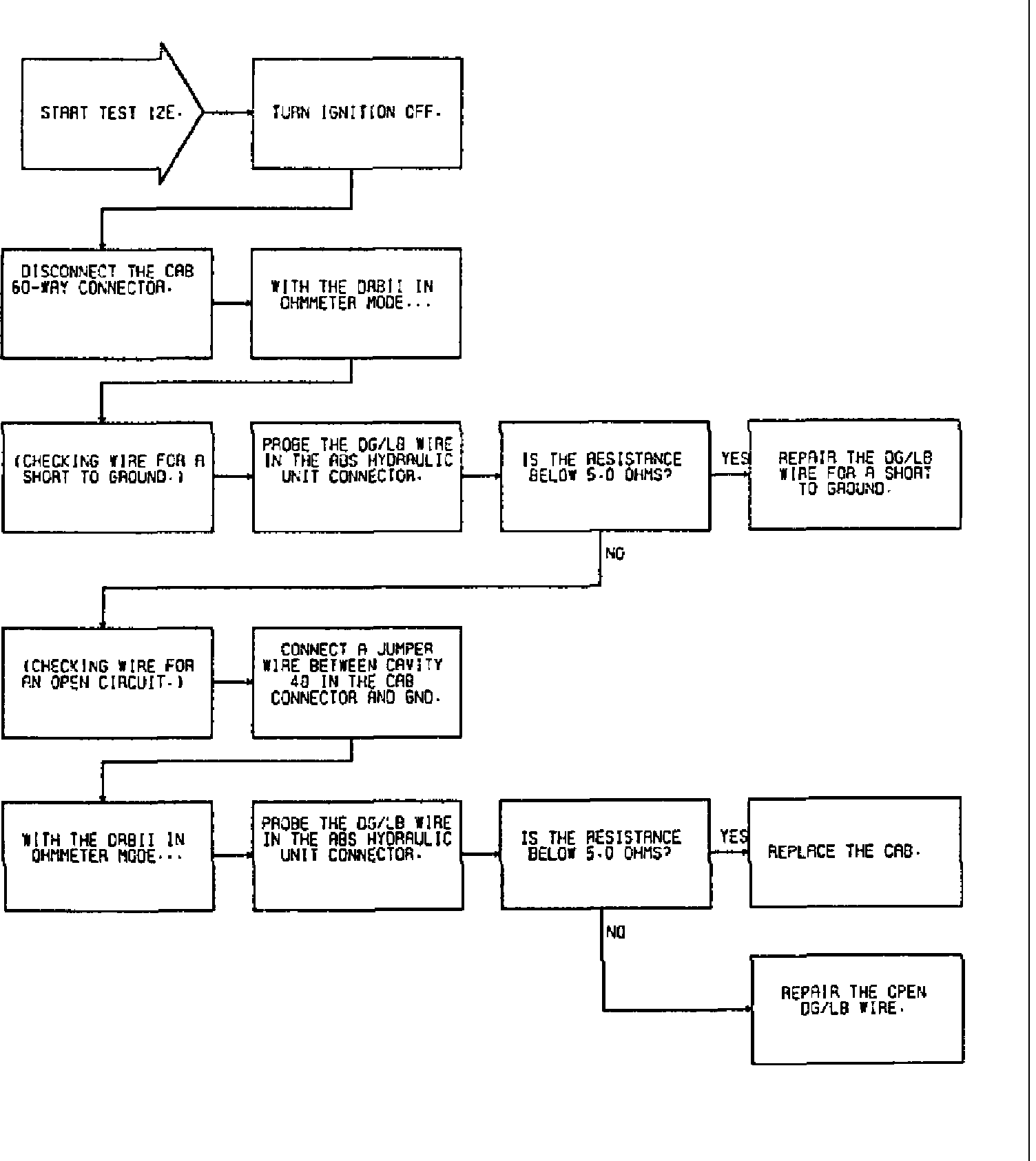

Fig. 56 Test 12E:
