Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1990
>>
Spirit L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 12 - Modulator Fault
>>
Test 12C
Test 12C

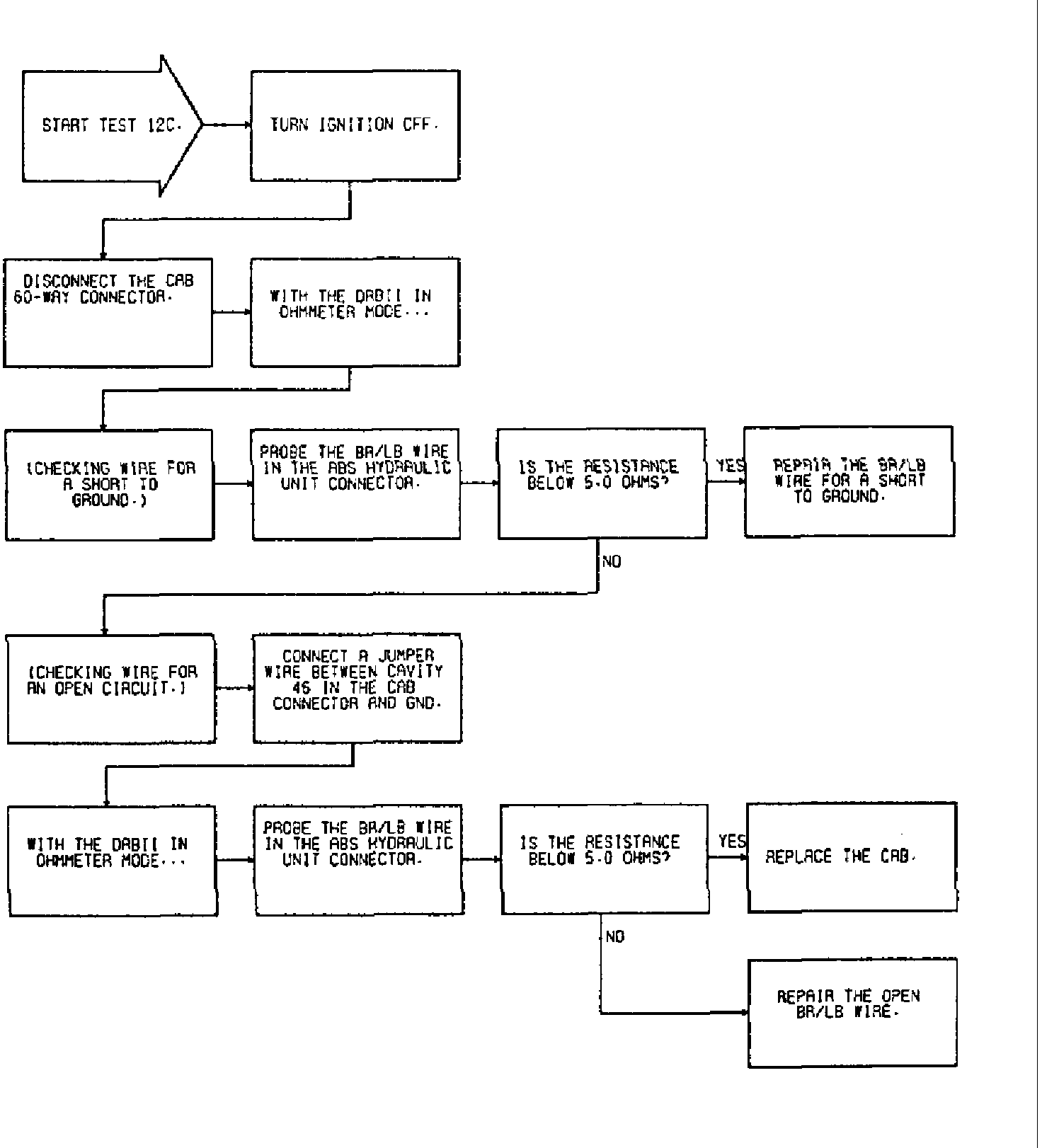

Fig. 54 Test 12C:
