Home >> Dodge >> 1990 >> Spirit L4-153 2.5L SOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Test 12 - Modulator Fault >> Test 12B

Test 12B

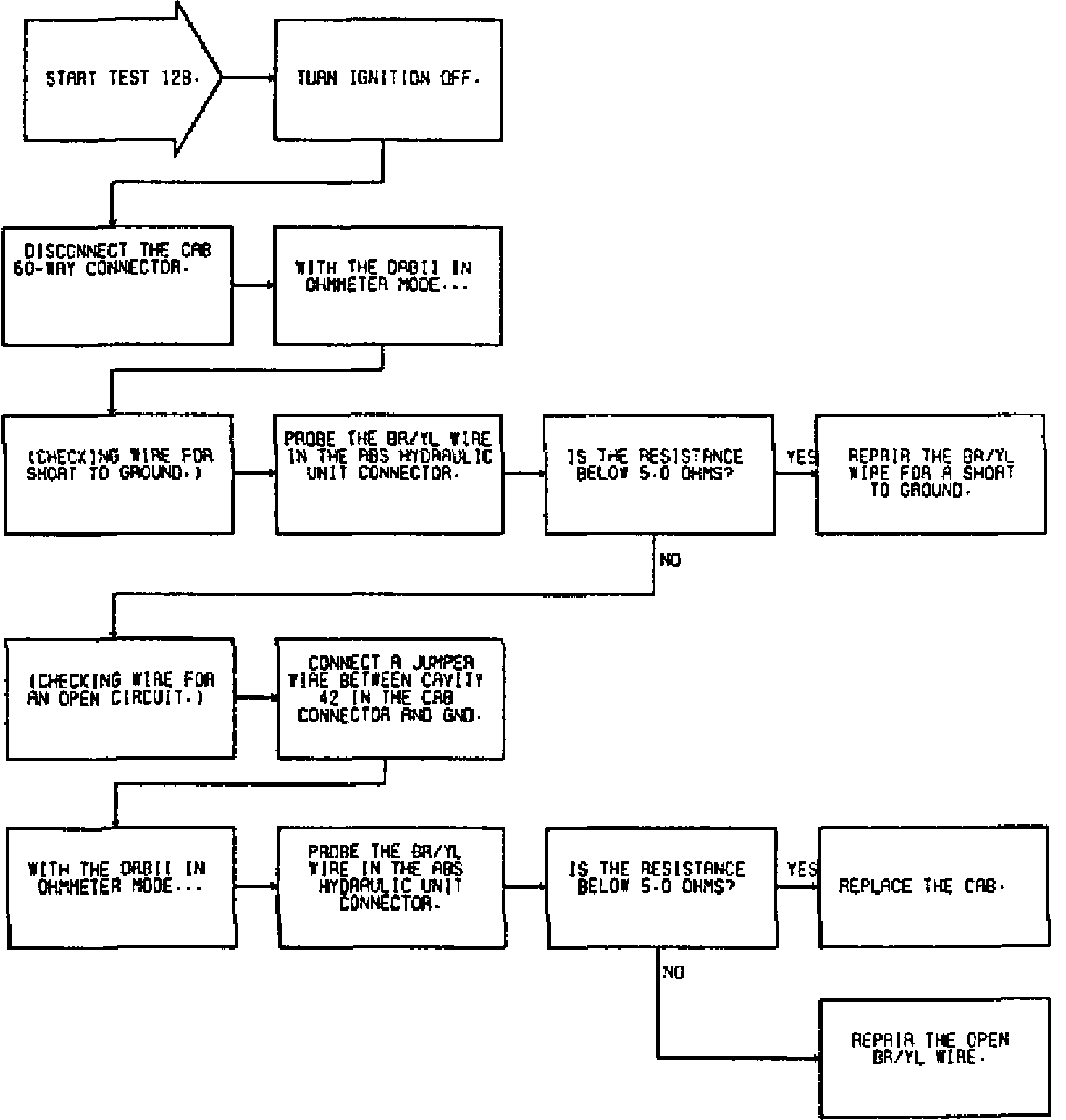

Fig. 53 Test 12B:
