Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
System Schematics
System Schematics

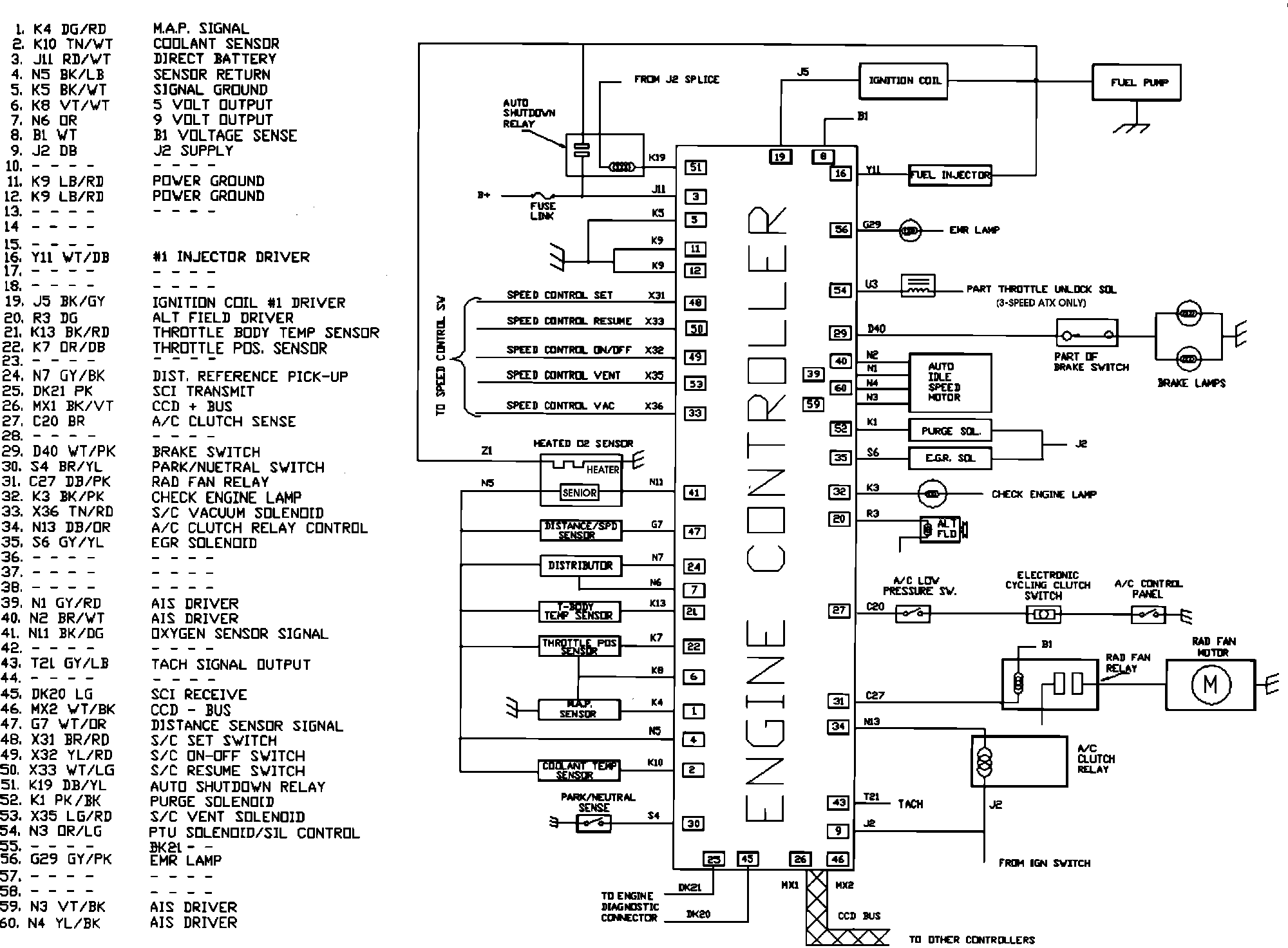

Engine Controller Circuit Identification:
