Home
>>
Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>

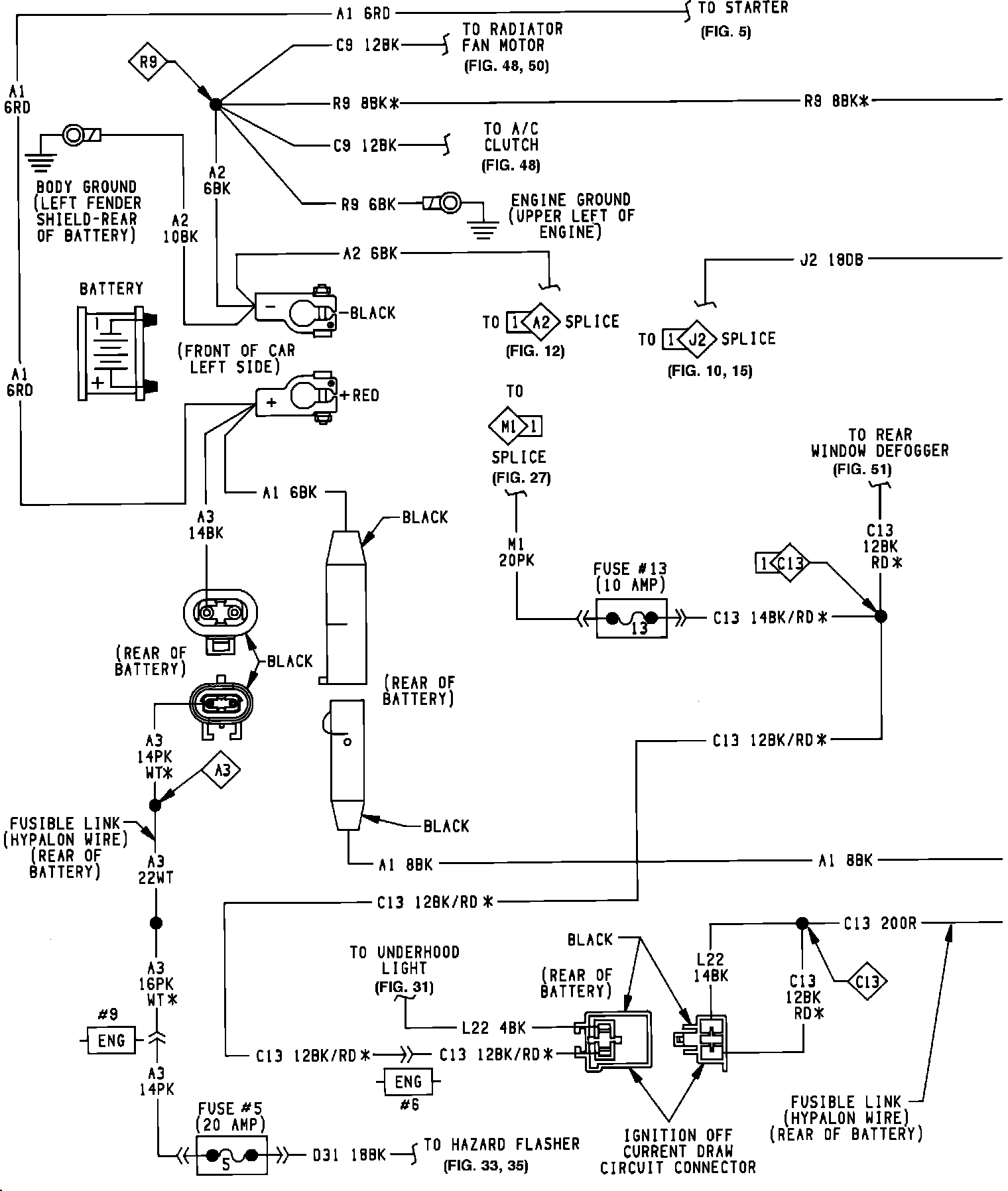

Power Distribution
Power Distribution

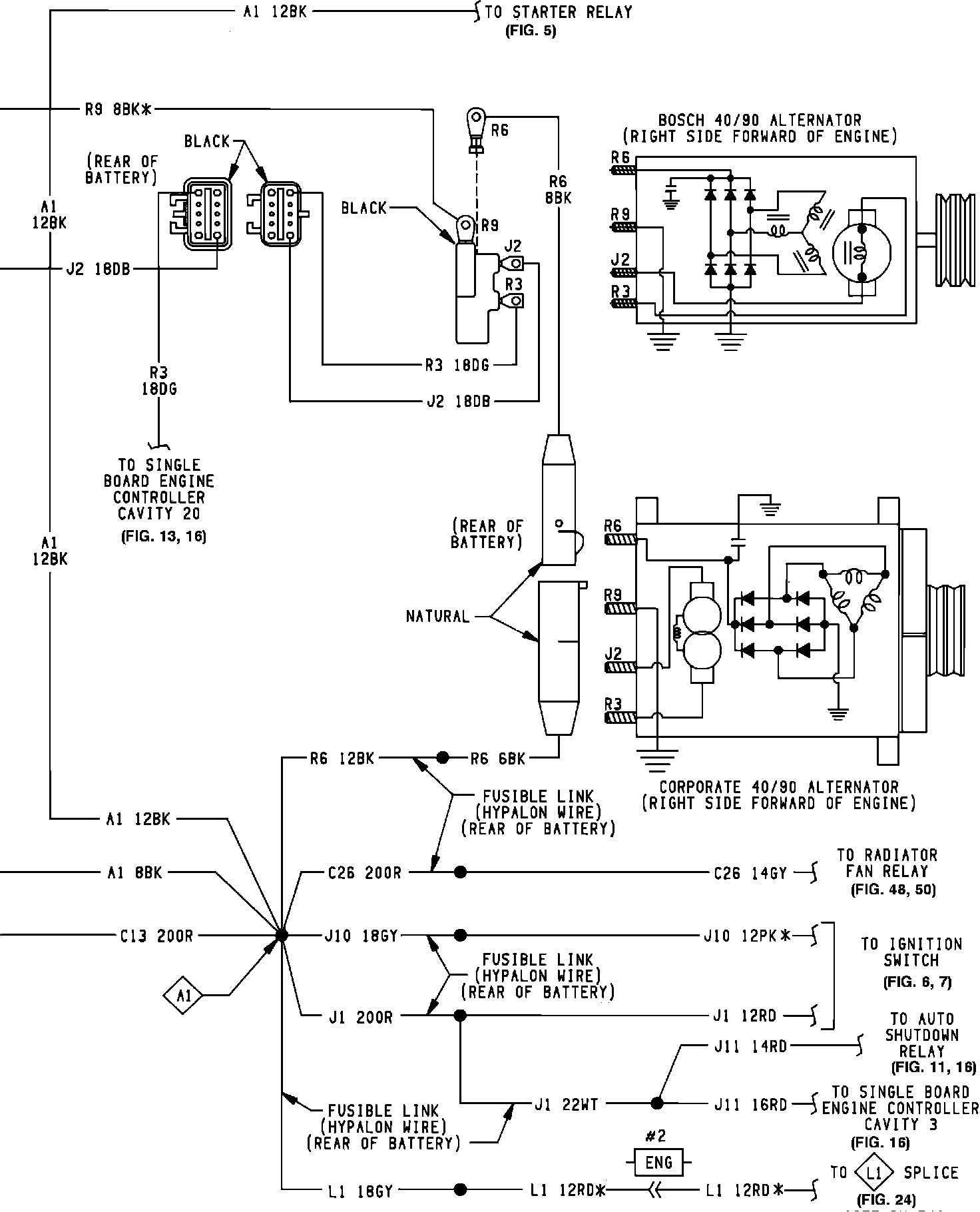

Charging System:
Charging System:
