Dodge
>>
1990
>>
Shadow L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Part 1 of 2
Part 1 of 2

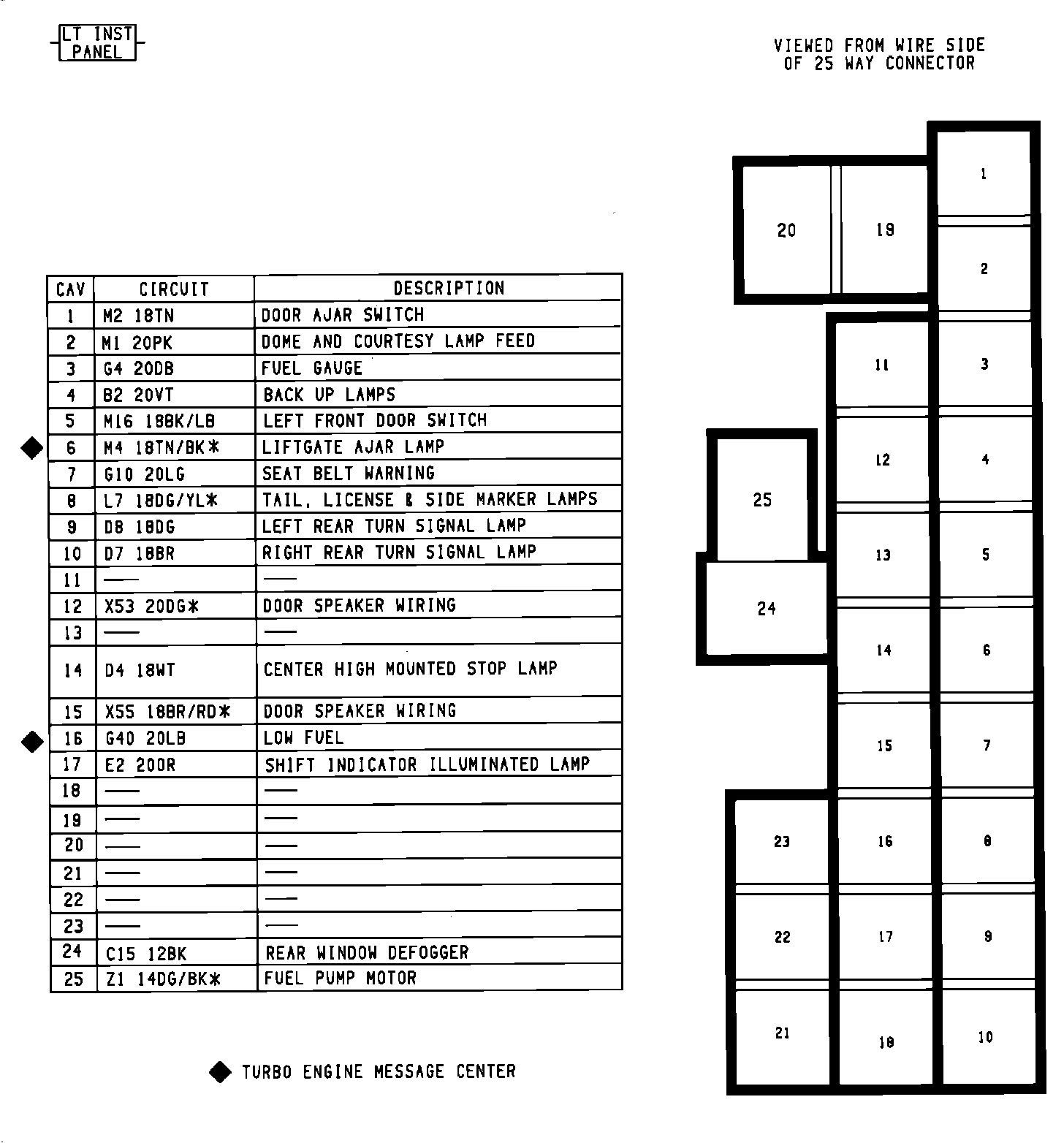

Body To Instrument Panel Connector:
